Toyota Tercel

1982-05 → 1988-01 · chassis AL2# · catalogue 131220 · Europe

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

18 part groups · 7 illustrations

Illustrations

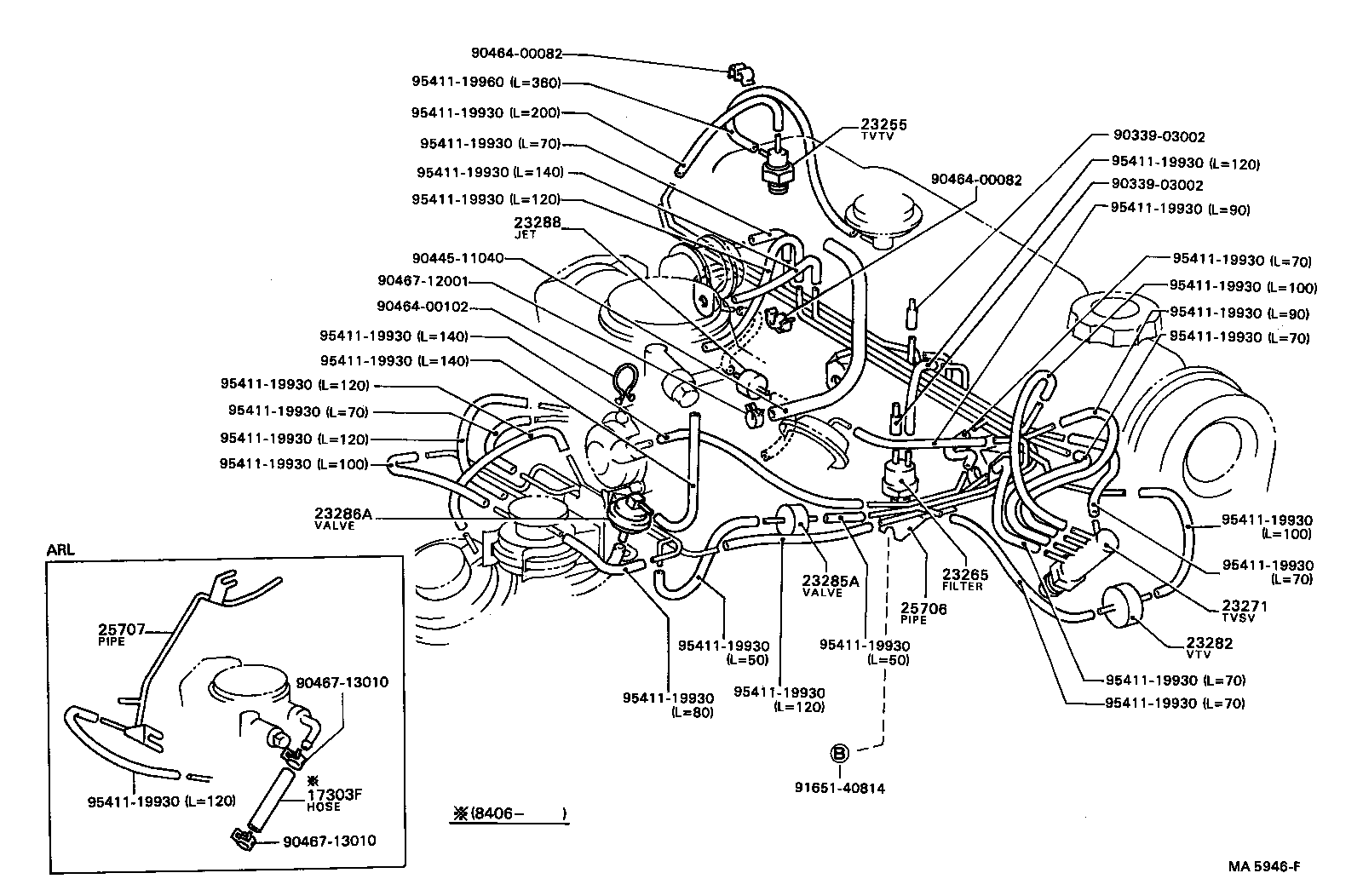

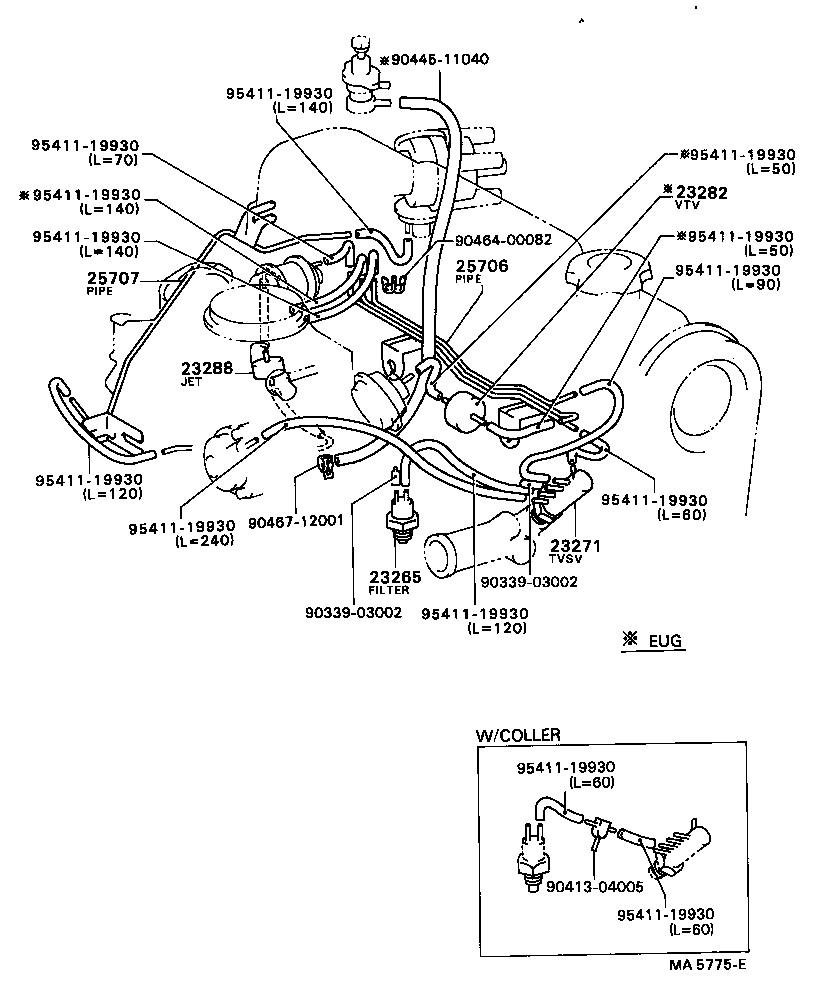

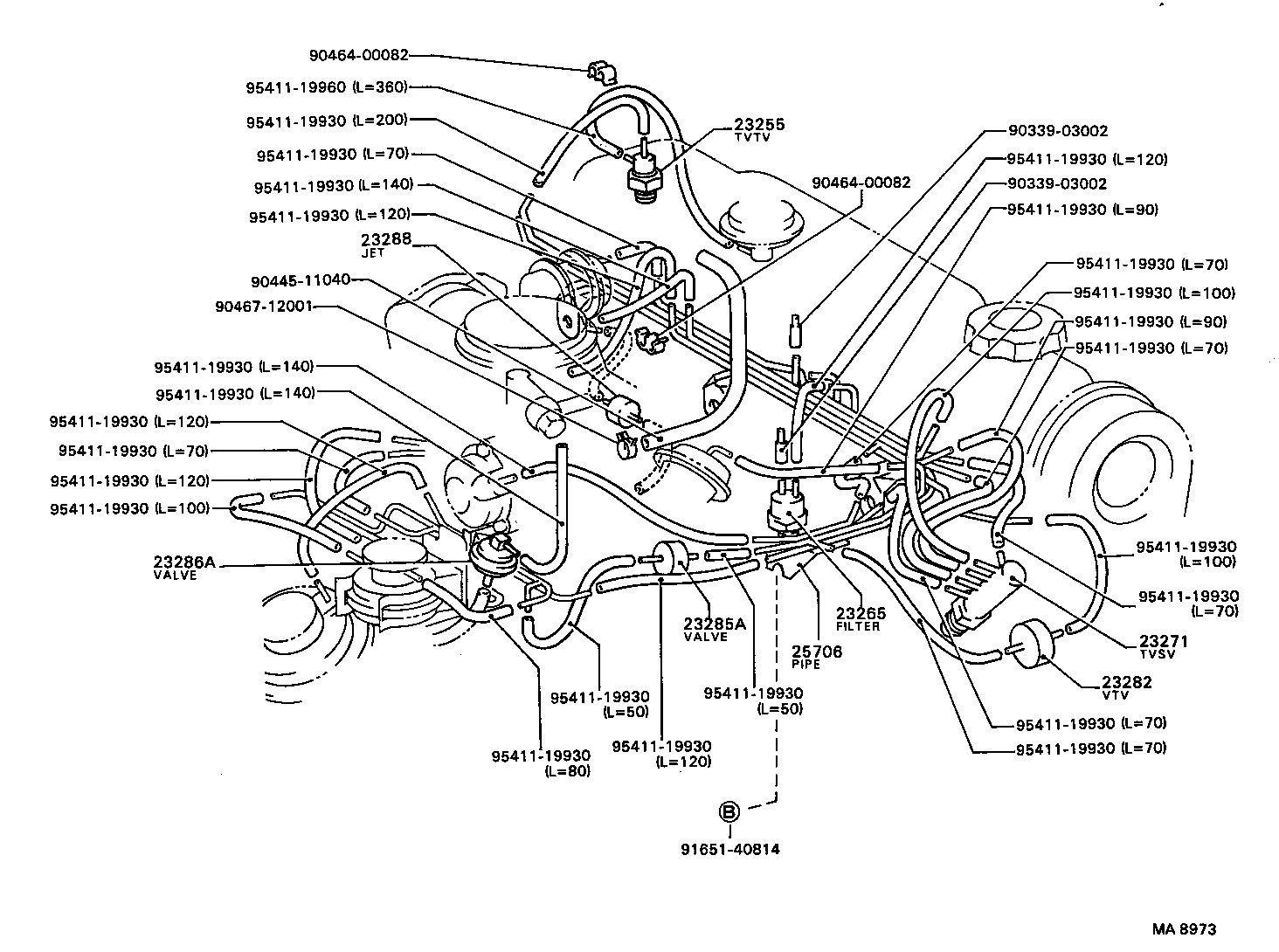

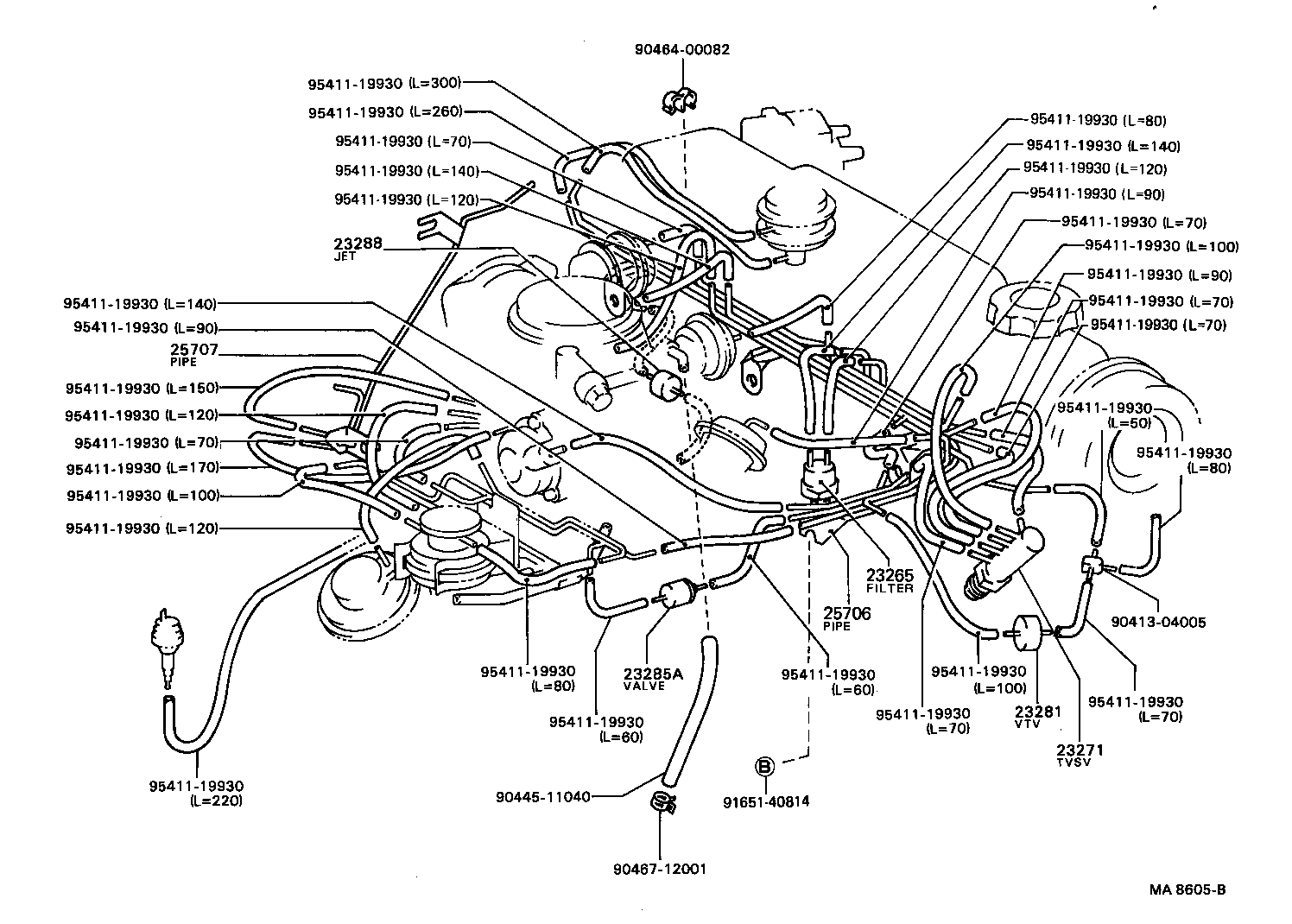

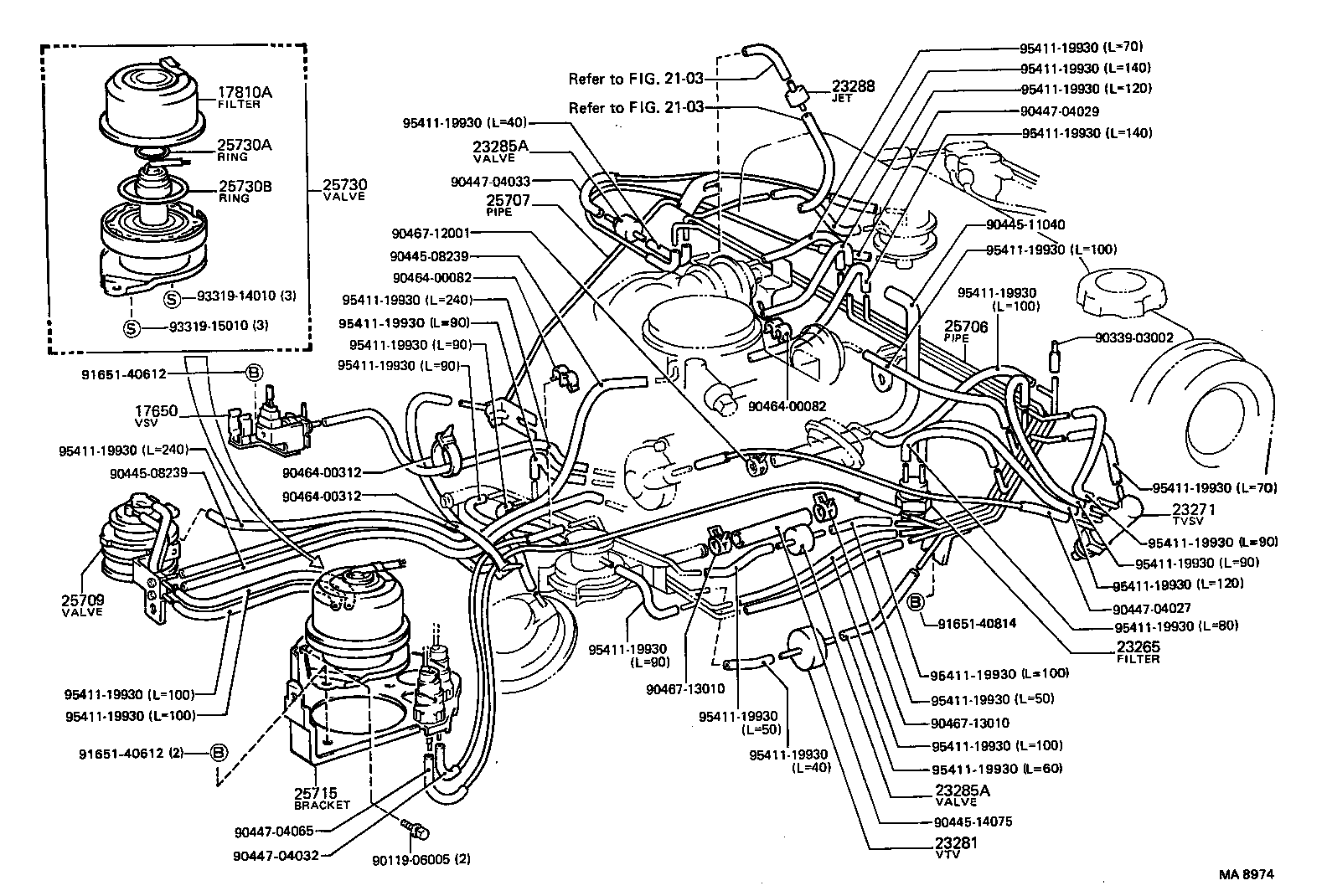

Figure MA9504A MA9504A 1982-05 → — Figure MA5775E MA5775E 1982-05 → — Figure MA5946F MA5946F 1982-09 → 1985-11 Figure MA5946F MA5946F 1985-11 → 1986-05 Figure MA8973 MA8973 1986-05 → — Figure MA8605B MA8605B 1985-11 → — Figure MA8974 MA8974 1986-05 → —

Part groups

PNCDescription
17303F Hose, NO.2(FOR AIR PIPE)
17650 Valve Assy, Vacuum Switching
17810A Filter Assy, Air
23255 Valve, Thermostatic Vacuum Transmitting, NO.1
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
23286A Valve, Check, NO.2
23288 Jet, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25709 Valve Sub-assy, High Altitude Compensator
25715 Bracket, Emission Control Valve
25730 Valve Assy, Electric Bleed Air Control
25730A Ring, O, NO.1(FOR ELECTRIC BLEED AIR CONTROL VALVE)
25730B Ring, O, NO.2(FOR ELECTRIC BLEED AIR CONTROL VALVE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
