Toyota Tercel
1982-05 → 1988-01 · chassis AL2# · catalogue 131220 · Europe
Discontinued model
Data version 1988-05

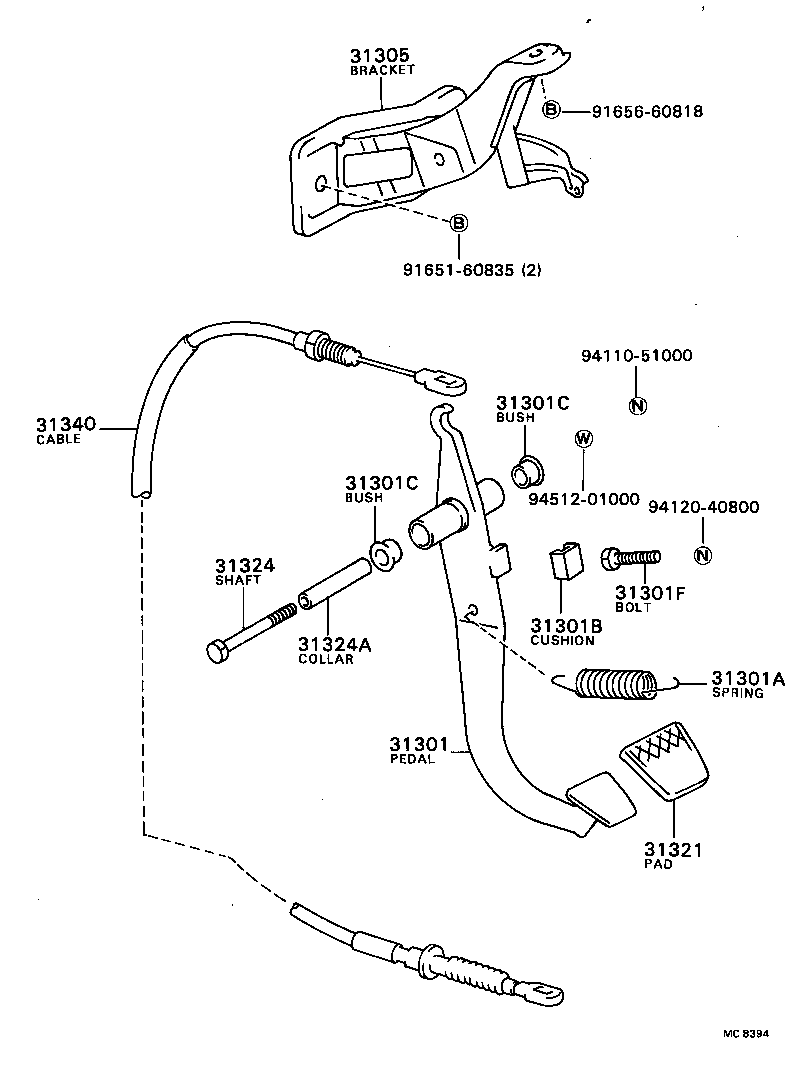

Clutch Pedal & Flexible Hose
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31301 | Pedal Sub-assy, Clutch |
| 31301A | Spring(FOR CLUTCH PEDAL) |
| 31301B | Cushion, NO.1(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31301F | Bolt(FOR CLUTCH PEDAL STOPPER) |
| 31305 | Bracket Sub-assy, Clutch Pedal |
| 31321 | Pad, Clutch Pedal |
| 31324 | Shaft, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |
| 31340 | Cable Assy, Clutch Release |
| 31349 | Insulator, Clutch Cable Heat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
