Toyota Tercel
1982-05 → 1988-01 · chassis AL2# · catalogue 131220 · Europe
Discontinued model
Data version 1988-05

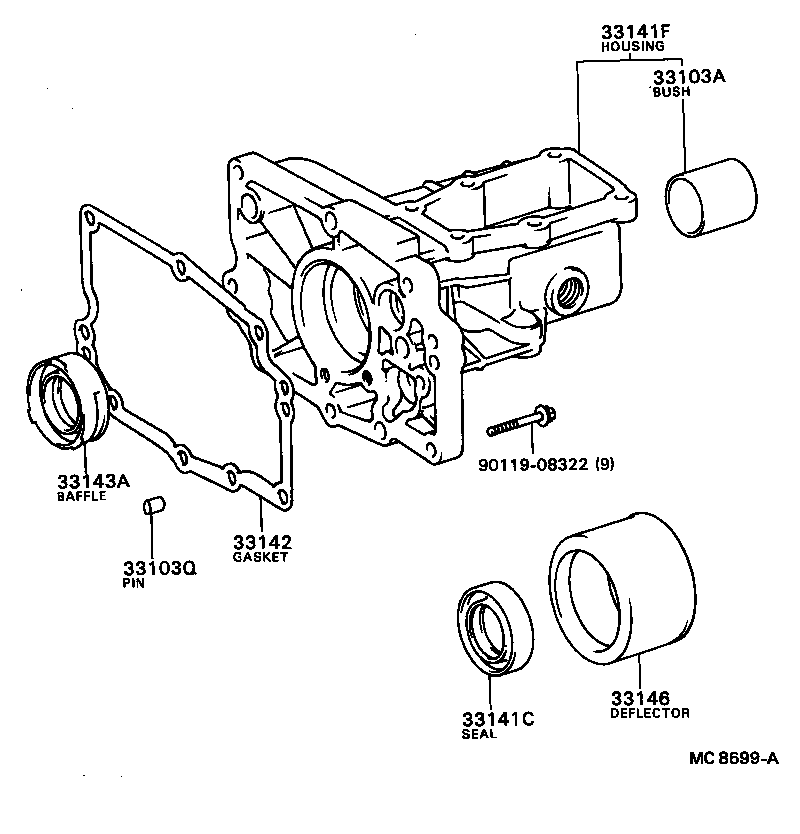

Extension Housing (MTM)
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33103A | Bush(FOR MANUAL TRANSMISSION EXTENSION HOUSING) |
| 33103Q | Pin, Ring(FOR EXTENSION HOUSING) |
| 33141C | Seal, Oil(FOR EXTENSION HOUSING REAR) |
| 33141F | Housing, Extension(MTM) |
| 33142 | Gasket, Extension Housing(MTM) |
| 33143A | Baffle, Extension Housing Oil(MTM) |
| 33146 | Deflector, Extension Housing Dust(MTM) |
| 33283H | Plug, W/Head Straight Screw |
| 33507F | Bracket Sub-assy, Shift Lever Housing |
| 33507G | Bush (FOR CONTROL LEVER HOUSING SUPPORT BRACKET) |
| 33507H | Collar (FOR CONTROL LEVER HOUSING SUPPORT BRACKET) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
