Toyota Tercel
1982-05 → 1988-01 · chassis AL2# · catalogue 131220 · Europe
Discontinued model
Data version 1988-05

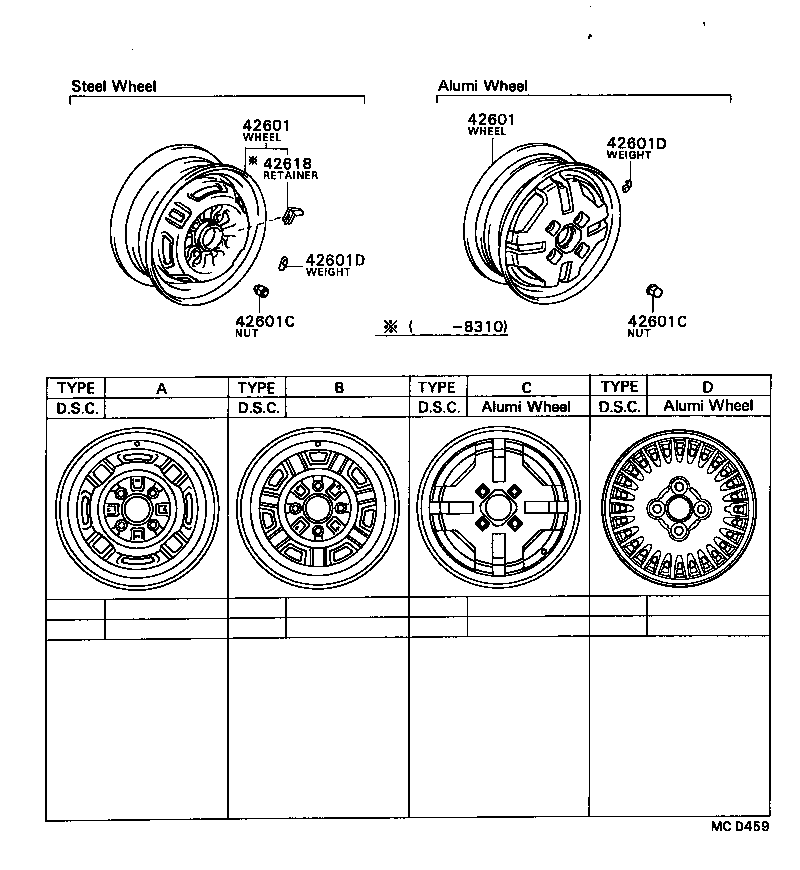

Disc Wheel & Wheel Cap
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 42601 | Wheel, Disc |
| 42601C | Nut, Hub (FOR AXLE) |
| 42601D | Weight, Balance (FOR DISC WHEEL) |
| 42603 | Ornament Sub-assy, Wheel Hub |
| 42611A | Tire Tube Set OR Tubeless Tire |
| 42611G | Valve (FOR TUBELESS TIRE) |
| 42618 | Retainer, Wheel Cap |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
