Toyota Tercel

1982-05 → 1988-01 · chassis AL2# · catalogue 131220 · Europe

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

12 part groups · 4 illustrations

Illustrations

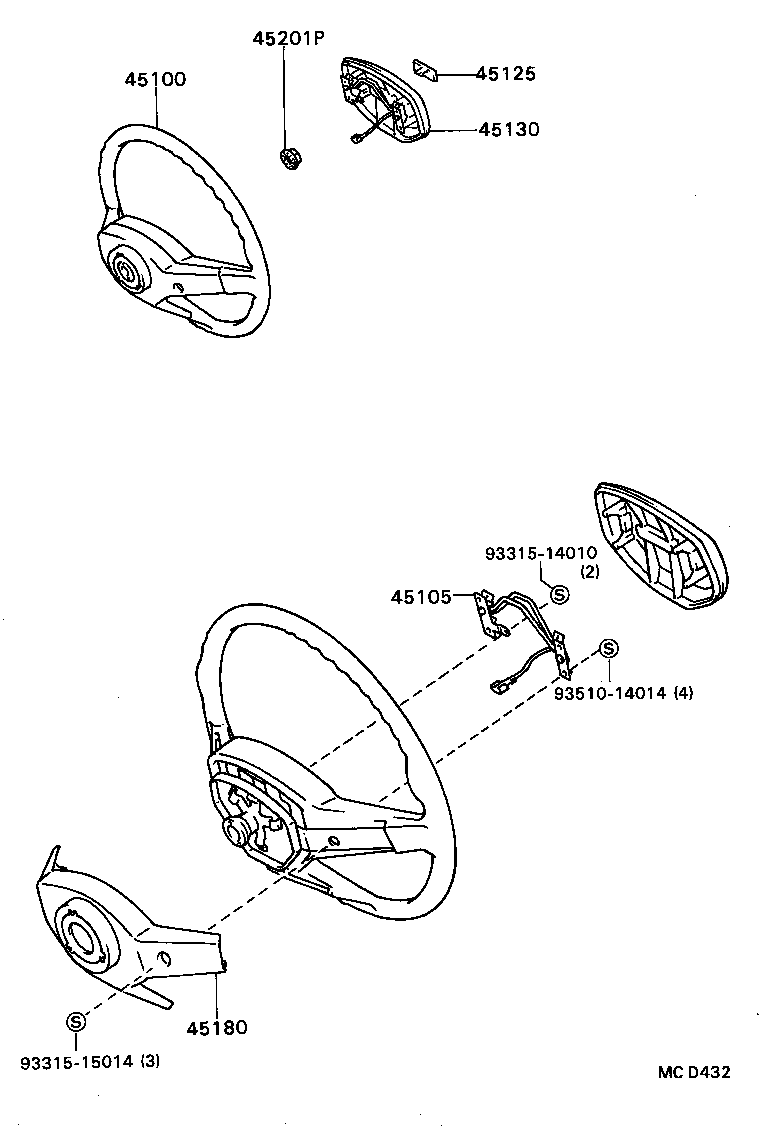

Figure MC8439B MC8439B 1982-05 → 1984-08 Figure MC8440B MC8440B 1982-05 → 1984-08 Figure MCB485A MCB485A 1984-08 → 1986-05 Figure MCD432 MCD432 1986-05 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45125 Mark, Steering Wheel Pad
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45136A Cord(FOR HORN CONTACT RING)
45146 Spring, Horn Button Contact
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
