Toyota Tercel

1982-05 → 1988-01 · chassis AL2# · catalogue 131220 · Europe

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

25 part groups · 2 illustrations

Illustrations

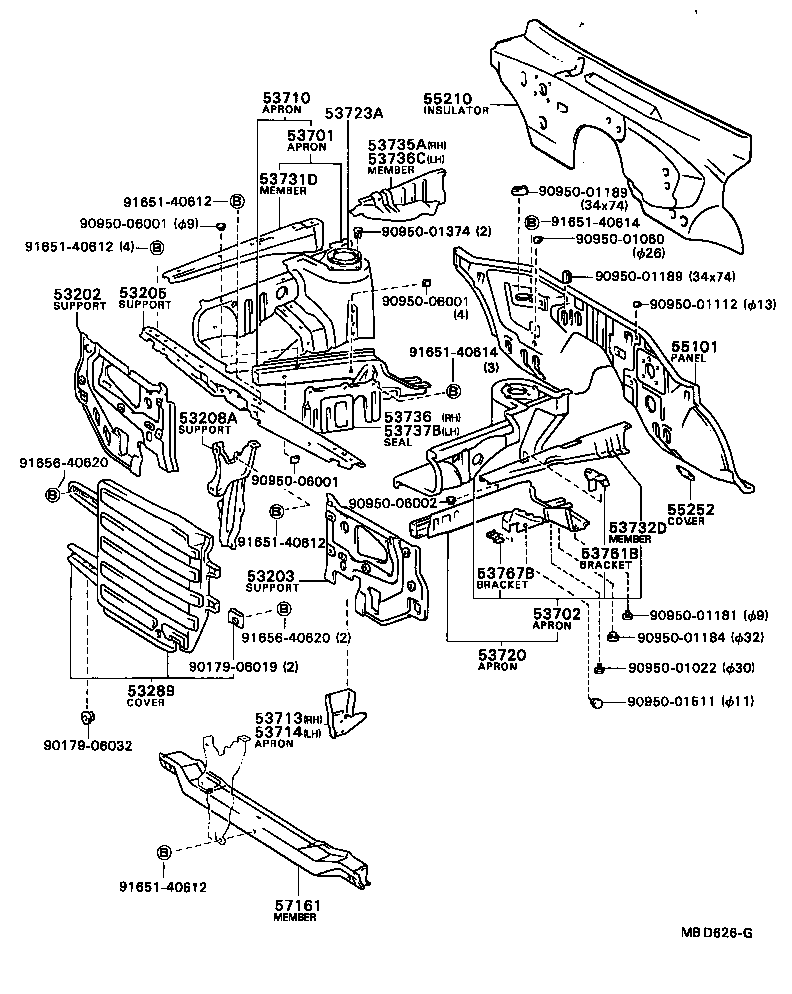

Figure MBH857F MBH857F 1982-05 → — Figure MBD626G MBD626G 1982-05 → —

Part groups

PNCDescription
53202 Support Sub-assy, Radiator, RH
53203 Support Sub-assy, Radiator, LH
53205 Support Sub-assy, Radiator, Upper
53208A Support Sub-assy, Hood Lock
53289 Cover, Radiator Side Baffle
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
53710 Apron Assy, W/Front Side Member, RH
53713 Apron, Fender Side, RH
53714 Apron, Fender Side, LH
53720 Apron Assy, W/Front Side Member, LH
53723A Reinforcement, Front Spring Support, RH
53731D Member, Front Apron TO Cowl Side, Upper RH
53732D Member, Front Apron TO Cowl Side, Upper LH
53735A Member, Front Apron TO Cowl Side, Lower RH
53736 Seal, Front Fender Apron, RH
53736C Member, Front Apron TO Cowl Side, Lower LH
53737B Seal, Front Fender Apron, LH
53761B Bracket, Battery Clamp Mounting
53767B Bracket, Battery Wirring Harness
55101 Panel Sub-assy, Dash
55126 Reinforcement, Clutch Wire Support
55210 Insulator Assy, Dash Panel
55252 Cover, Dash Panel Hole
57161 Crossmember, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
