Toyota Tercel

1982-05 → 1988-01 · chassis AL2# · catalogue 131220 · Europe

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

26 part groups · 2 illustrations

Illustrations

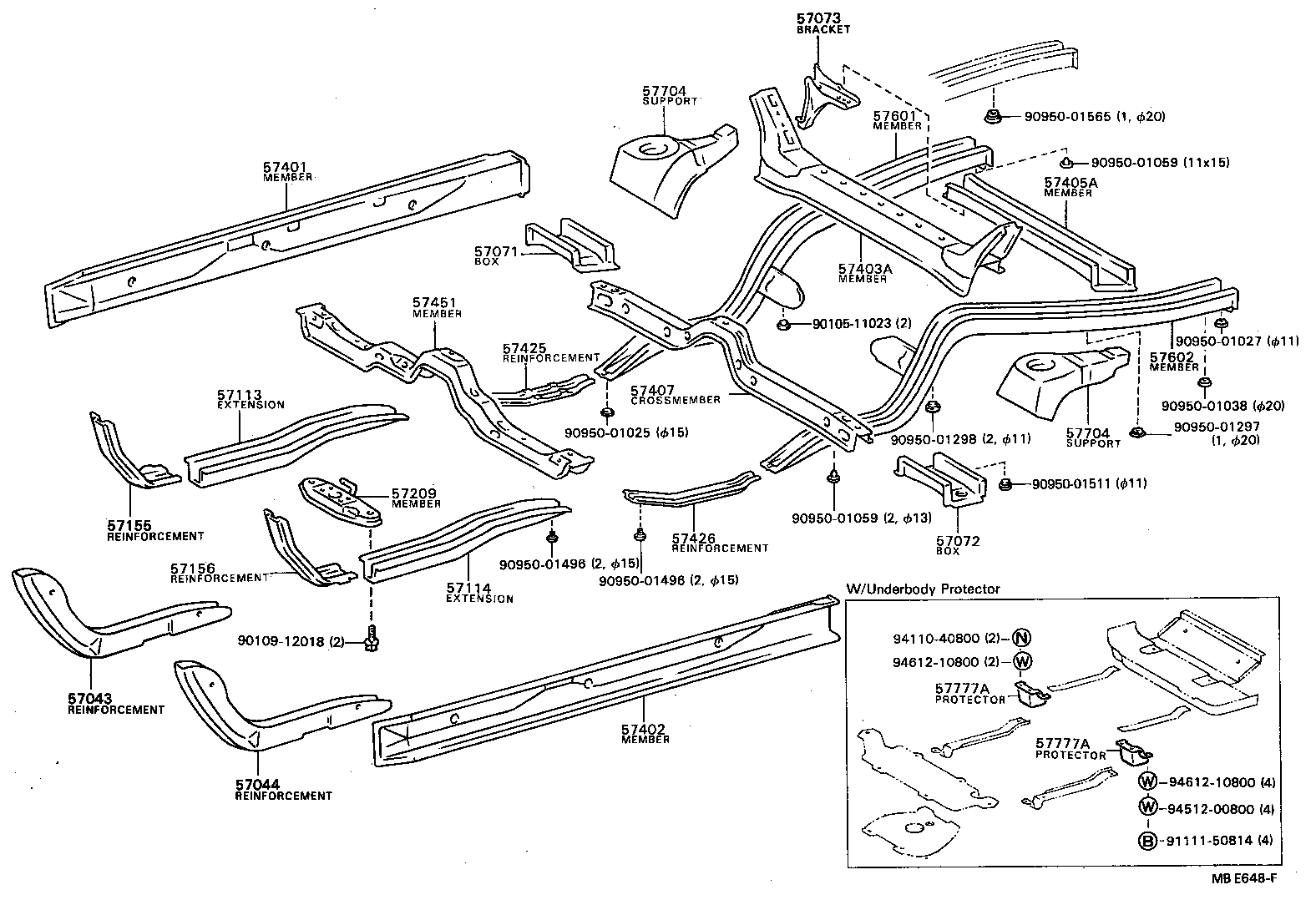

Figure MBF510A MBF510A 1982-05 → 1984-08 Figure MBE648F MBE648F 1982-08 → —

Part groups

PNCDescription
57043 Reinforcement Sub-assy, Front Side Member, Rear RH
57044 Reinforcement Sub-assy, Front Side Member, Rear LH
57071 Box Sub-assy, Torque, Rear RH
57072 Box Sub-assy, Torque, Rear LH
57073 Bracket Sub-assy, Lateral Rod
57113 Extension, Front Side Member, RH
57114 Extension, Front Side Member, LH
57155 Reinforcement, Front Side Member, NO.3, RH
57156 Reinforcement, Front Side Member, NO.3, LH
57209 Member Sub-assy, Engine Rear Support
57401 Member Sub-assy, Main Floor Side, RH
57402 Member Sub-assy, Main Floor Side, LH
57403A Member Sub-assy, Center Floor Cross, NO.3
57405A Member Sub-assy, Center Floor Cross, NO.2
57407 Crossmember Sub-assy, Center Floor, NO.1
57425 Reinforcement, Front Floor, NO.2 RH
57426 Reinforcement, Front Floor, NO.2 LH
57451 Member, Front Floor Cross
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57607 Crossmember Sub-assy, Rear Floor, NO.1
57608 Crossmember Sub-assy, Rear Floor, NO.2
57616 Member, Rear Floor Side, Rear RH
57617 Member, Rear Floor Side, Rear LH
57704 Support Sub-assy, Rear Suspension Spring
57777A Protector, Lower Control Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
