Toyota Tercel

1982-05 → 1988-01 · chassis AL2# · catalogue 131220 · Europe

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

19 part groups · 2 illustrations

Illustrations

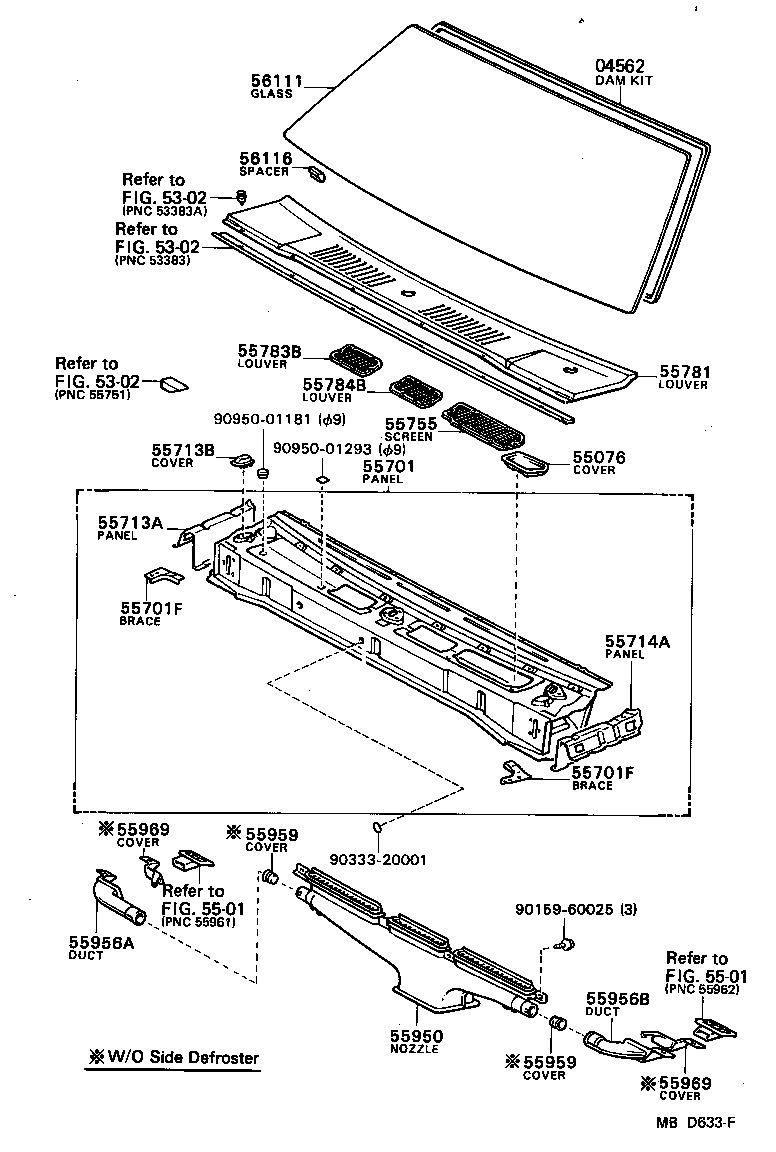

Figure MBD632E MBD632E 1982-05 → — Figure MBD633F MBD633F 1982-05 → —

Part groups

PNCDescription
04562 Dam Kit, Windshield Glass
55076 Cover, Heater Air Duct Hole
55701 Panel Sub-assy, Cowl
55701F Brace, Cowl Top TO Apron
55713A Panel, Cowl Top Side, RH
55713B Cover, Cowl Side Panel Hole, RH
55714A Panel, Cowl Top Side, LH
55714B Cover, Cowl Side Panel Hole, LH
55755 Screen, Heater Air Duct
55781 Louver, Cowl Ventilator
55783B Louver, Cowl Top Ventilator, Center NO.1
55784B Louver, Cowl Top Ventilator, Center NO.2
55950 Nozzle Assy, Defroster
55956A Duct, Side Defroster Nozzle, NO.1
55956B Duct, Side Defroster Nozzle, NO.2
55959 Cover, Defroster Nozzle Opening, NO.1
55969 Cover, Defroster Nozzle Opening, NO.2
56111 Glass, Windshield
56116 Spacer, Windshield Glass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
