Toyota Tercel

1982-05 → 1988-01 · chassis AL2# · catalogue 131220 · Europe

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

11 part groups · 2 illustrations

Illustrations

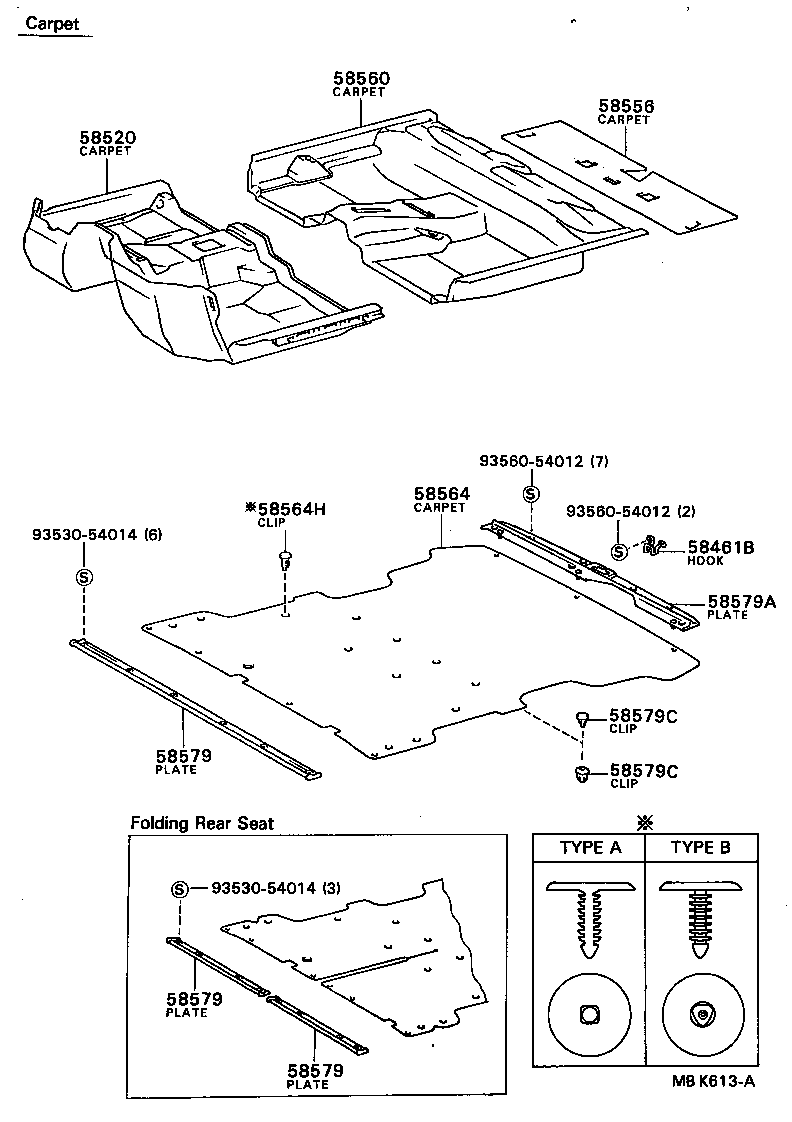

Figure MBD639A MBD639A 1982-05 → 1984-08 Figure MBK613A MBK613A 1982-05 → —

Part groups

PNCDescription
58461B Hook, Rear Floor Carpet
58520 Carpet Assy, Front Floor
58556 Carpet, Rear Seat, Front
58560 Carpet Assy, Floor, Rear
58563H Clip(FOR REAR FLOOR MAT)
58564 Carpet, Rear Floor
58564H Clip(FOR REAR FLOOR CARPET)
58572C Clip, Rear Floor Mat Set
58579 Set Plate, Rear Floor Carpet, NO.1
58579A Set Plate, Rear Floor Carpet, NO.2
58579C Clip, Rear Floor Carpet Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
