Toyota Tercel

1982-05 → 1988-01 · chassis AL2# · catalogue 131220 · Europe

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

11 part groups · 2 illustrations

Illustrations

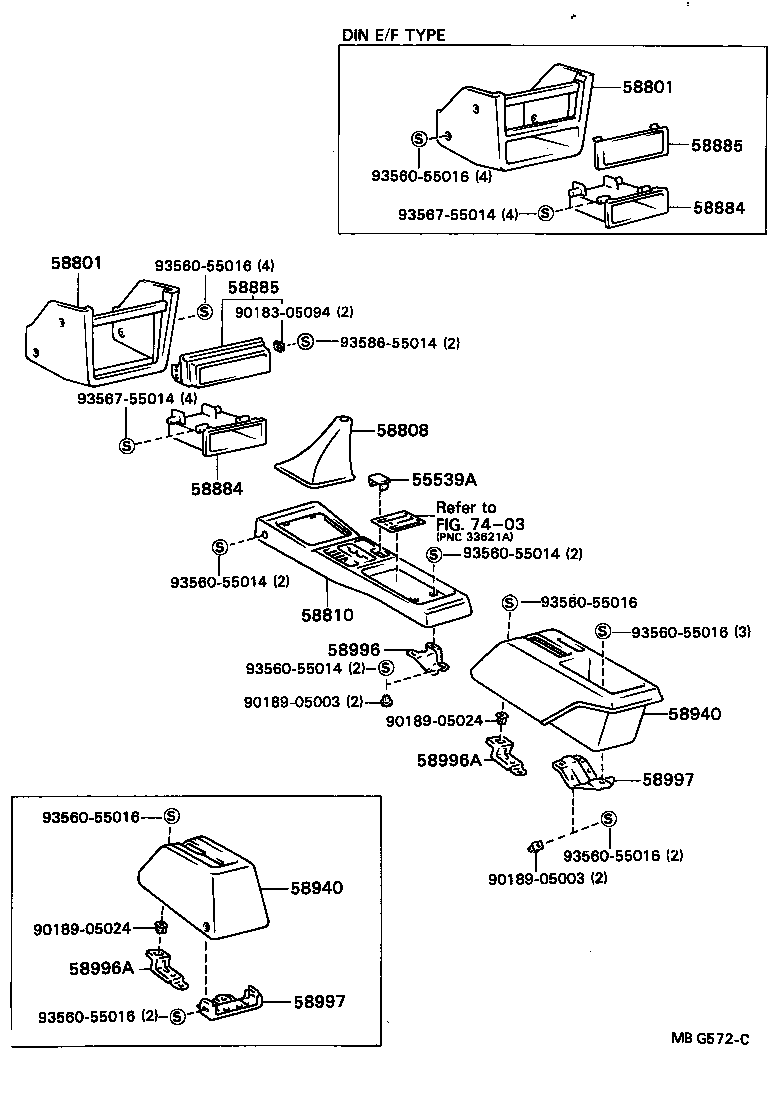

Figure MBD645C MBD645C 1982-05 → 1984-08 Figure MBG572C MBG572C 1984-08 → —

Part groups

PNCDescription
55539A Cover, Spare Switch Hole
58801 Console Sub-assy, Upper
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58843 Bezel, Shifting Hole
58884 Cover, Stereo Opening
58885 Cover, Console Box Opening
58940 Console Assy, Rear
58996 Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
