Toyota Tercel
1982-05 → 1988-01 · chassis AL2# · catalogue 131220 · Europe
Discontinued model
Data version 1988-05

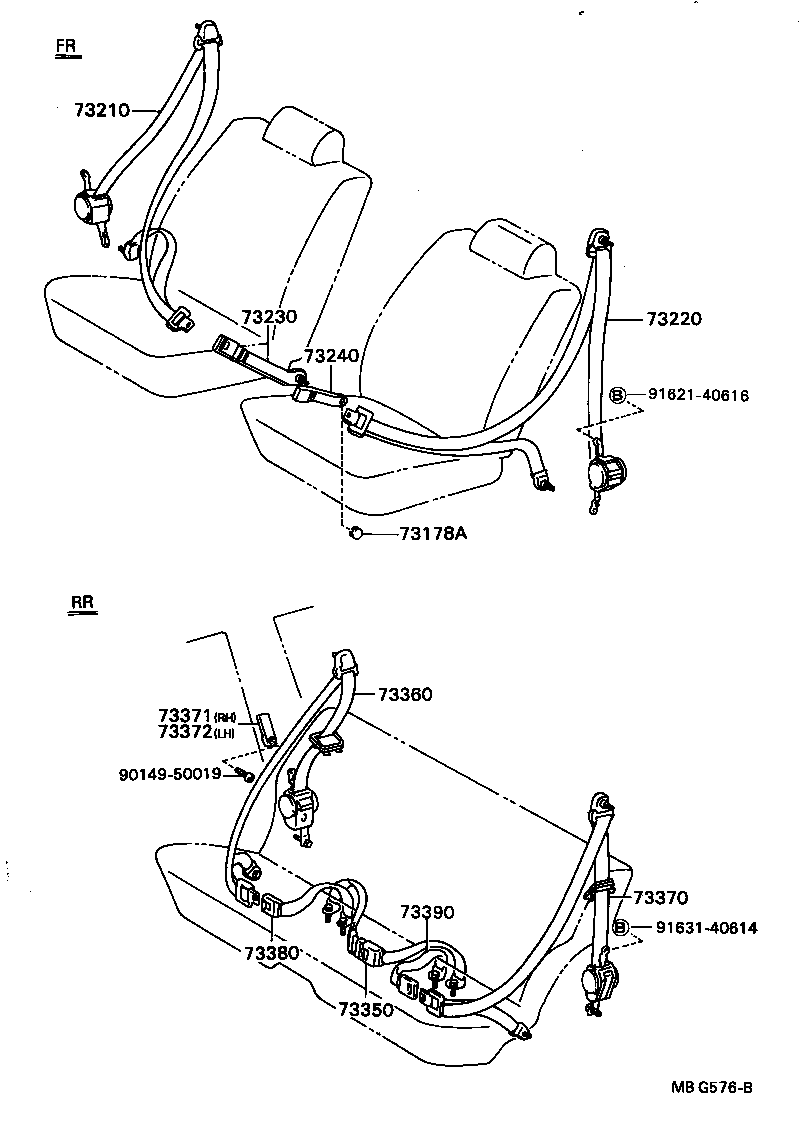

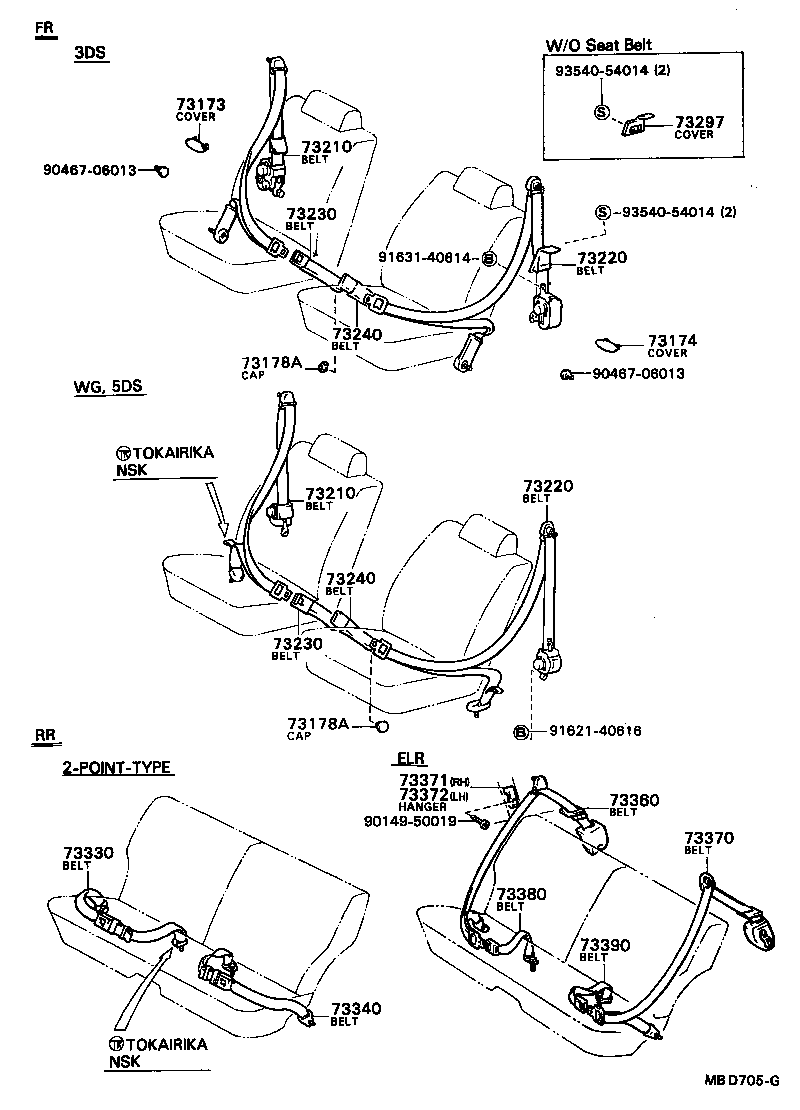

Seat Belt & Child Restraint Seat
26 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 73013A | Plate Sub-assy, Front Seat Belt Inner Anchor, RH |
| 73014A | Plate Sub-assy, Front Seat Belt Inner Anchor, LH |
| 73108 | Base Sub-assy, Front Seat Belt Anchor, RH |
| 73109 | Base Sub-assy, Front Seat Belt Anchor, LH |
| 73129 | Bar, Front Seat Belt Lap Outer Anchor |
| 73137 | Cap, Front Seat Belt Inner Anchor, RH |
| 73138 | Cap, Front Seat Belt Inner Anchor, LH |
| 73173 | Cover, Front Seat Belt Hole, RH |
| 73174 | Cover, Front Seat Belt Hole, LH |
| 73178A | Cap, Seat Belt Anchor Cover |
| 73180 | Bracket Assy, Seat Belt Inner Anchor, RH |
| 73190 | Bracket Assy, Seat Belt Inner Anchor, LH |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73297 | Cover, Quarter Trim OR Center Pillar Belt Hole |
| 73330 | Belt Assy, Rear Seat Lap Type, RH |
| 73340 | Belt Assy, Rear Seat Lap Type, LH |
| 73350 | Belt Assy, Rear Seat Lap Type, Center |
| 73360 | Belt Assy, Rear Seat 3 Point Type, Outer RH |
| 73370 | Belt Assy, Rear Seat 3 Point Type, Outer LH |
| 73371 | Hanger, Rear Seat Shoulder Belt, RH |
| 73372 | Hanger, Rear Seat Shoulder Belt, LH |
| 73380 | Belt Assy, Rear Seat 3 Point Type, Inner, RH |
| 73390 | Belt Assy, Rear Seat 3 Point Type, Inner, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
