Toyota Tercel

1982-05 → 1988-01 · chassis AL2# · catalogue 131220 · Europe

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

7 part groups · 2 illustrations

Illustrations

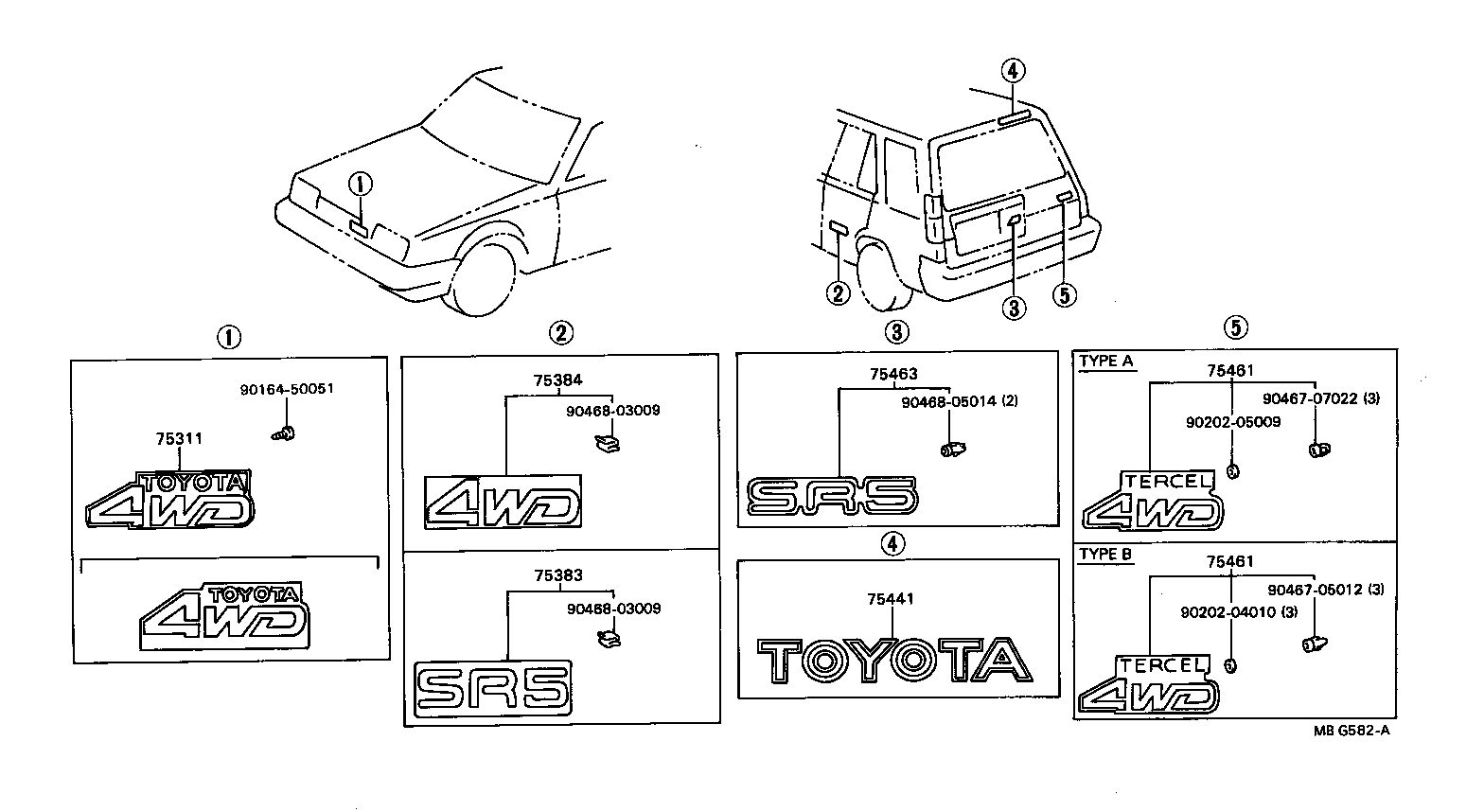

Figure MBD720D MBD720D 1982-05 → 1984-08 Figure MBG582A MBG582A 1984-08 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75322 Retainer, Radiator Grille Name Plate
75383 Plate, Quarter Panel OR Side Panel Name (GRADE MARK)
75384 Plate, Quarter Panel OR Side Panel Name, NO.3 (MECHANISM)
75441 Plate, Rear Name, NO.1
75461 Plate, Rear Name, NO.2 (MODEL MARK)
75463 Plate, Rear Name, NO.4 (GRADE MARK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
