Toyota Tercel

1982-05 → 1988-01 · chassis AL2# · catalogue 131220 · Europe

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

35 part groups · 3 illustrations

Illustrations

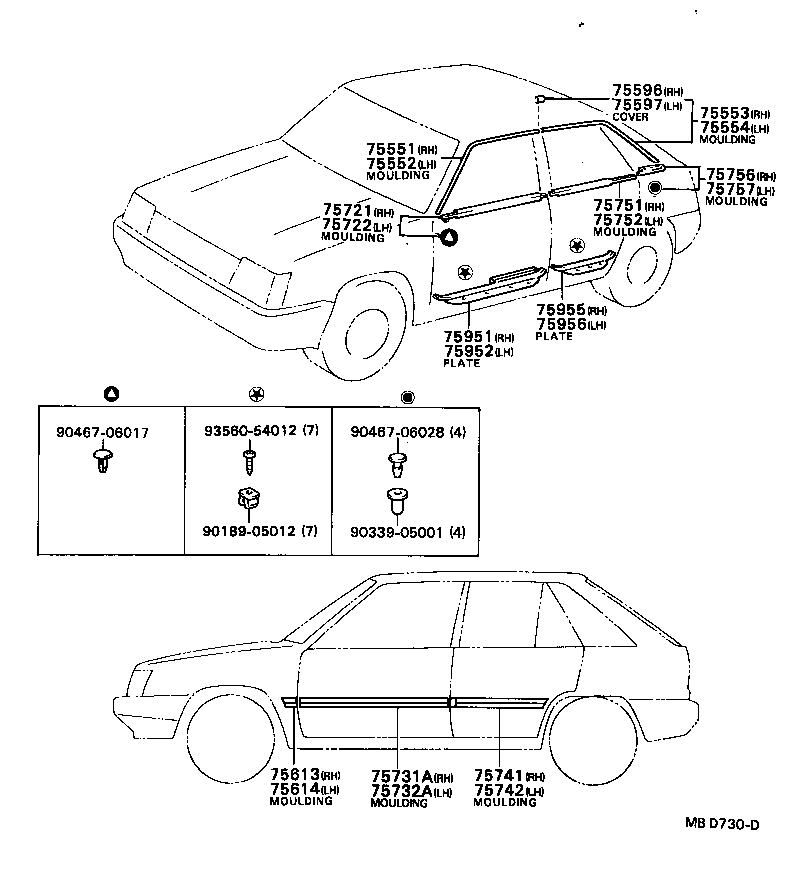

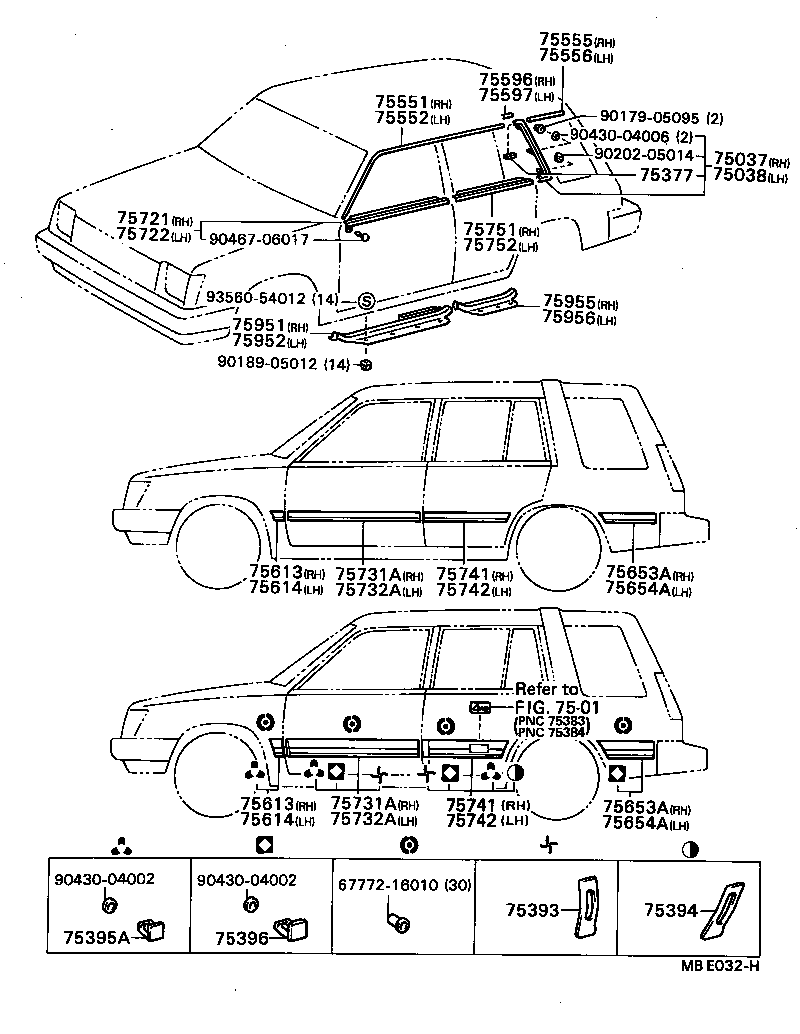

Figure MBD723F MBD723F 1982-05 → 1984-08 Figure MBD730D MBD730D 1982-05 → 1984-08 Figure MBE032H MBE032H 1982-08 → —

Part groups

PNCDescription
75037 Ornament Sub-assy, Quarter Panel, RH
75038 Ornament Sub-assy, Quarter Panel, LH
75377 Seal, Quarter Panel Ornament
75393 Retainer, Outside Moulding, NO.2
75394 Retainer, Outside Moulding, NO.3
75395A Clip, Outside Moulding, NO.1
75396 Clip, Outside Moulding, NO.2
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75553 Moulding, Roof Drip Side Finish, RH
75554 Moulding, Roof Drip Side Finish, LH
75555 Moulding, Roof Drip Side Finish, Rear RH
75556 Moulding, Roof Drip Side Finish, Rear LH
75596 Cover, Roof Drip Side Finish Moulding Joint, RH
75597 Cover, Roof Drip Side Finish Moulding Joint, LH
75613 Moulding, Front Fender, Outside RH
75614 Moulding, Front Fender, Outside LH
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75653A Moulding, Quarter, Outside Rear RH
75654A Moulding, Quarter, Outside Rear LH
75721 Moulding, Front Door Belt, RH
75722 Moulding, Front Door Belt, LH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75751 Moulding, Rear Door Belt, RH
75752 Moulding, Rear Door Belt, LH
75756 Moulding, Quarter Belt, RH
75757 Moulding, Quarter Belt, LH
75951 Plate, Front Door Scuff, Outside RH
75952 Plate, Front Door Scuff, Outside LH
75955 Plate, Rear Door Scuff, Outside RH
75956 Plate, Rear Door Scuff, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
