Toyota Tercel

1982-05 → 1988-01 · chassis AL2# · catalogue 131220 · Europe

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

73 part groups · 10 illustrations

Illustrations

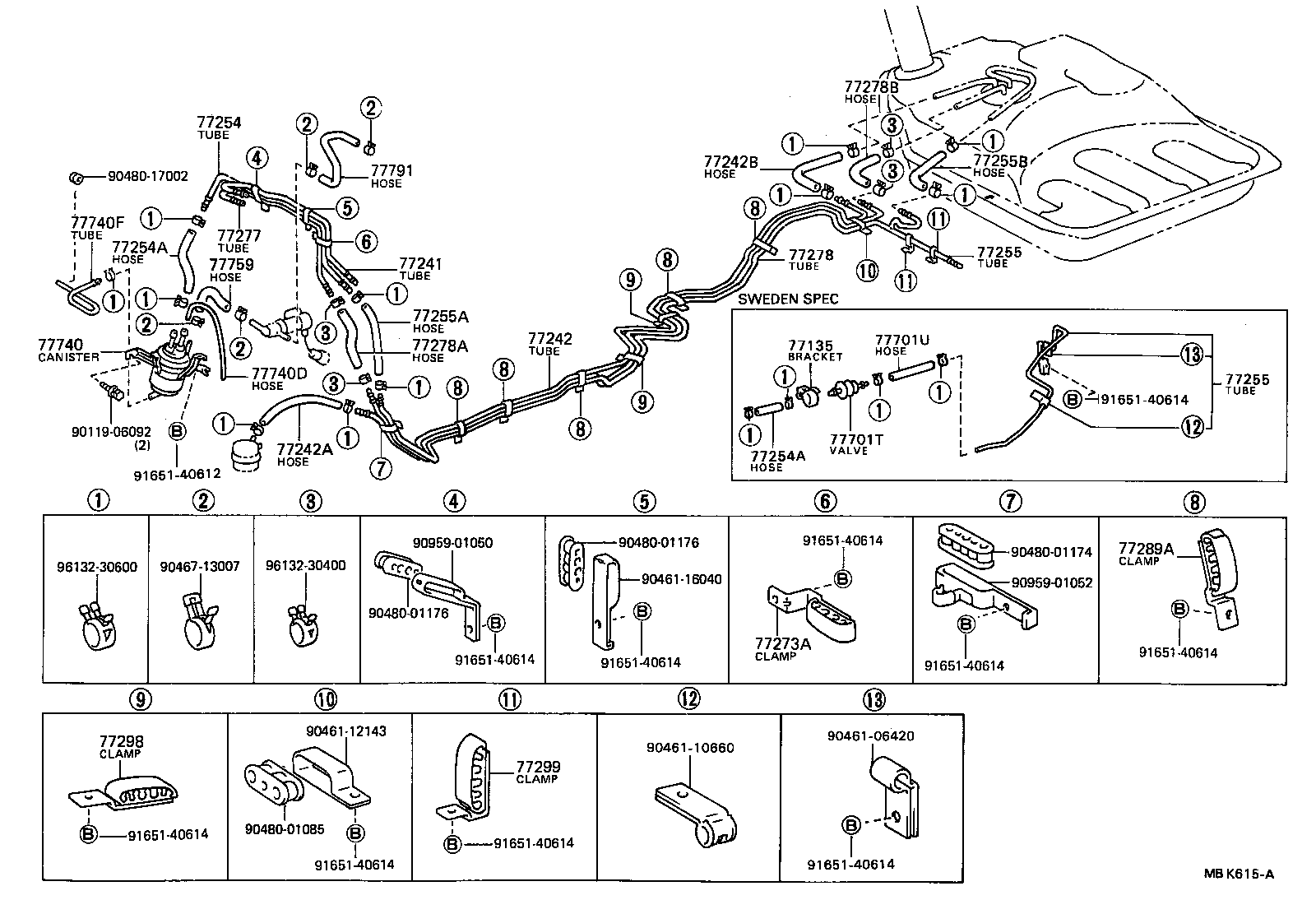

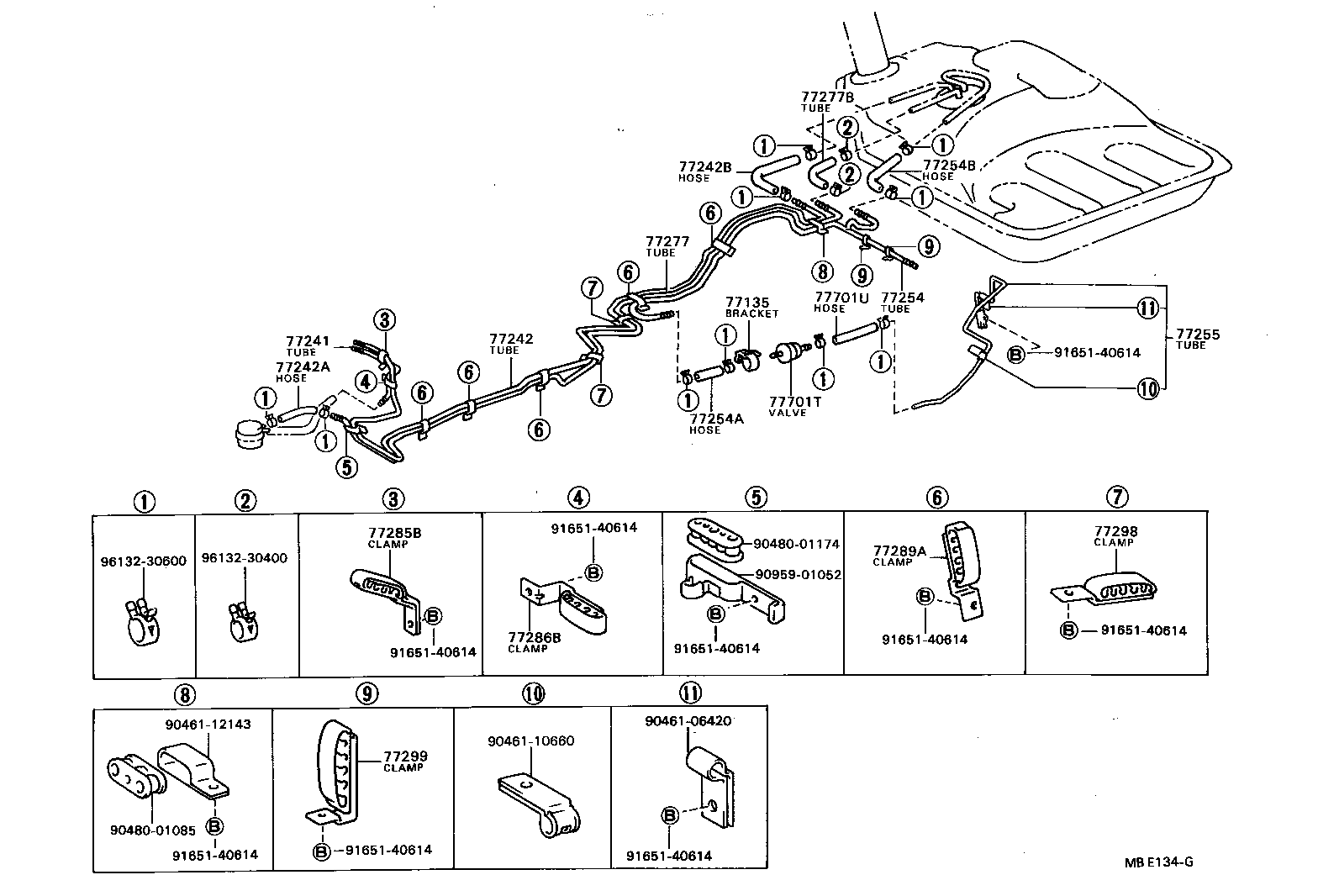

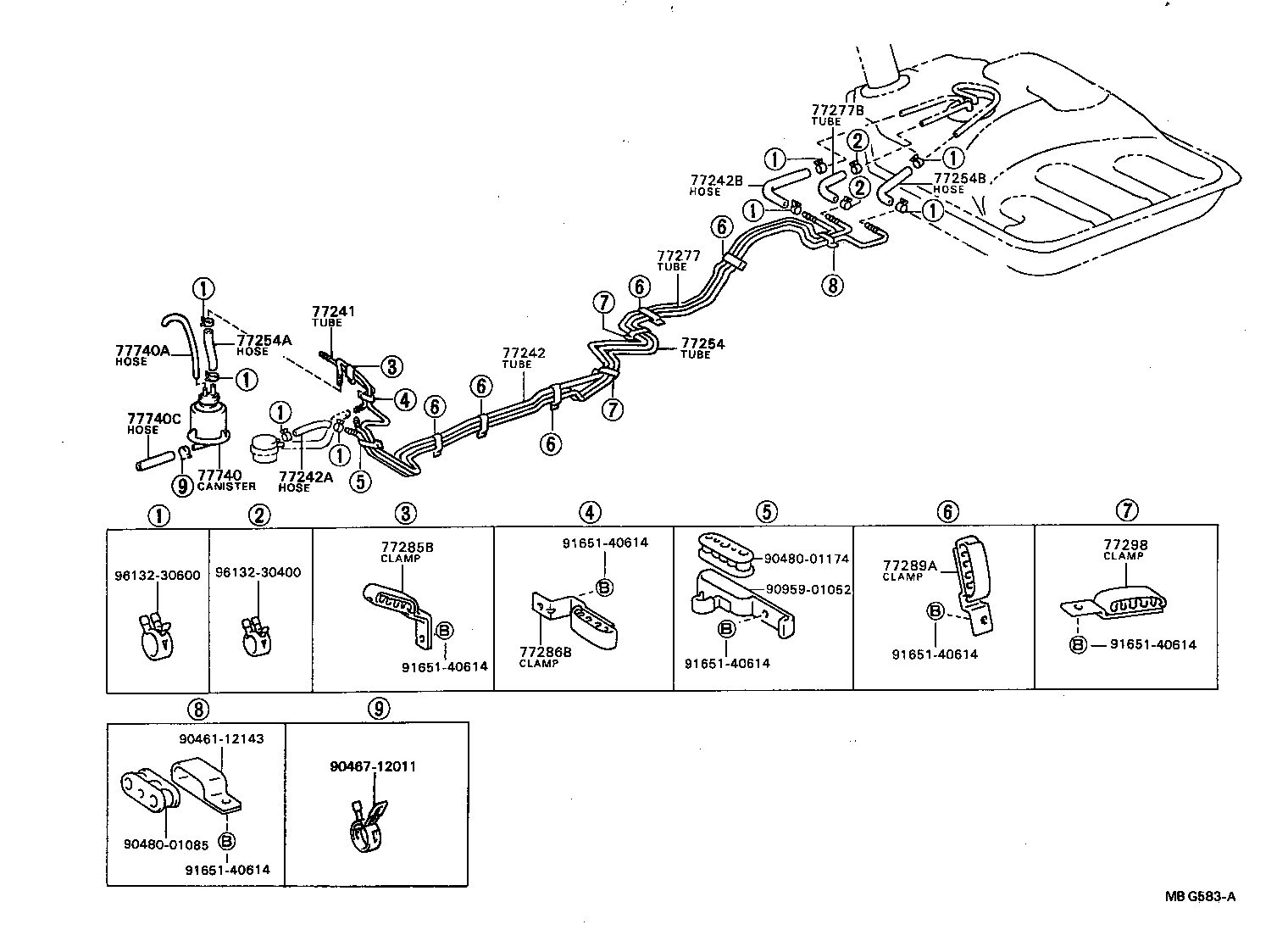

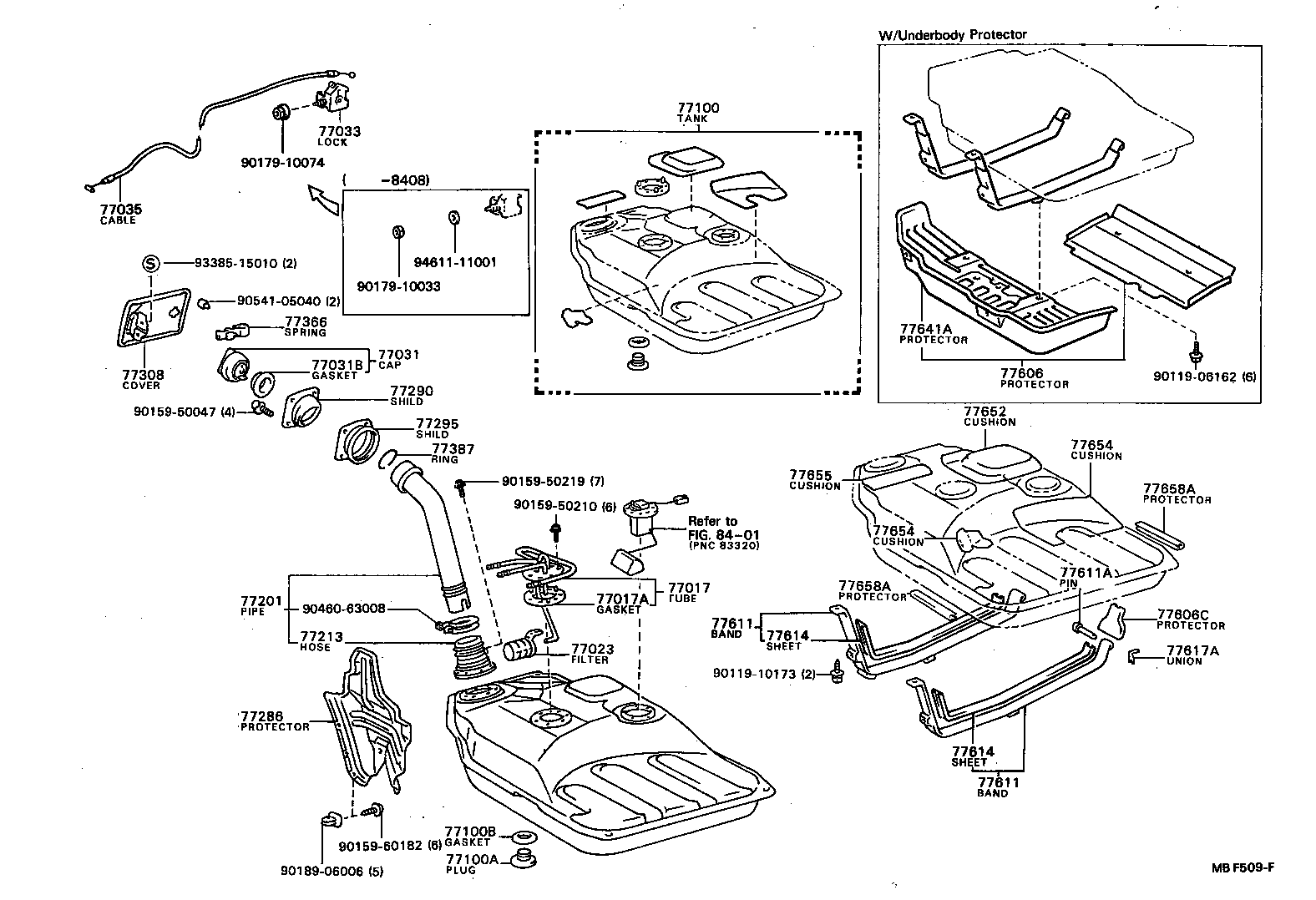

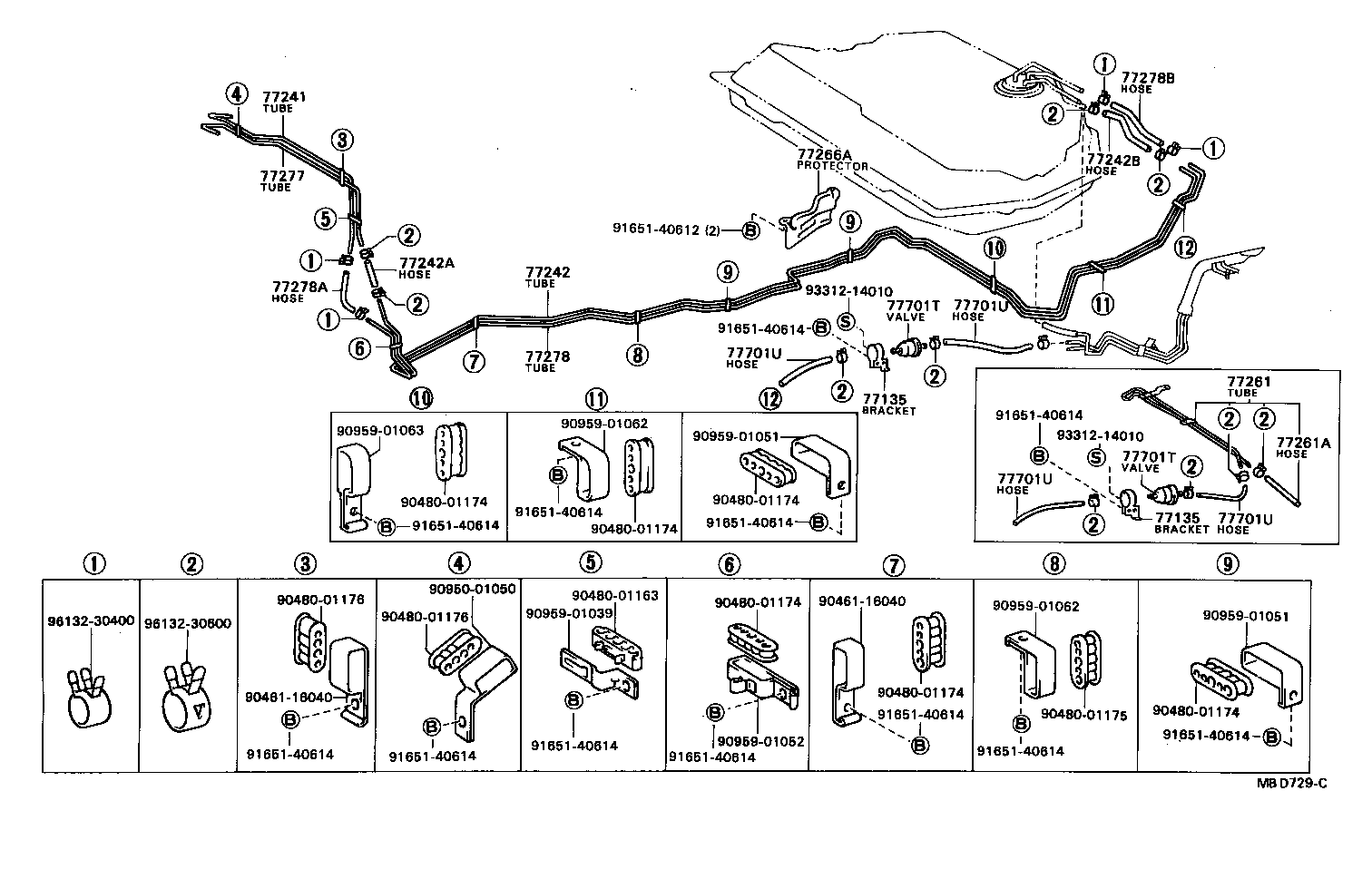

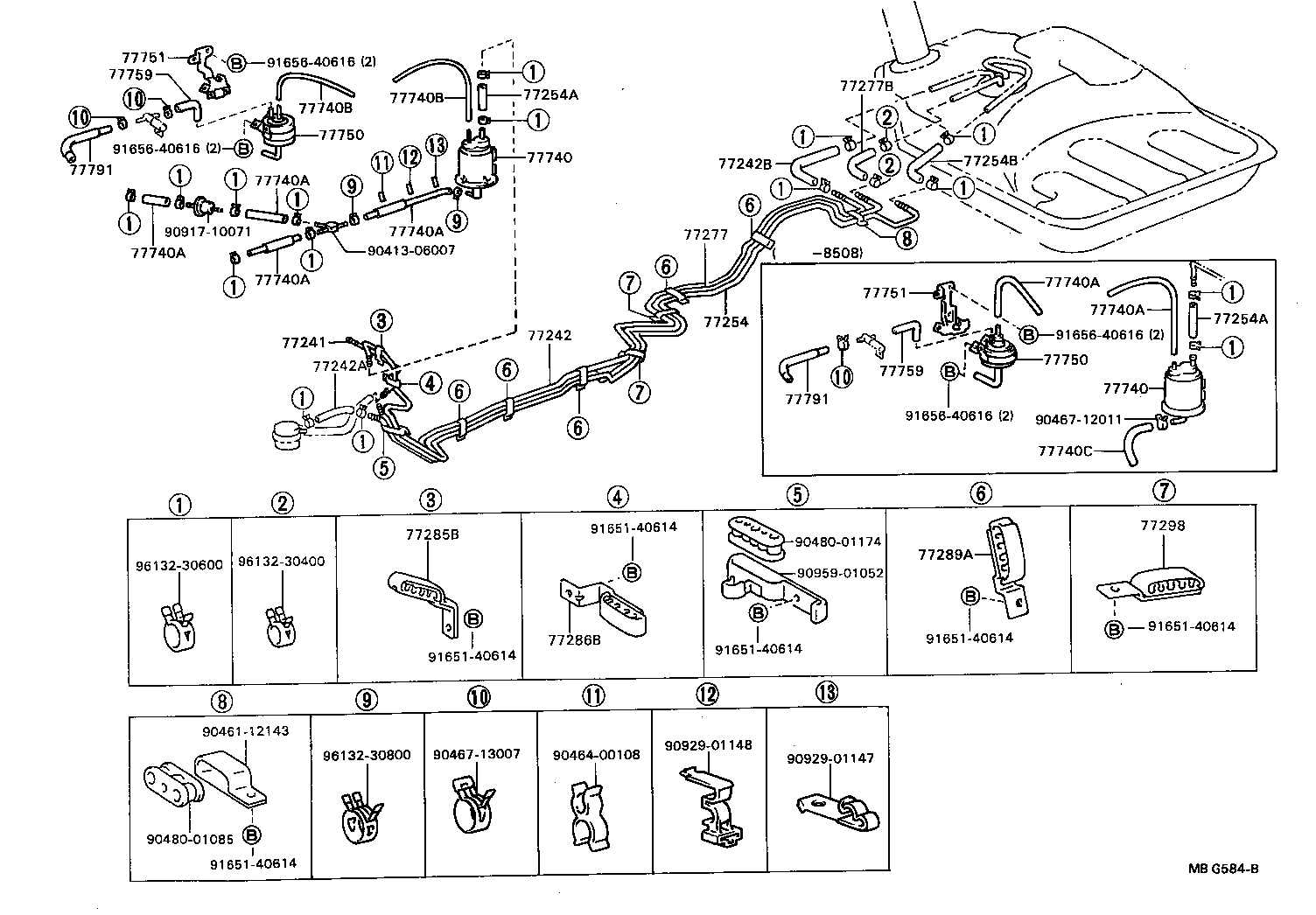

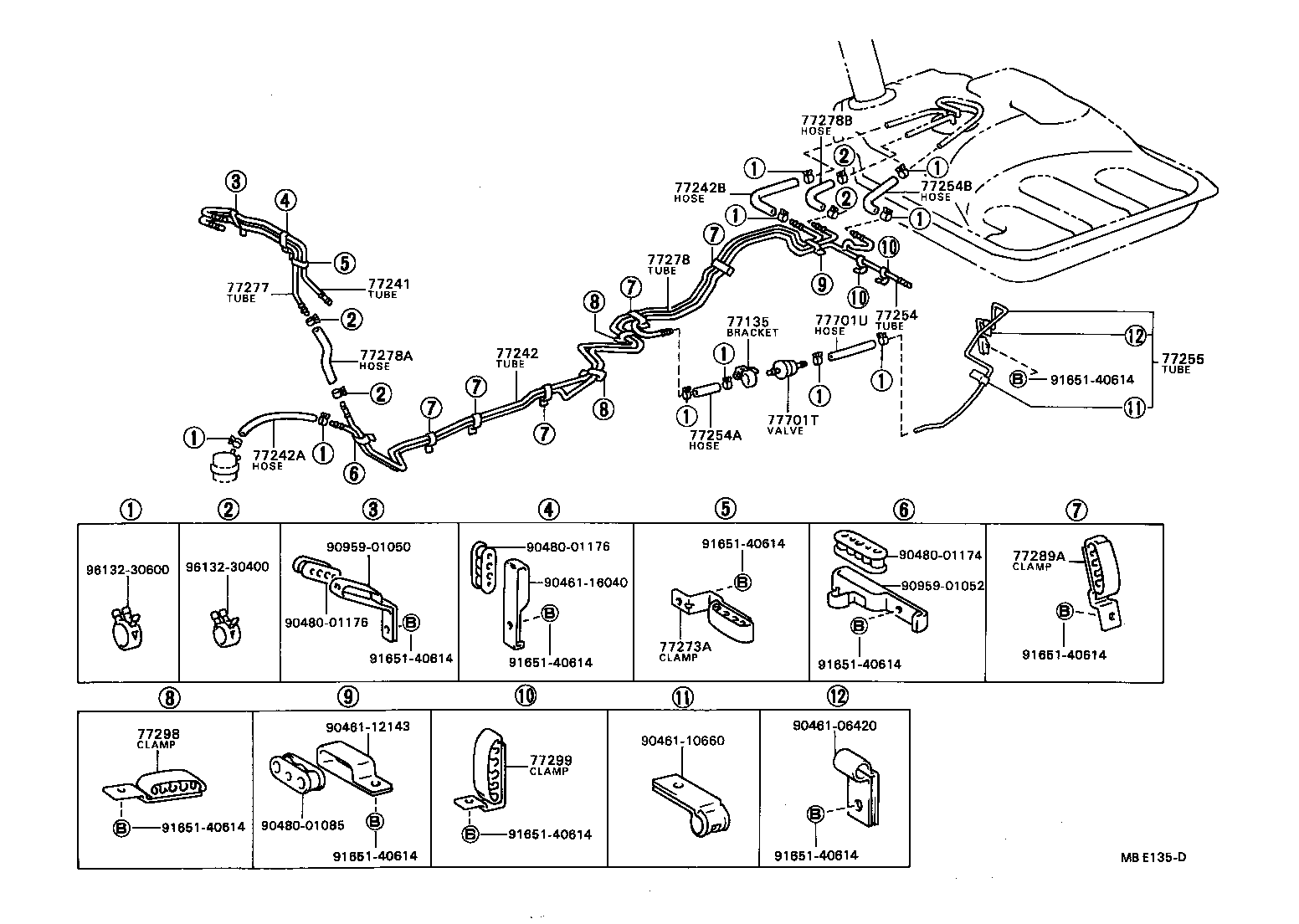

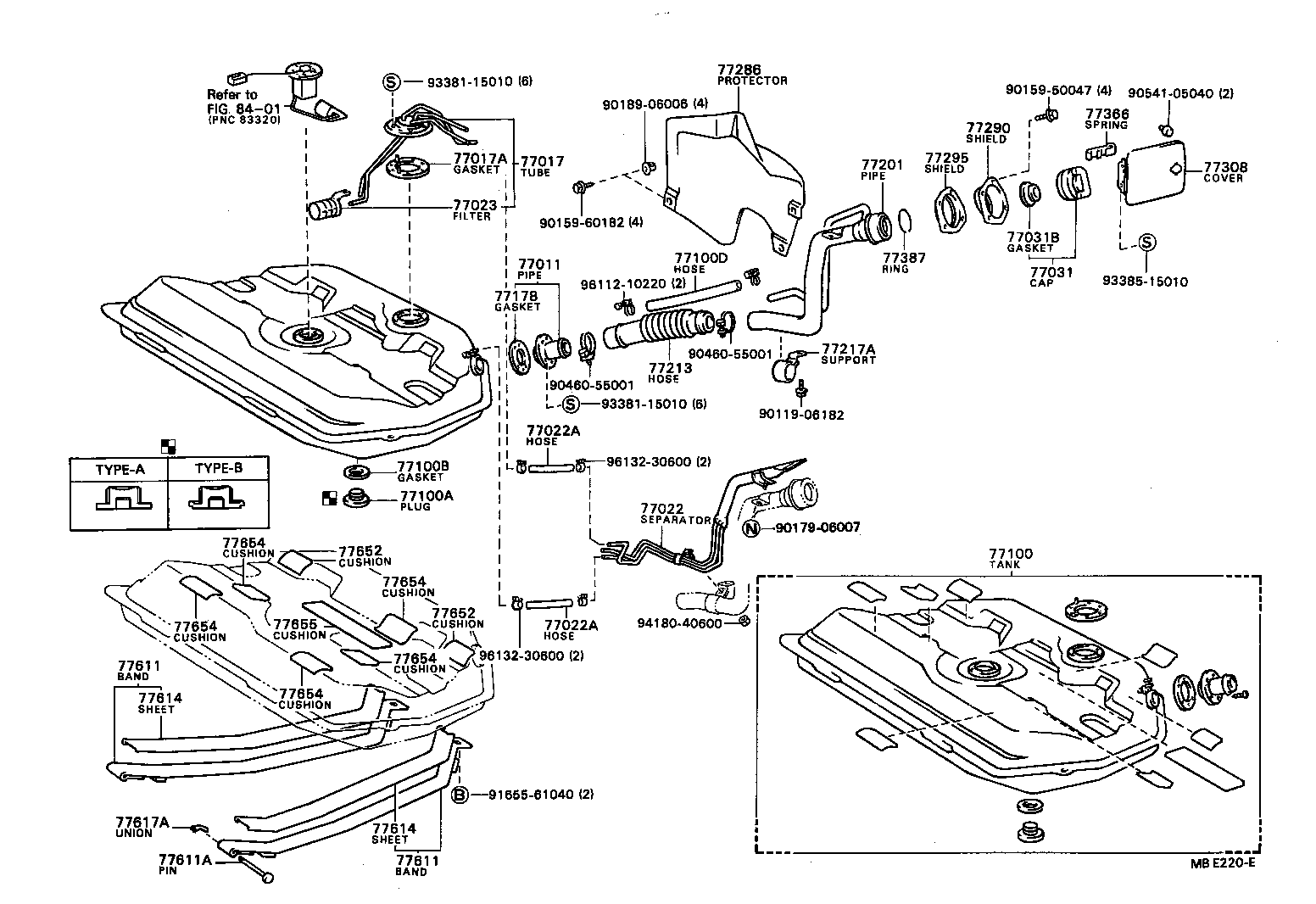

Figure MBD728C MBD728C 1982-05 → 1984-08 Figure MBE134G MBE134G 1982-08 → — Figure MBG583A MBG583A 1983-08 → 1984-06 Figure MBG584B MBG584B 1984-06 → — Figure MBD729C MBD729C 1982-05 → 1984-08 Figure MBE135D MBE135D 1982-08 → 1985-06 Figure MBE135D MBE135D 1985-06 → — Figure MBK615A MBK615A 1986-05 → — Figure MBE220E MBE220E 1982-05 → 1984-08 Figure MBF509F MBF509F 1982-08 → —

Part groups

PNCDescription
77011 Pipe Sub-assy, Fuel Tank Filler, Lower
77017 Tube Sub-assy, Fuel And Evaporation Vent
77017A Gasket, Fuel Tank Vent
77022 Separator Sub-assy, Fuel Evaporative
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77033 Lock Sub-assy, Fuel Tank Cap
77035 Cable Sub-assy, Fuel Lid Lock Control
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77100D Hose, Fuel, NO.1(FOR FUEL TANK)
77135 Bracket, Check Valve
77178 Gasket, Fuel Tank Filler Pipe, Lower
77201 Pipe Sub-assy, Fuel Tank Inlet
77213 Hose, Fuel Tank Sub Inlet
77217A Support, Fuel Tank Filler Pipe, NO.2
77241 Tube, Fuel Main, NO.1
77242 Tube, Fuel Main, NO.2
77242A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
77242B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
77254 Tube, Fuel Emission, NO.1
77254A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
77254B Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1)
77255 Tube, Fuel Emission, NO.2
77255A Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.2)
77255B Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.2)
77261 Tube Sub-assy, Fuel Emission
77261A Hose, Fuel, NO.1 (FOR FUEL EMISSION TUBE)
77266A Protector, Fuel Tube, NO.1
77273A Clamp, Fuel Tube W/Grommet, NO.6
77277 Tube, Fuel Return, NO.1
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77278 Tube, Fuel Return, NO.2
77278A Hose, Fuel, NO.1 (FOR RETURN TUBE, NO.2)
77278B Hose, Fuel, NO.2 (FOR RETURN TUBE, NO.2)
77285B Clamp, Fuel Tube W/Grommet, NO.1
77286 Protector, Fuel Tank Inlet Pipe
77286B Clamp, Fuel Tube W/Grommet, NO.2
77289A Clamp, Fuel Tube W/Grommet, NO.3
77290 Shield Assy, Fuel Tank Filler Pipe
77295 Shield, Fuel Filler Pipe
77298 Clamp, Fuel Tube W/Grommet, NO.4
77299 Clamp, Fuel Tube W/Grommet, NO.5
77308 Cover Sub-assy, Fuel Inlet Box
77366 Spring, Fuel Filler Opening Lid Hinge
77387 Ring, Fuel Inlet Box
77606 Protector Sub-assy, Fuel Tank, NO.1
77606C Protector, Fuel Tank, NO.2
77611 Band, Fuel Tank
77611A Pin (FOR FUEL TANK BAND)
77614 Seat, Fuel Tank Band
77617A Union, Auxiliary Fuel Band
77641A Protector, Fuel Tank, NO.1
77652 Cushion, Fuel Tank, NO.1
77654 Cushion, Fuel Tank, NO.2
77655 Cushion, Fuel Tank, NO.3
77658A Protector, Fuel Tank Edge, NO.1
77701T Valve, Check (FOR MAIN FUEL TANK)
77701U Hose, Fuel (FOR CHECK VALVE)
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77740B Hose, Fuel, NO.2(FOR CHARCOAL CANISTER)
77740C Hose, Fuel, NO.3(FOR CHARCOAL CANISTER)
77740D Hose, Fuel, NO.4(FOR CHARCOAL CANISTER)
77740F Tube, Fuel, NO.1(FOR CHARCOAL CANISTER)
77750 Canister Assy, Charcoal
77751 Bracket, Charcoal Canister Base
77759 Hose, Charcoal Canister
77791 Hose, Outer Vent Valve TO Carburetor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
