Toyota Tercel

1982-05 → 1988-01 · chassis AL2# · catalogue 131220 · Europe

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Clearance Lamp

10 part groups · 3 illustrations

Illustrations

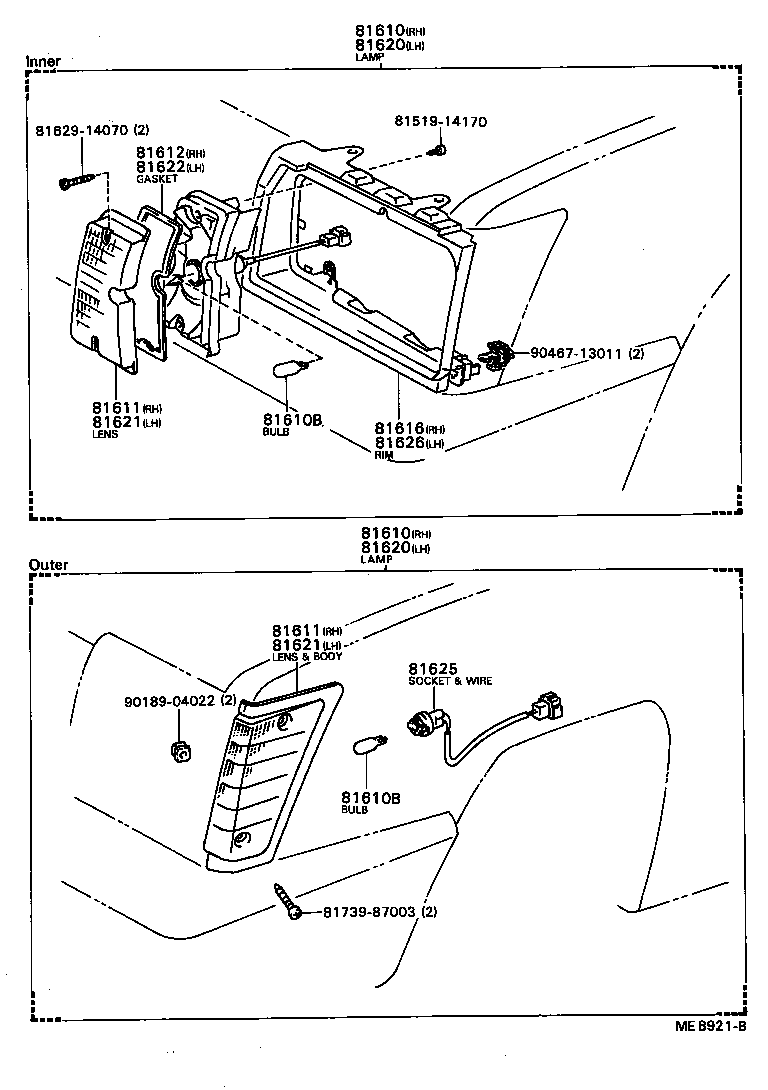

Figure MEH310A MEH310A 1982-05 → — Figure MEH310A MEH310A 1986-05 → — Figure MEB921B MEB921B 1982-08 → 1986-05

Part groups

PNCDescription
81610 Lamp Assy, Parking & Clearance, RH
81610B Bulb(FOR PARKING & CLEARANCE LAMP)
81611 Lens, Parking & Clearance Lamp, RH
81612 Gasket, Parking And Clearance Lamp Lens, RH
81616 Rim, Parking And Clearance Lamp, RH
81620 Lamp Assy, Parking & Clearance, LH
81621 Lens, Parking & Clearance Lamp, LH
81622 Gasket, Parking And Clearance Lamp Lens, LH
81625 Socket And Wire, Parking And Clearance Lamp
81626 Rim, Parking And Clearance Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
