Toyota Tercel
1982-05 → 1988-01 · chassis AL2# · catalogue 131220 · Europe
Discontinued model
Data version 1988-05

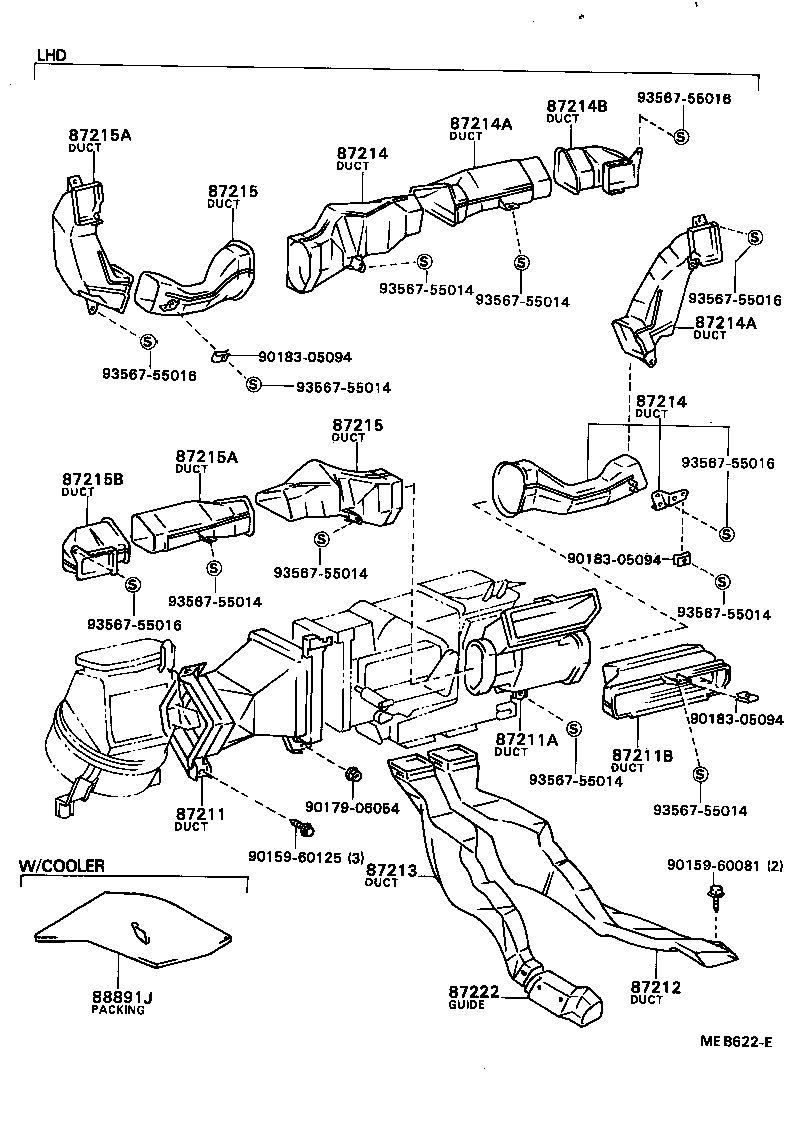

Heating & Air Conditioning - Control & Air Duct
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55903 | Lever Sub-assy, Heater Control |
| 55906A | Cable Sub-assy, Defroster Damper Control |
| 55907A | Cable Sub-assy, Water Valve Control |
| 55908A | Cable Sub-assy, Air Inlet Damper Control |
| 55909A | Cable Sub-assy, Airmix Damper Control |
| 55910 | Control Assy, Heater OR Boost Ventilator |
| 55923 | Retainer, Heater Control, Upper |
| 55937 | Knob, Heater Control Lever |
| 55941A | Guide, Heater Control |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87211B | Duct, Air, NO.3 |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87214 | Duct, Air, Side NO.1 RH |
| 87214A | Duct, Air, Side NO.2 RH |
| 87214B | Duct, Air, Side NO.3 RH |
| 87215 | Duct, Air, Side NO.1 LH |
| 87215A | Duct, Air, Side NO.2 LH |
| 87215B | Duct, Air, Side NO.3 LH |
| 87222 | Guide, Air Duct, Rear |
| 87284 | Resistor Sub-assy, Variable |
| 88891J | Packing |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
