Toyota Tercel

1982-05 → 1988-01 · chassis AL2# · catalogue 131220 · Europe

Discontinued model Data version 1988-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

10 part groups · 2 illustrations

Illustrations

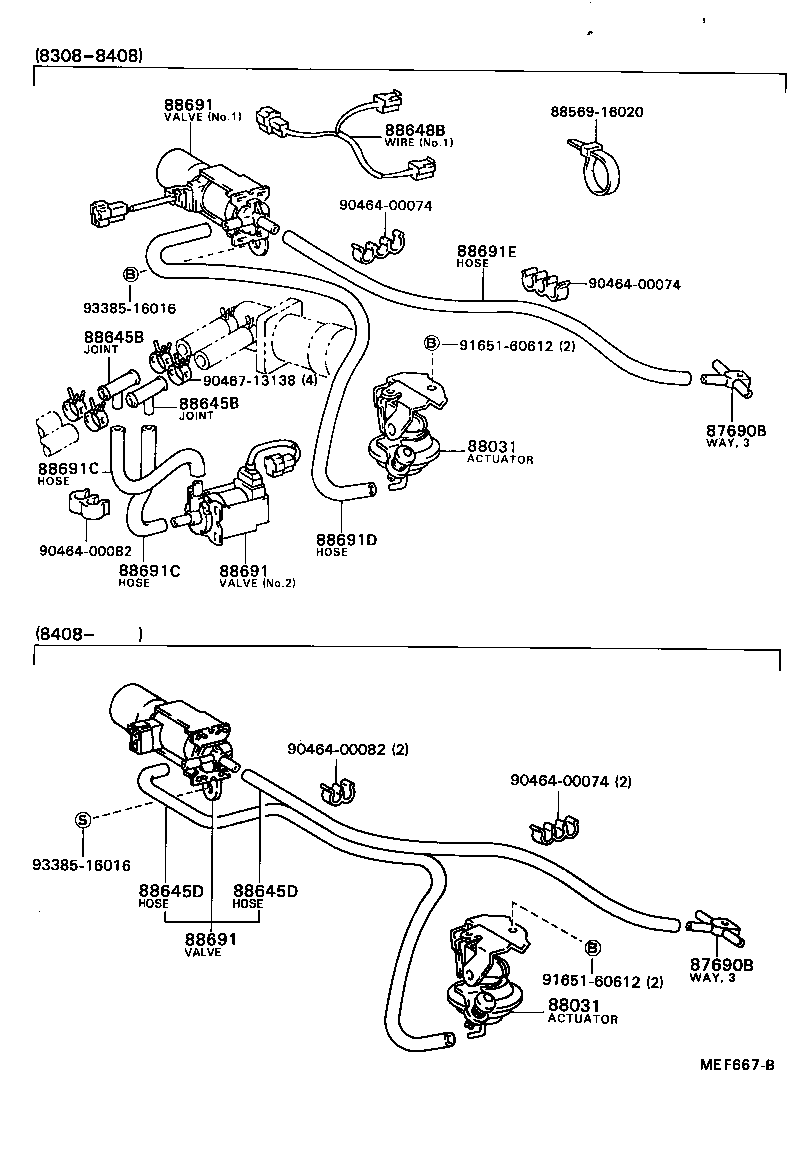

Figure MEC168D MEC168D 1982-05 → — Figure MEF667B MEF667B 1983-08 → —

Part groups

PNCDescription
87690B Way, 3
88031 Actuator Set, Idle-up
88031N Bracket, Idle-up Actuator
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88645D Hose (FOR IDLE UP DEVICE)
88648B Wiring, Cooler, NO.1
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
88691D Hose, Vacuum (FOR IDLE UP DIVICE), NO.2
88691E Hose, Vacuum (FOR IDLE UP DIVICE), NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
