Heating & Air Conditioning - Cooler Piping

30 part groups · 9 illustrations

Illustrations

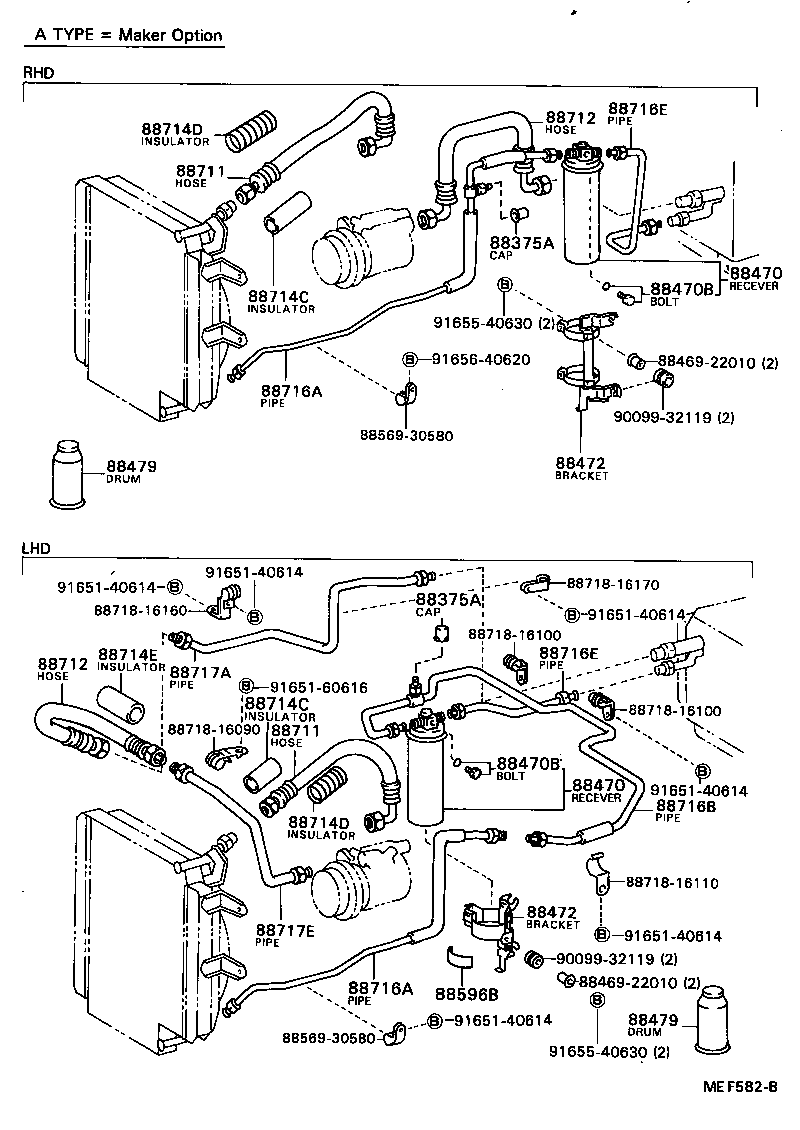

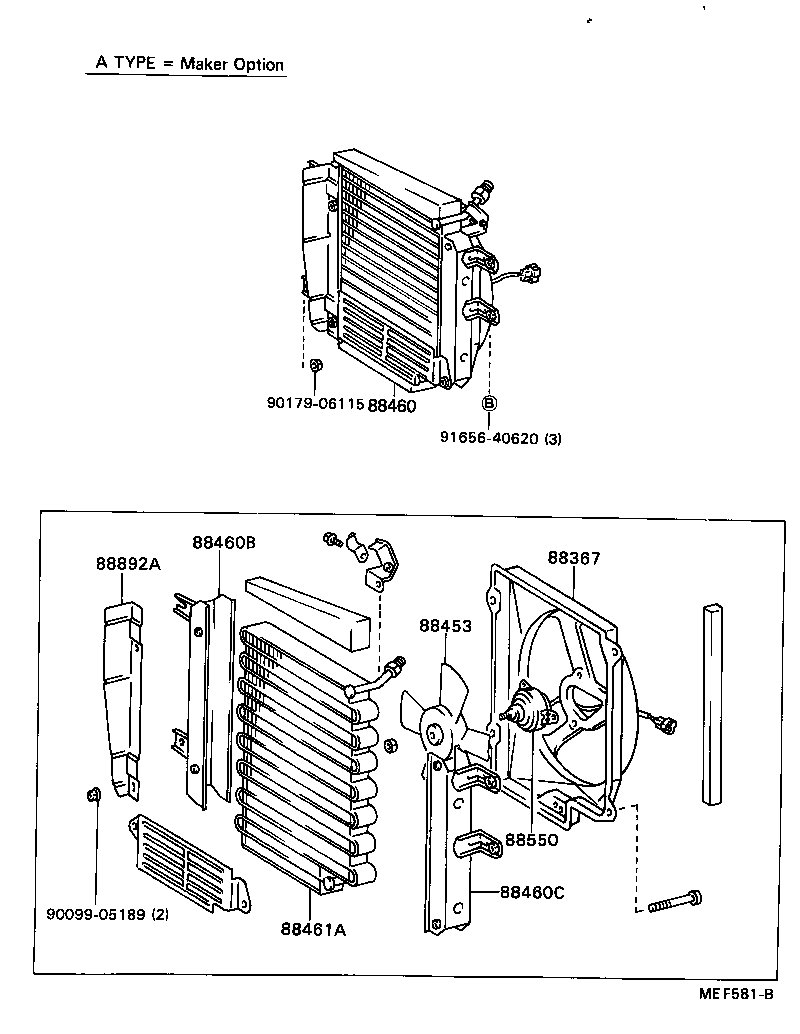

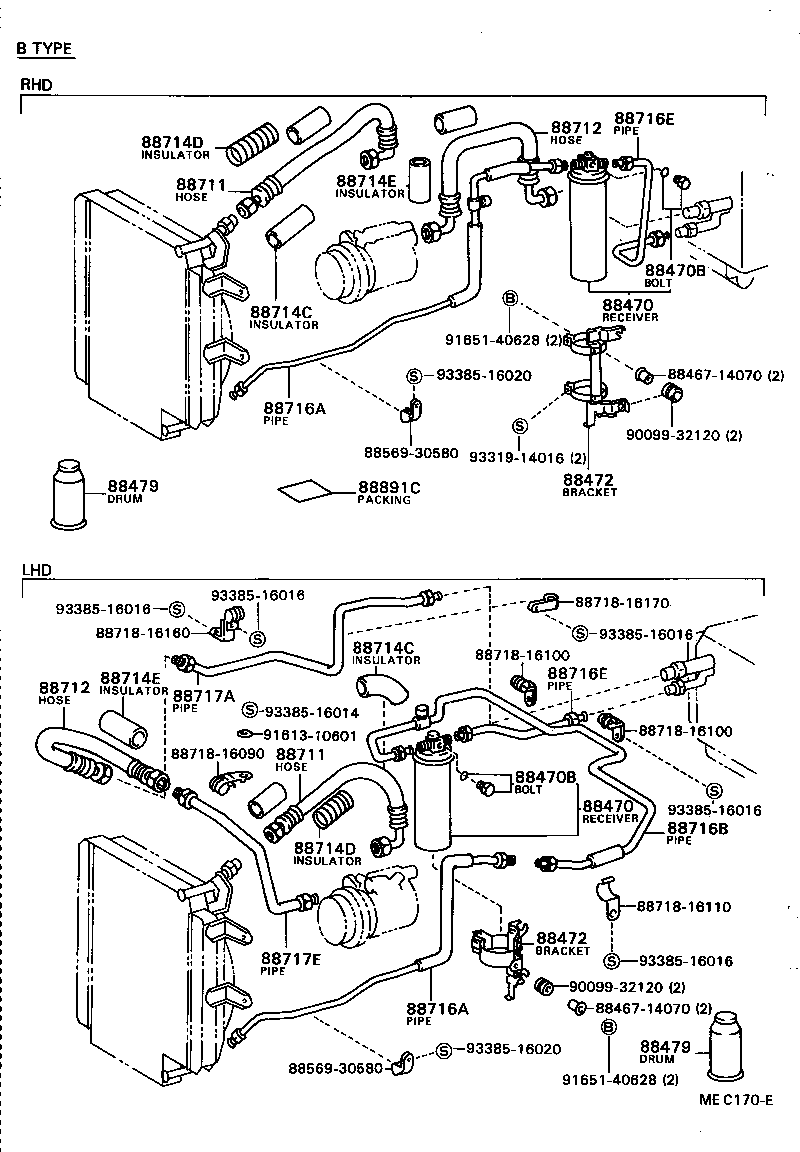

Figure MEC169B MEC169B 1982-05 → 1984-08 Figure MEC169B MEC169B 1982-05 → — Figure MEC169B MEC169B 1985-03 → — Figure MEF581B MEF581B 1984-08 → — Figure MEC170E MEC170E 1982-05 → 1984-08 Figure MEC170E MEC170E 1982-05 → — Figure MEC170E MEC170E 1985-03 → — Figure MEF582B MEF582B 1984-08 → — Figure MED867 MED867 1983-08 → —

Part groups

PNCDescription
88367 Shroud, Cooler Blower Fan
88375A Cap, Service Valve (FOR COOLER PIPE)
88453 Fan, Cooling (FOR CONDENSER)
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88461A Core, Cooler Condenser
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88596B Plate, Caution, NO.1
88605J Harness Sub-assy, Air Conditioner Wiring
88630J Relay Assy (FOR CONDENSER MOTOR)
88635A Resistor, Blower (FOR COOLER CONDENSER MOTOR)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88714C Insulator, Cooler Refrigerant Hose, NO.1
88714D Insulator, Cooler Refrigerant Hose, NO.2
88714E Insulator, Cooler Refrigerant Hose, NO.3
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717E Pipe, Cooler Refrigerant Suction, E
88891A Packing A (FOR COOLER)
88891B Packing B (FOR COOLER)
88891C Packing C (FOR COOLER)
88892A Bracket, Cooler Evaporator Mounting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
