Toyota Tercel

1986-08 → 1988-08 · chassis EL31 · catalogue 141410 · Europe

Discontinued model Data version 1989-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

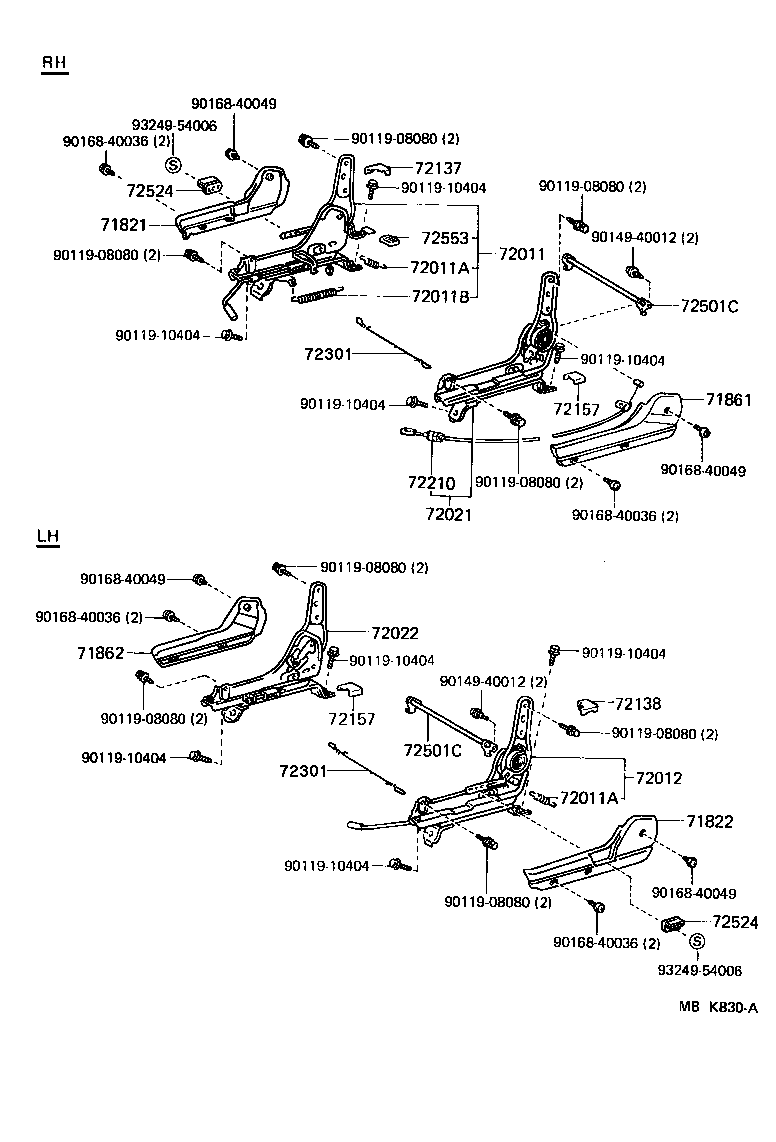

Exploded illustration MBK830A 9016840049 — not listed in this catalogue 9324954006 — not listed in this catalogue 9011908080 — not listed in this catalogue 9016840036 — not listed in this catalogue 72137 — COVER, SEAT TRACK, OUTER RH (1 parts) 9011908080 — not listed in this catalogue 9011910404 — not listed in this catalogue 72524 — HANDLE, RECLINING ADJUSTER RELEASE (6 parts) 71821 — SHIELD, FRONT SEAT SIDE, RH (6 parts) 72553 — COVER, RECLINING PEDAL (1 parts) 9014940012 — not listed in this catalogue 72011 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH (3 parts) 9011908080 — not listed in this catalogue 72011A — SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) (1 parts) 72011B — SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) (1 parts) 72501C — PIPE SUB-ASSY, RECLINING CONNECTING (1 parts) 9011910404 — not listed in this catalogue 72301 — WIRE SUB-ASSY, SEAT TRACK EQUALIZING (1 parts) 9011910404 — not listed in this catalogue 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (3 parts) 9011910404 — not listed in this catalogue 72157 — COVER, SEAT TRACK BRACKET, INNER (2 parts) 9016840049 — not listed in this catalogue 72210 — CABLE ASSY, SEAT TRACK CONTROL (1 parts) 9011908080 — not listed in this catalogue 72021 — ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH (3 parts) 9016840036 — not listed in this catalogue 9011908080 — not listed in this catalogue 9016840049 — not listed in this catalogue 9016840036 — not listed in this catalogue 72022 — ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH (1 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (3 parts) 9011910404 — not listed in this catalogue 9011910404 — not listed in this catalogue 9014940012 — not listed in this catalogue 72138 — COVER, SEAT TRACK, OUTER LH (1 parts) 9011908080 — not listed in this catalogue 72157 — COVER, SEAT TRACK BRACKET, INNER (2 parts) 9011908080 — not listed in this catalogue 72501C — PIPE SUB-ASSY, RECLINING CONNECTING (1 parts) 9011910404 — not listed in this catalogue 72301 — WIRE SUB-ASSY, SEAT TRACK EQUALIZING (1 parts) 72012 — ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH (1 parts) 72011A — SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) (1 parts) 71822 — SHIELD, FRONT SEAT SIDE, LH (3 parts) 9011910404 — not listed in this catalogue 9016840049 — not listed in this catalogue 9011908080 — not listed in this catalogue 72524 — HANDLE, RECLINING ADJUSTER RELEASE (6 parts) 9016840036 — not listed in this catalogue 9324954006 — not listed in this catalogue
MBK830A · 23 callouts, 28 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
39 parts on this figure
Part number Description Fitment Price
71821 — Shield, Front Seat Side, RH
71811-16060-01 note Shield, Front Seat Side, RH
1986-08 → 1988-08 ended
EL31 5DS —
71811-16060-04 note Shield, Front Seat Side, RH
1986-08 → 1988-08 ended
EL31 5DS —
71811-16060-05 note Shield, Front Seat Side, RH
1986-08 → 1988-08 ended
EL31 5DS —
71811-16070-01 note Shield, Front Seat Side, RH
1986-08 → 1988-08 ended
EL31 2DS,3DS —
71811-16070-04 note Shield, Front Seat Side, RH
1986-08 → 1988-08 ended
EL31 2DS,3DS —
71811-16070-05 note Shield, Front Seat Side, RH
1986-08 → 1988-08 ended
EL31 2DS,3DS —
71822 — Shield, Front Seat Side, LH
71812-16040-01 note Shield, Front Seat Side, LH
1986-08 → 1988-08 ended
EL31 —
71812-16040-04 note Shield, Front Seat Side, LH
1986-08 → 1988-08 ended
EL31 —
71812-16040-05 note Shield, Front Seat Side, LH
1986-08 → 1988-08 ended
EL31 —
71861 — Shield, Front Seat Cushion, Inner RH
71861-16040-01 note Shield, Front Seat Cushion, Inner RH
1986-08 → 1988-08 ended
EL31 —
71861-16040-04 note Shield, Front Seat Cushion, Inner RH
1986-08 → 1988-08 ended
EL31 —
71861-16040-05 note Shield, Front Seat Cushion, Inner RH
1986-08 → 1988-08 ended
EL31 —
71862 — Shield, Front Seat Cushion, Inner LH
71862-16030-01 note Shield, Front Seat Cushion, Inner LH
1986-08 → 1988-08 ended
EL31 —
71862-16030-04 note Shield, Front Seat Cushion, Inner LH
1986-08 → 1988-08 ended
EL31 —
71862-16030-05 note Shield, Front Seat Cushion, Inner LH
1986-08 → 1988-08 ended
EL31 —
72011 — Adjuster Sub-assy, Front Seat, Outer RH
72011-16010 Adjuster Sub-assy, Front Seat, Outer RH
1986-08 → 1988-08 ended
EL31 5DS —
72011-16030 Adjuster Sub-assy, Front Seat, Outer RH
1986-08 → 1988-08 ended
EL31 B CND;EL31 (2DS,3DS) +1 —
72011-16130 Adjuster Sub-assy, Front Seat, Outer RH
1987-08 → 1988-08 ended
EL31 B —
72011A — Spring, Tension (FOR FRONT SEAT ADJUSTER OUTER)
90506-14039 Spring, Tension (FOR FRONT SEAT ADJUSTER OUTER)
1986-08 → 1988-08 ended
EL31 —
72011B — Spring, Tension (FOR FRONT SEAT ADJUSTER OUTER)
90506-18036 Spring, Tension (FOR FRONT SEAT ADJUSTER OUTER)
1986-08 → 1988-08 ended
EL31 2DS,3DS —
72012 — Adjuster Sub-assy, Front Seat, Outer LH
72012-16110 Adjuster Sub-assy, Front Seat, Outer LH
1986-08 → 1988-08 ended
EL31 —
72021 — Adjuster Sub-assy, Front Seat, Inner RH
72021-16090 Adjuster Sub-assy, Front Seat, Inner RH
1986-08 → 1988-08 ended
EL31 5DS —
72021-16090 Adjuster Sub-assy, Front Seat, Inner RH
1987-08 → 1988-08 ended
EL31 B —
72021-16100 Adjuster Sub-assy, Front Seat, Inner RH
1986-08 → 1988-08 ended
EL31 B CND;EL31 (2DS,3DS) +1 —
72022 — Adjuster Sub-assy, Front Seat, Inner LH
72022-16110 Adjuster Sub-assy, Front Seat, Inner LH
1986-08 → 1988-08 ended
EL31 —
72137 — Cover, Seat Track, Outer RH
72137-16020 Cover, Seat Track, Outer RH
1986-08 → 1988-08 ended
EL31 —
72138 — Cover, Seat Track, Outer LH
72138-16020 Cover, Seat Track, Outer LH
1986-08 → 1988-08 ended
EL31 —
72157 — Cover, Seat Track Bracket, Inner
72157-16020 note Cover, Seat Track Bracket, Inner
1986-08 → 1988-08 ended
EL31 —
72158-16020 note Cover, Seat Track Bracket, Inner
1986-08 → 1988-08 ended
EL31 —
72210 — Cable Assy, Seat Track Control
72210-16140 Cable Assy, Seat Track Control
1986-08 → 1988-08 ended
EL31 B CND;EL31 (2DS,3DS) +1 —
72301 — Wire Sub-assy, Seat Track Equalizing
72301-16060 Wire Sub-assy, Seat Track Equalizing
1986-08 → 1988-08 ended
EL31 —
72501C — Pipe Sub-assy, Reclining Connecting
72501-12030 Pipe Sub-assy, Reclining Connecting
1986-08 → 1988-08 ended
EL31 —
72524 — Handle, Reclining Adjuster Release
72525-12090-11 note Handle, Reclining Adjuster Release
1986-08 → 1988-08 ended
EL31 —
72525-12090-24 note Handle, Reclining Adjuster Release
1986-08 → 1988-08 ended
EL31 —
72525-12090-25 note Handle, Reclining Adjuster Release
1986-08 → 1988-08 ended
EL31 —
72526-12030-11 note Handle, Reclining Adjuster Release
1986-08 → 1988-08 ended
EL31 —
72526-12030-24 note Handle, Reclining Adjuster Release
1986-08 → 1988-08 ended
EL31 —
72526-12030-25 note Handle, Reclining Adjuster Release
1986-08 → 1988-08 ended
EL31 —
72553 — Cover, Reclining Pedal
72553-12040 Cover, Reclining Pedal
1986-08 → 1988-08 ended
EL31 2DS,3DS —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
