Toyota Tercel

1986-08 → 1988-08 · chassis EL31 · catalogue 141410 · Europe

Discontinued model Data version 1989-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

23 part groups · 3 illustrations

Illustrations

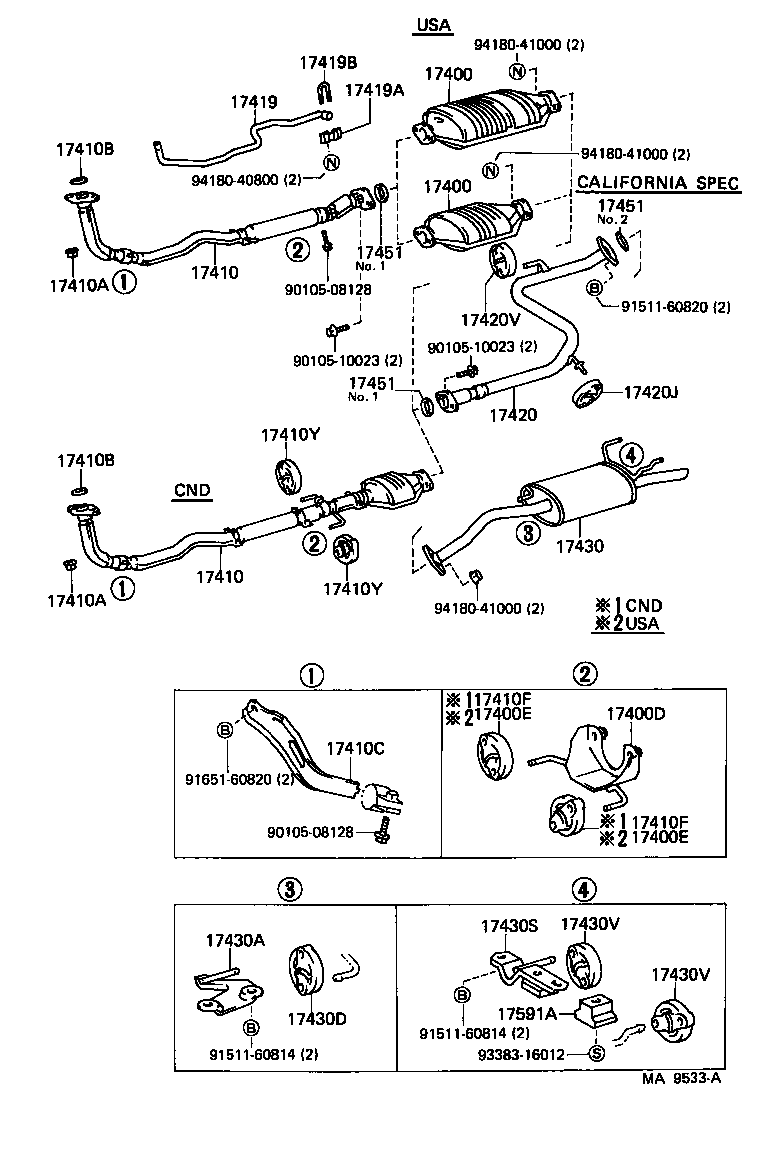

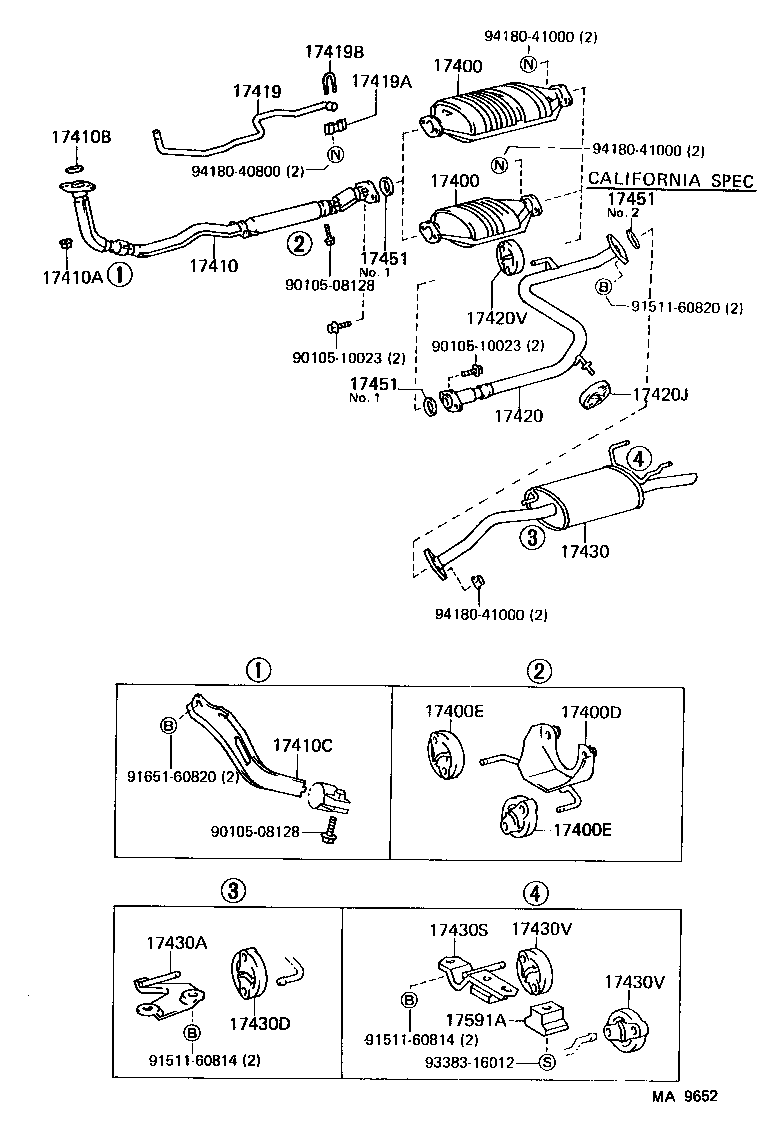

Figure MA9040B MA9040B 1986-08 → 1987-08 Figure MA9533A MA9533A 1987-01 → 1987-08 Figure MA9652 MA9652 1987-08 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17400D Bracket, Catalytic Converter Support
17400E Ring, Catalytic Converter
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410F Bolt OR Ring, Exhaust Pipe Front (FOR FRONT)
17410T Bolt OR Ring, Exhaust Pipe Front (FOR CENTER)
17410Y Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
17419 Pipe, Converter Air Inlet
17419A Clamp, NO.1(FOR CONVERTER AIR INLET PIPE)
17419B Bolt, U(FOR CONVERTER AIR INLET PIPE)
17420 Pipe Assy, Exhaust, Center
17420J Bolt OR Ring, Exhaust Pipe Center
17420V Bolt OR Ring, Exhaust Pipe Center, Rear
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
17591A Stopper, Exhaust Pipe Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
