Toyota Tercel

1986-08 → 1988-08 · chassis EL31 · catalogue 141410 · Europe

Discontinued model Data version 1989-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

16 part groups · 8 illustrations

Illustrations

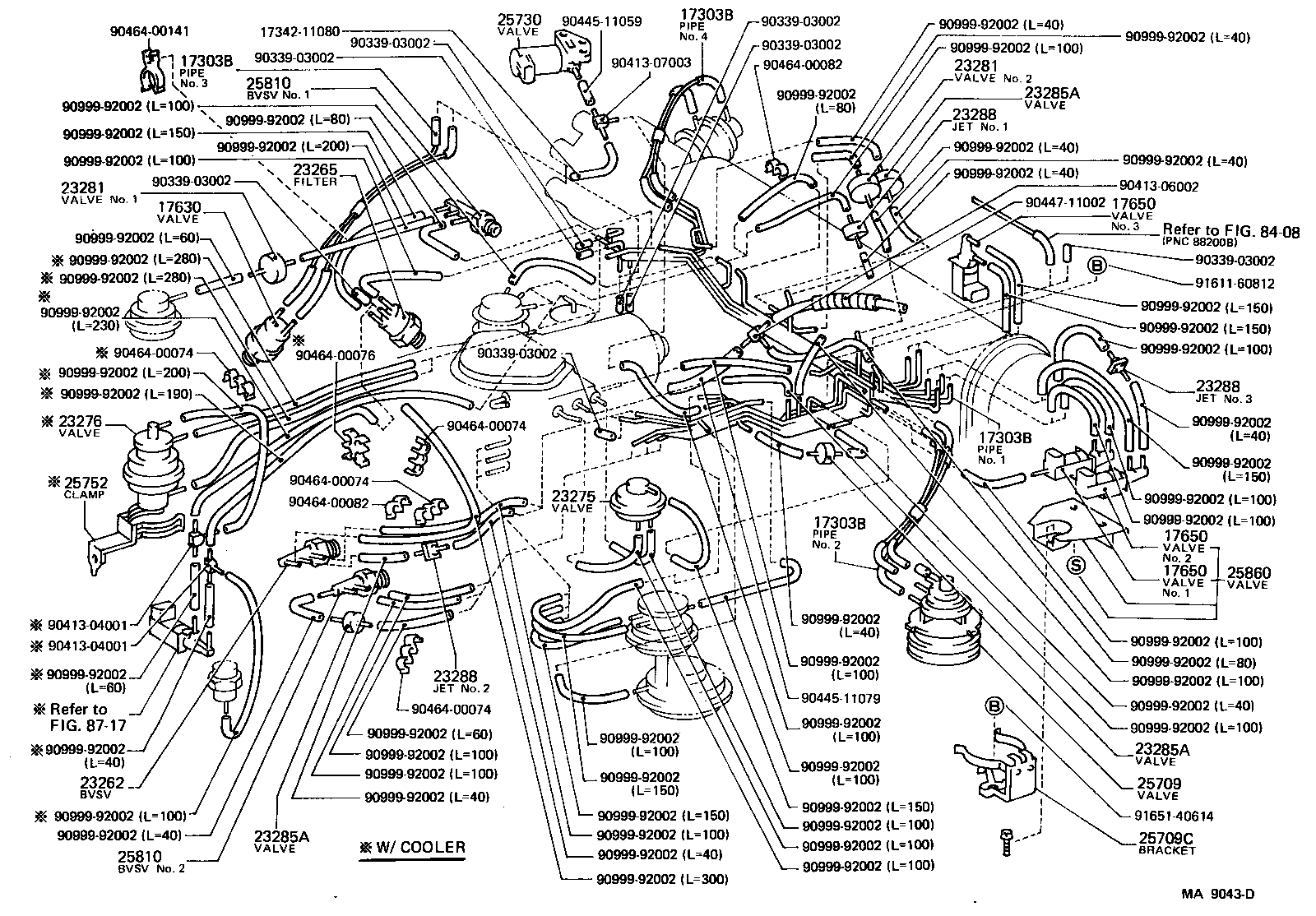

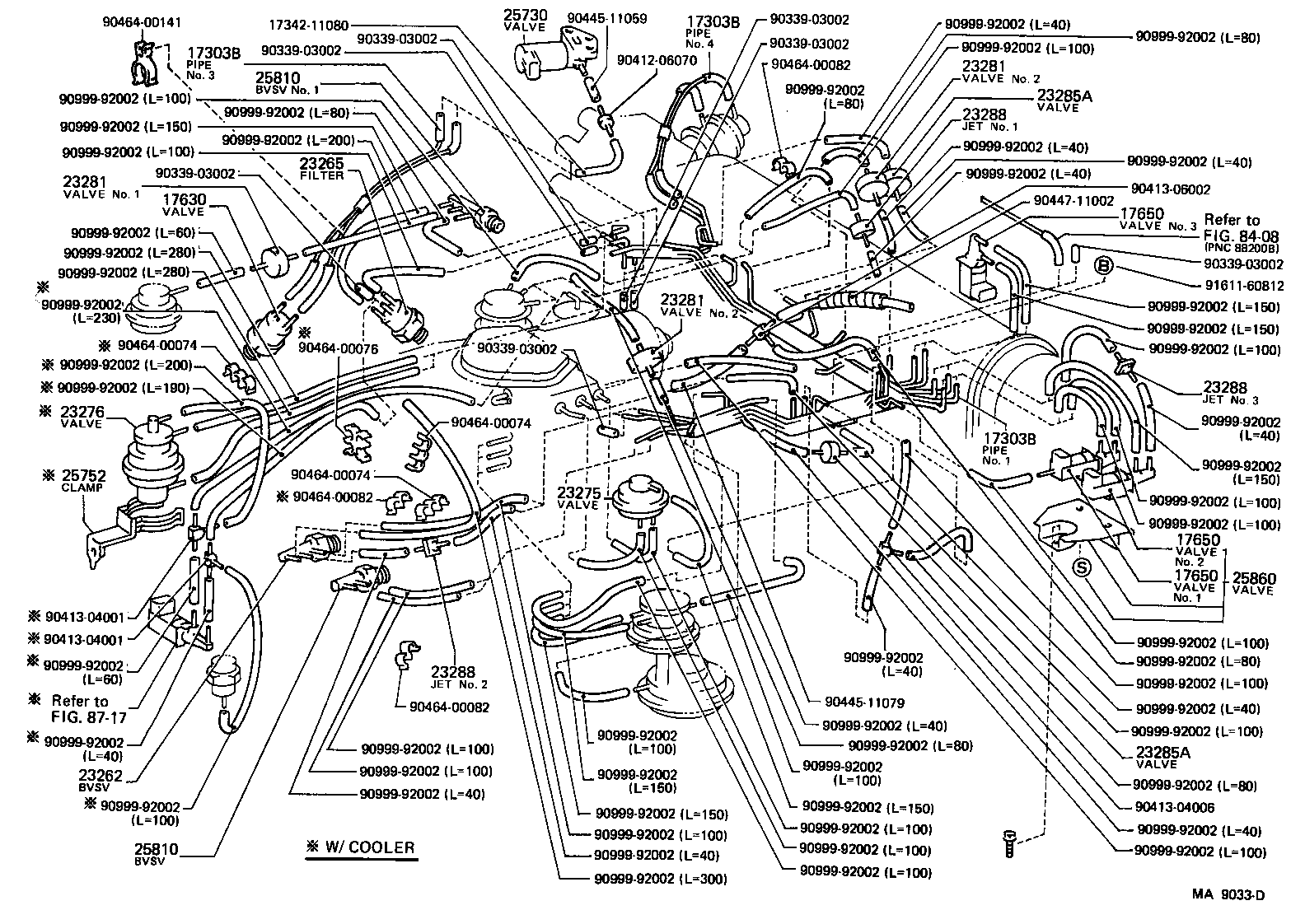

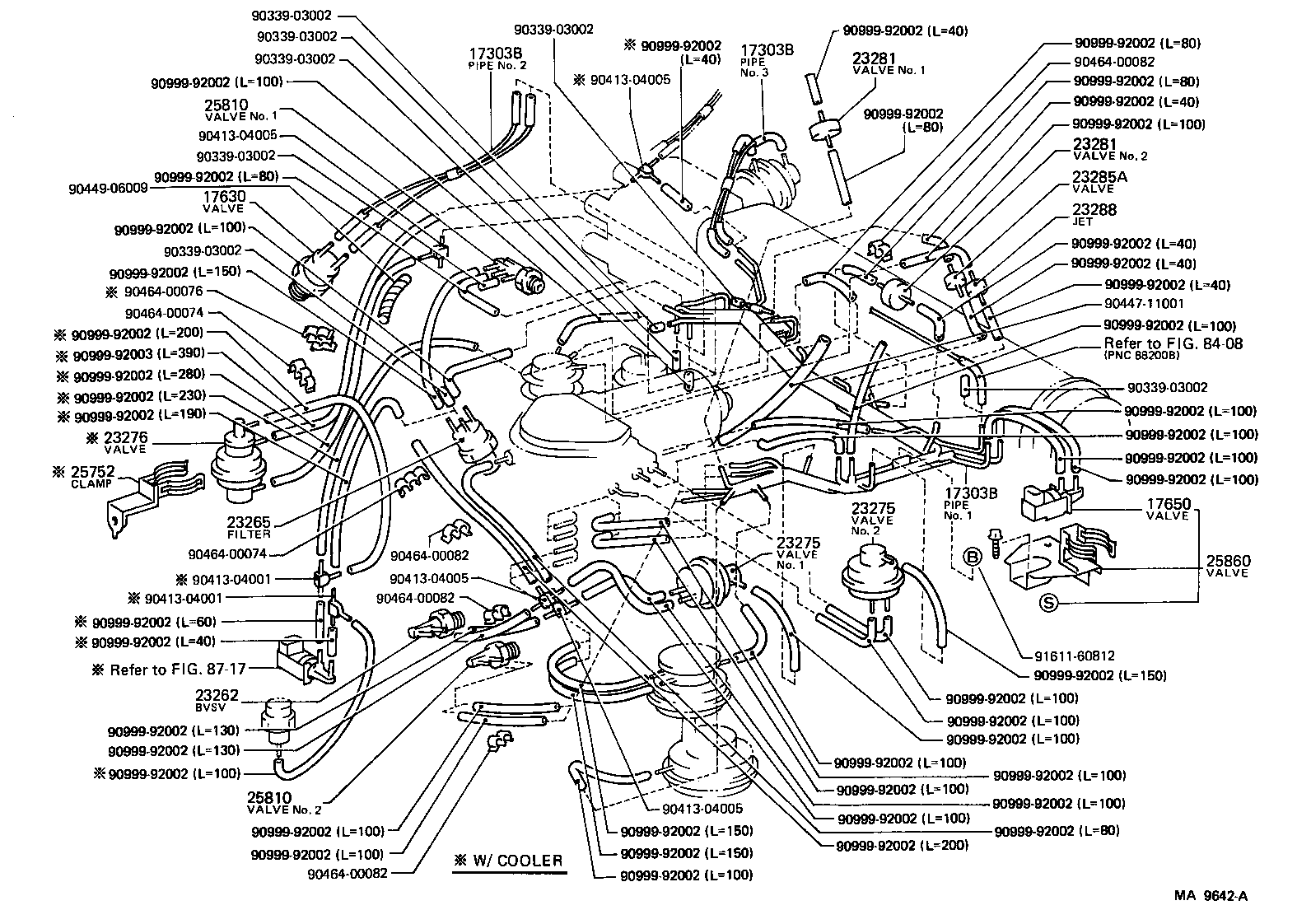

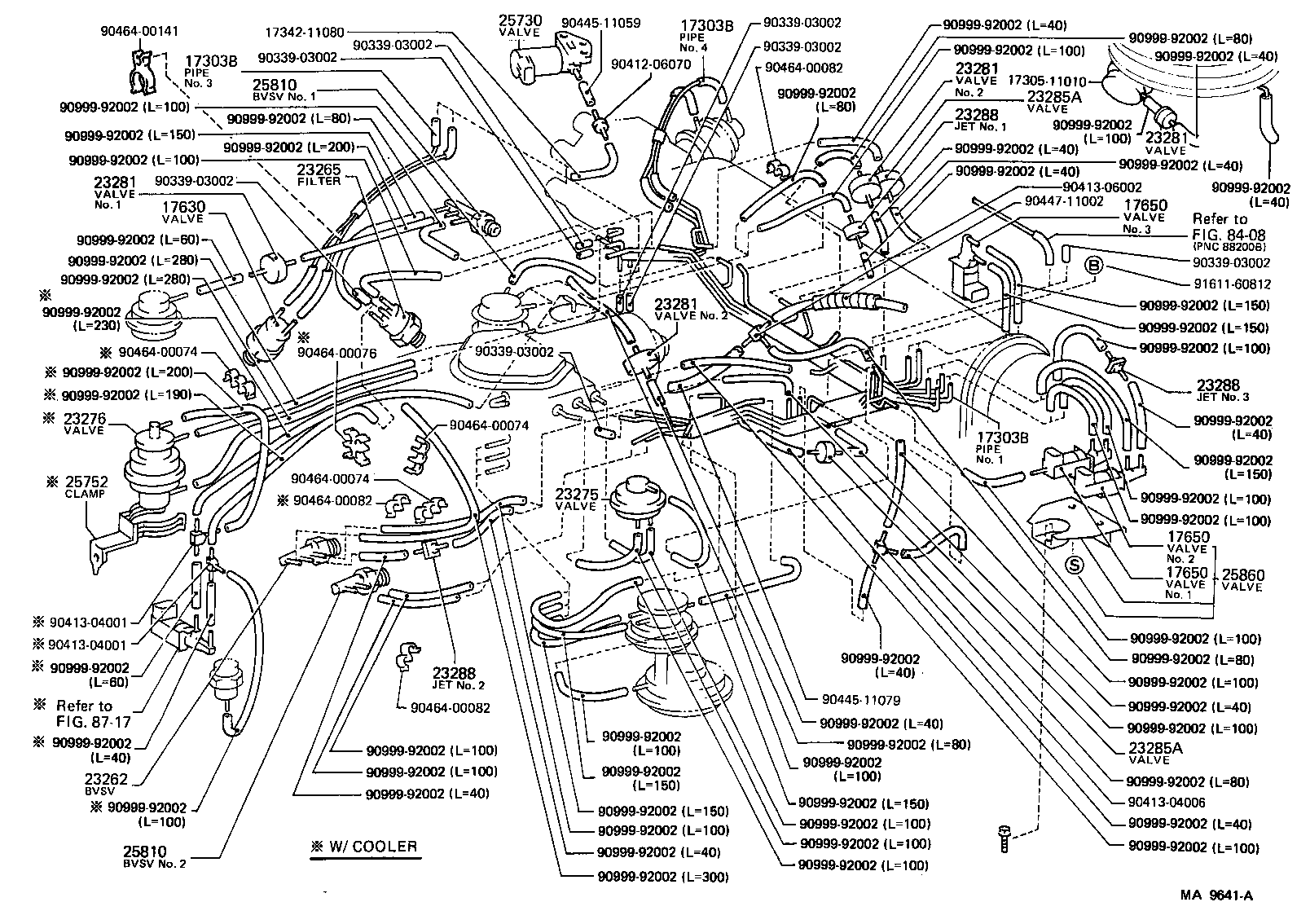

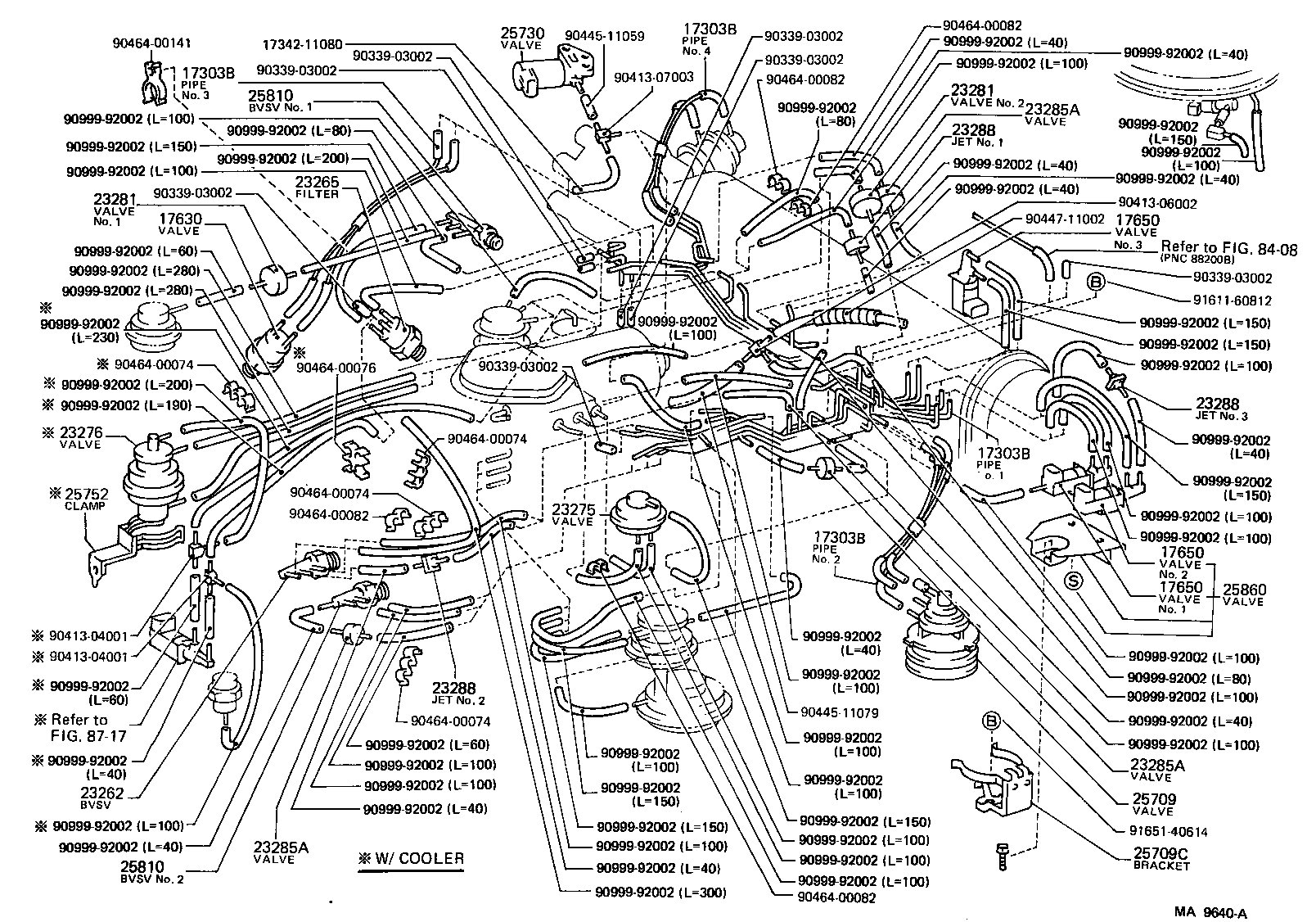

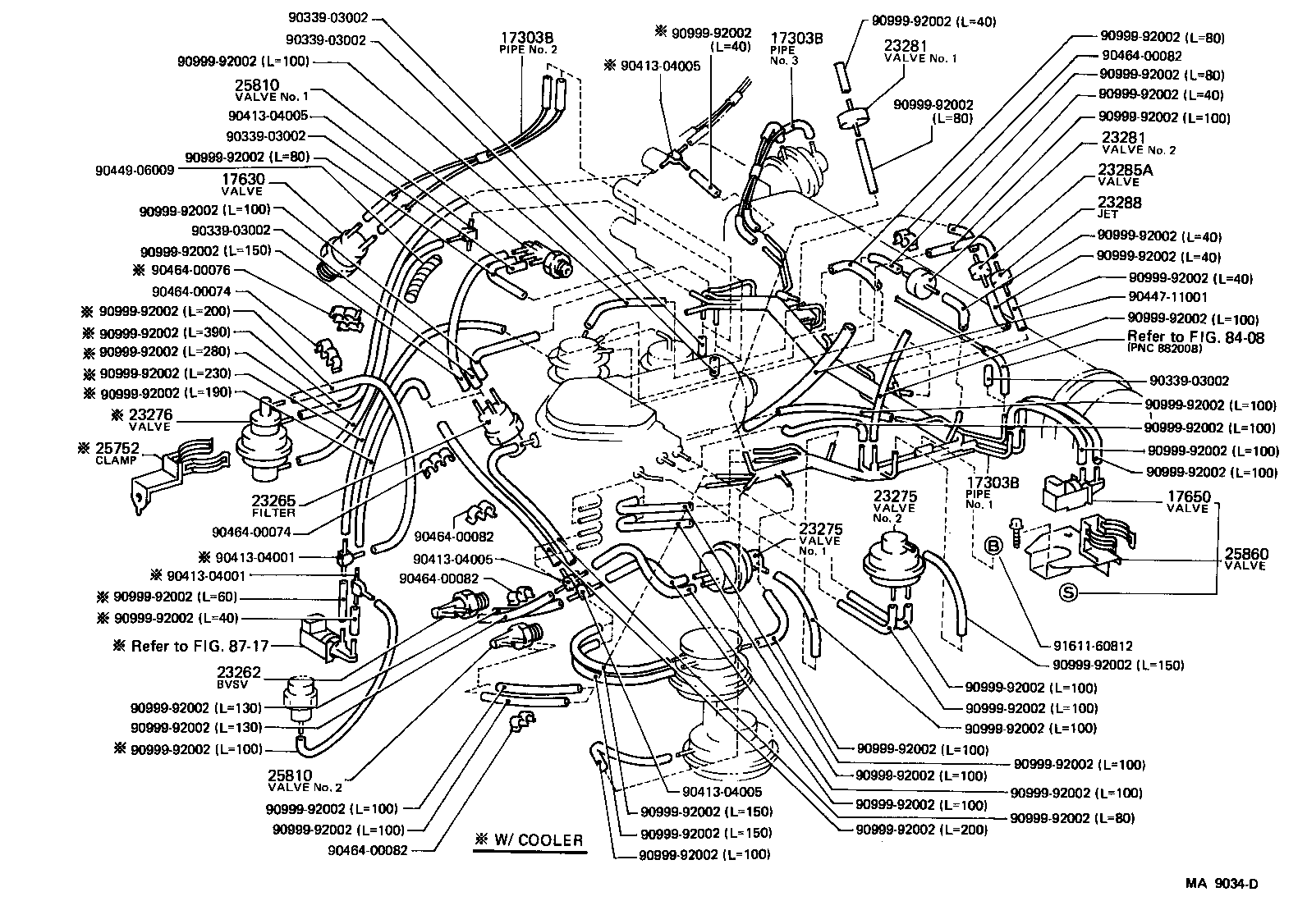

Figure MA9504B MA9504B 1986-08 → — Figure MA9043D MA9043D 1986-08 → 1987-01 Figure MA9640A MA9640A 1987-01 → 1987-08 Figure MA9640A MA9640A 1987-08 → — Figure MA9033D MA9033D 1986-08 → 1987-01 Figure MA9641A MA9641A 1987-01 → 1987-08 Figure MA9034D MA9034D 1986-08 → 1987-01 Figure MA9642A MA9642A 1987-01 → 1987-08

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
23288 Jet, NO.1
25709 Valve Sub-assy, High Altitude Compensator
25709C Bracket, High Altitude Compensator
25730 Valve Assy, Electric Bleed Air Control
25752 Clamp, Vacuum Control Valve, NO.2
25810 Valve Assy, Bimetal
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
