Toyota Tercel

1986-08 → 1988-08 · chassis EL31 · catalogue 141410 · Europe

Discontinued model Data version 1989-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

15 part groups · 6 illustrations

Illustrations

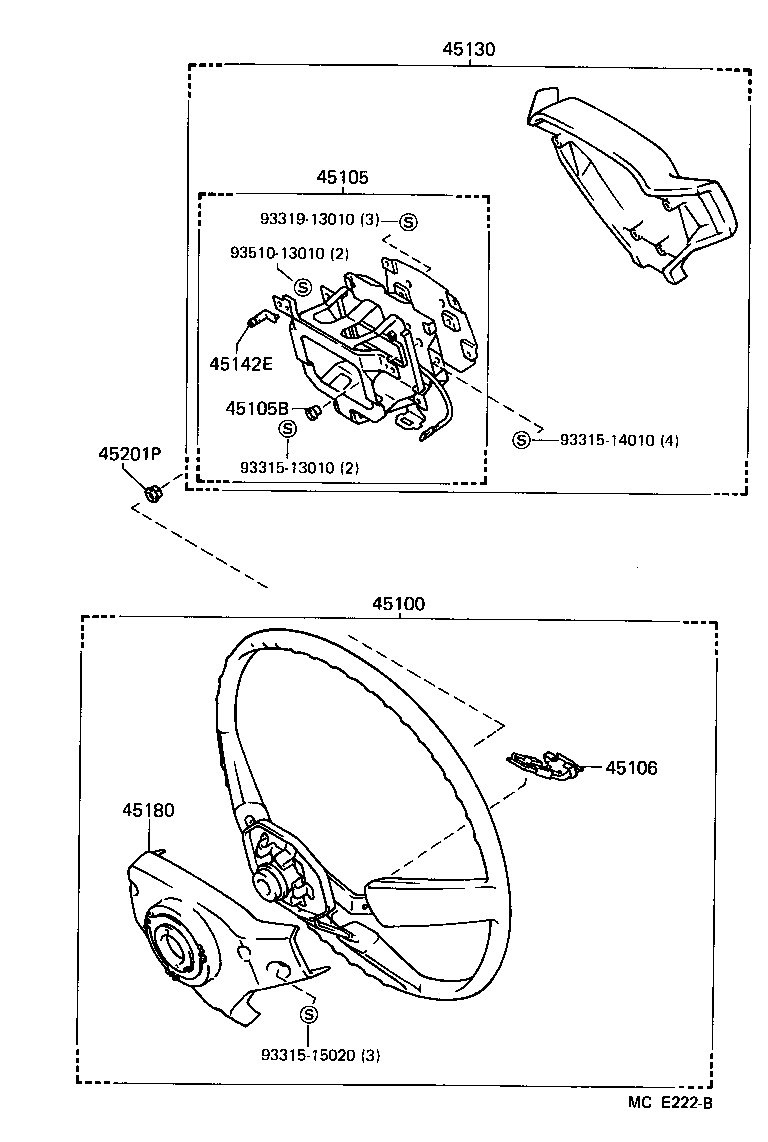

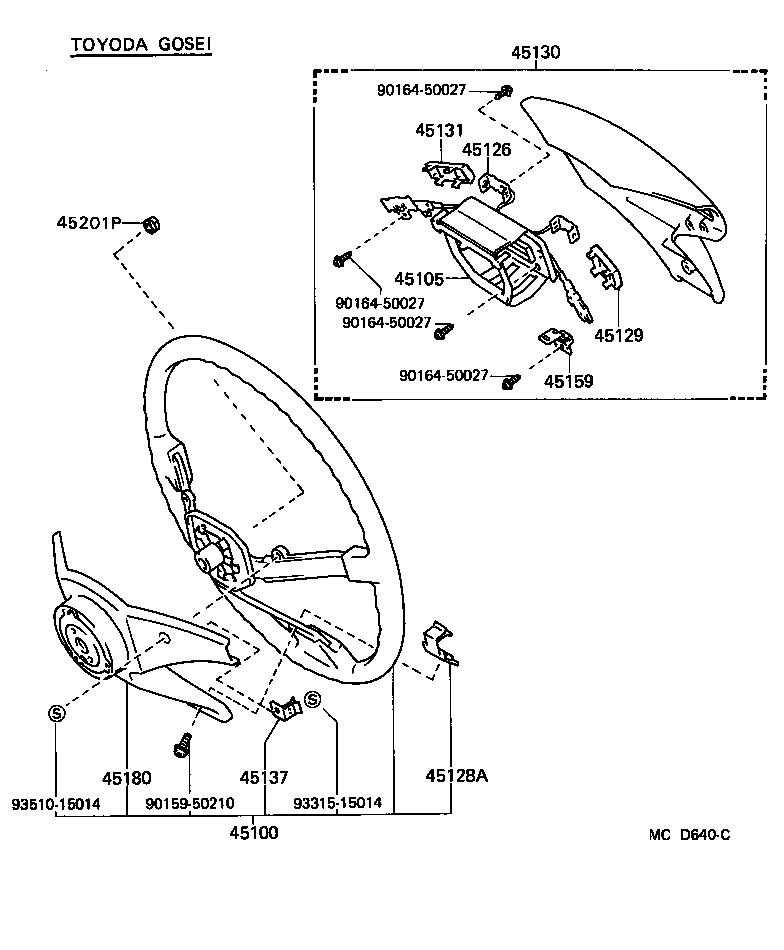

Figure MCD400 MCD400 1986-08 → — Figure MCD639A MCD639A 1986-08 → 1987-08 Figure MCD639A MCD639A 1987-08 → — Figure MCD640C MCD640C 1986-08 → 1987-08 Figure MCD640C MCD640C 1987-08 → — Figure MCE222B MCE222B 1987-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45106 Plate Sub-assy, Horn Button Stopper
45125 Mark, Steering Wheel Pad
45126 Plate, Steering Wheel Pad Set
45128A Spring, Steering Wheel Pad Set
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45137 Plate, Horn Button Stop
45142E Piece, Horn Contact
45159 Retainer, Steering Wheel Pad Set
45180 Cover Sub-assy, Steering Wheel
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
