Toyota Tercel

1986-08 → 1988-08 · chassis EL31 · catalogue 141410 · Europe

Discontinued model Data version 1989-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

9 part groups · 2 illustrations

Illustrations

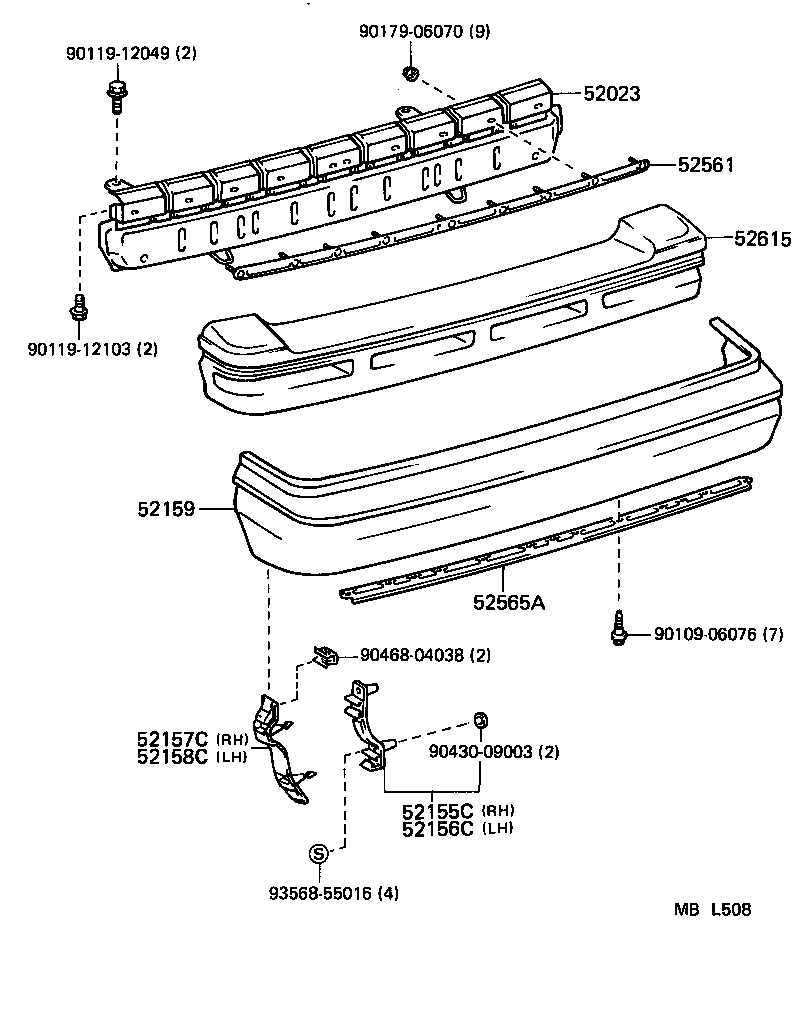

Figure MBK801A MBK801A 1986-08 → — Figure MBL508 MBL508 1987-01 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52155C Support, Rear Bumper Side, NO.1 RH
52156C Support, Rear Bumper Side, NO.1 LH
52157C Support, Rear Bumper Side, NO.2 RH
52158C Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52615 Absorber, Rear Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
