Toyota Tercel
1986-08 → 1988-08 · chassis EL31 · catalogue 141410 · Europe
Discontinued model
Data version 1989-01

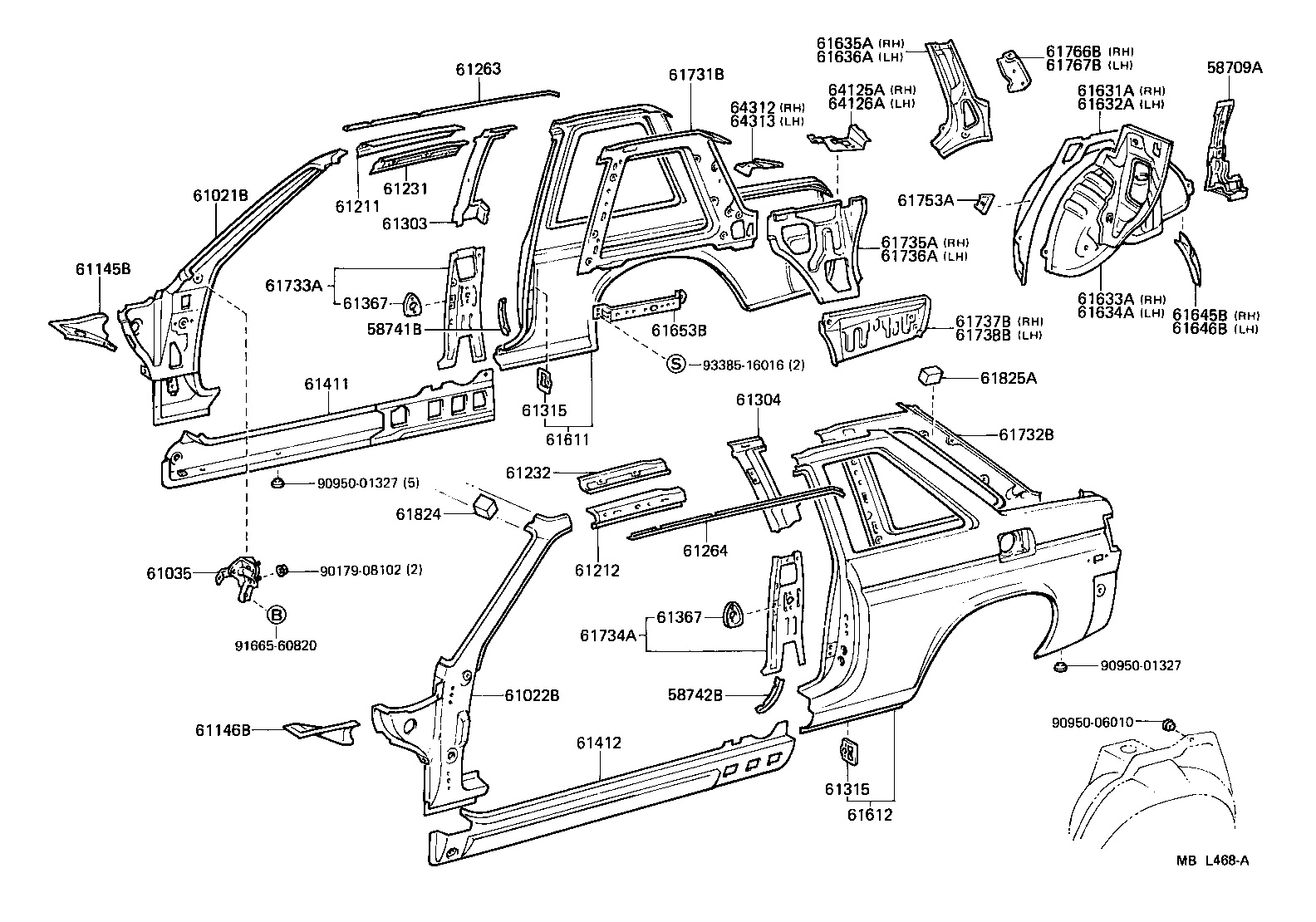

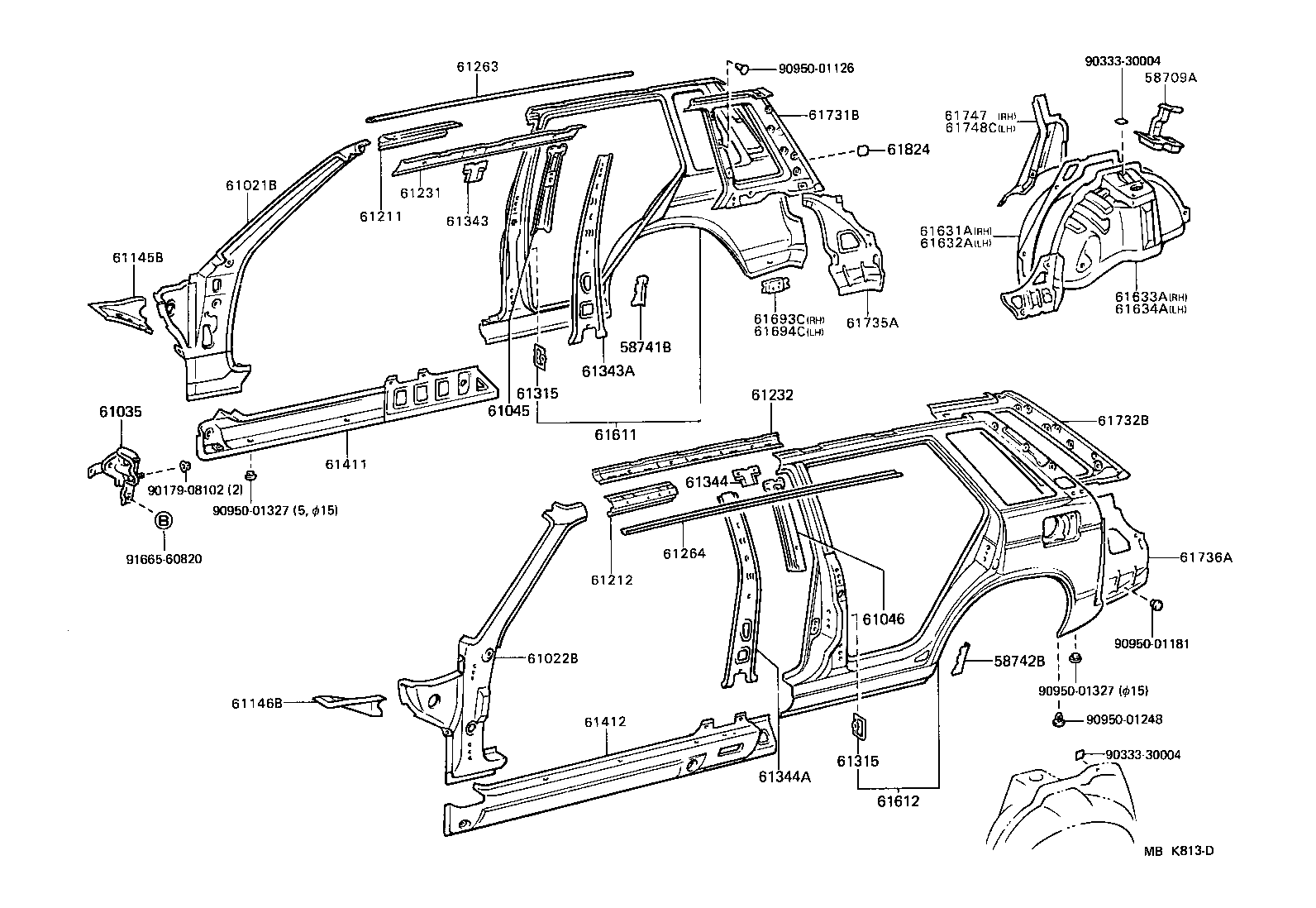

Side Member
62 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58709A | Carrier Sub-assy, Jack |
| 58741B | Protector, Quarter Panel, RH |
| 58742B | Protector, Quarter Panel, LH |
| 61021B | Pillar Sub-assy, Front Body, Upper RH |
| 61022B | Pillar Sub-assy, Front Body, Upper LH |
| 61035 | Bracket Sub-assy, Instrument Panel TO Cowl Side, RH |
| 61045 | Reinforce Sub-assy, Belt TO Center Pillar, RH |
| 61046 | Reinforce Sub-assy, Belt TO Center Pillar, LH |
| 61145B | Gusset, Front Body Pillar, Lower RH |
| 61146B | Gusset, Front Body Pillar, Lower LH |
| 61211 | Rail, Roof Side, Outer RH |
| 61212 | Rail, Roof Side, Outer LH |
| 61231 | Rail, Roof Side, Inner RH |
| 61232 | Rail, Roof Side, Inner LH |
| 61263 | Channel, Roof Drip, Rear RH |
| 61264 | Channel, Roof Drip, Rear LH |
| 61277B | Joint, Roof Drip Channel |
| 61281 | Bracket, Sliding Roof Housing Mounting, NO.1 |
| 61283 | Bracket, Sliding Roof Housing Mounting, NO.3 RH |
| 61284 | Bracket, Sliding Roof Housing Mounting, NO.3 LH |
| 61303 | Reinforce Sub-assy, Center Body Pillar, Upper RH |
| 61304 | Reinforce Sub-assy, Center Body Pillar, Upper LH |
| 61315 | Retainer, Door Lock Striker Plate |
| 61343 | Pillar, Center Body, Inner Upper RH |
| 61343A | Pillar, Center Body, Inner RH |
| 61344 | Pillar, Center Body, Inner Upper LH |
| 61344A | Pillar, Center Body, Inner LH |
| 61367 | Reinforcement, Belt Anchor TO Center Pillar, Lower |
| 61411 | Panel, Rocker, Outer RH |
| 61412 | Panel, Rocker, Outer LH |
| 61611 | Panel, Quarter, RH |
| 61612 | Panel, Quarter, LH |
| 61631A | Panel, Quarter Wheel House, Outer RH |
| 61632A | Panel, Quarter Wheel House, Outer LH |
| 61633A | Panel, Quarter Wheel House, Inner RH |
| 61634A | Panel, Quarter Wheel House, Inner LH |
| 61635A | Brace, Quarter Wheel House, RH |
| 61636A | Brace, Quarter Wheel House, LH |
| 61645B | Gusset, Quarter Wheel House, Rear RH |
| 61646B | Gusset, Quarter Wheel House, Rear LH |
| 61653B | Bracket, Deck Side Trim |
| 61693C | Retainer, Rear Seatback Set, RH |
| 61694C | Retainer, Rear Seatback Set, LH |
| 61731B | Panel, Roof Side, Inner RH |
| 61732B | Panel, Roof Side, Inner LH |
| 61733A | Panel, Roof Side, Inner Front RH |
| 61734A | Panel, Roof Side, Inner Front LH |
| 61735A | Panel, Roof Side, Inner Rear RH |
| 61736A | Panel, Roof Side, Inner Rear LH |
| 61737B | Panel, Roof Side, Inner Lower RH |
| 61738B | Panel, Roof Side, Inner Lower LH |
| 61747 | Brace, Roof Side Inner TO Wheel House, RH |
| 61748C | Brace, Roof Side Inner TO Wheel House, LH |
| 61753A | Retainer, Quarter Trim, Lower |
| 61766B | Reinforcement, Belt Anchor TO Roof Side, Inner RH |
| 61767B | Reinforcement, Belt Anchor TO Roof Side, Inner LH |
| 61824 | Plate, Noise Control, NO.1 |
| 61825A | Plate, Noise Control, NO.2 |
| 64125A | Bracket, Upper Back Panel, RH |
| 64126A | Bracket, Upper Back Panel, LH |
| 64312 | Bracket, Package Tray, RH |
| 64313 | Bracket, Package Tray, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
