Toyota Tercel
1986-08 → 1988-08 · chassis EL31 · catalogue 141410 · Europe
Discontinued model
Data version 1989-01

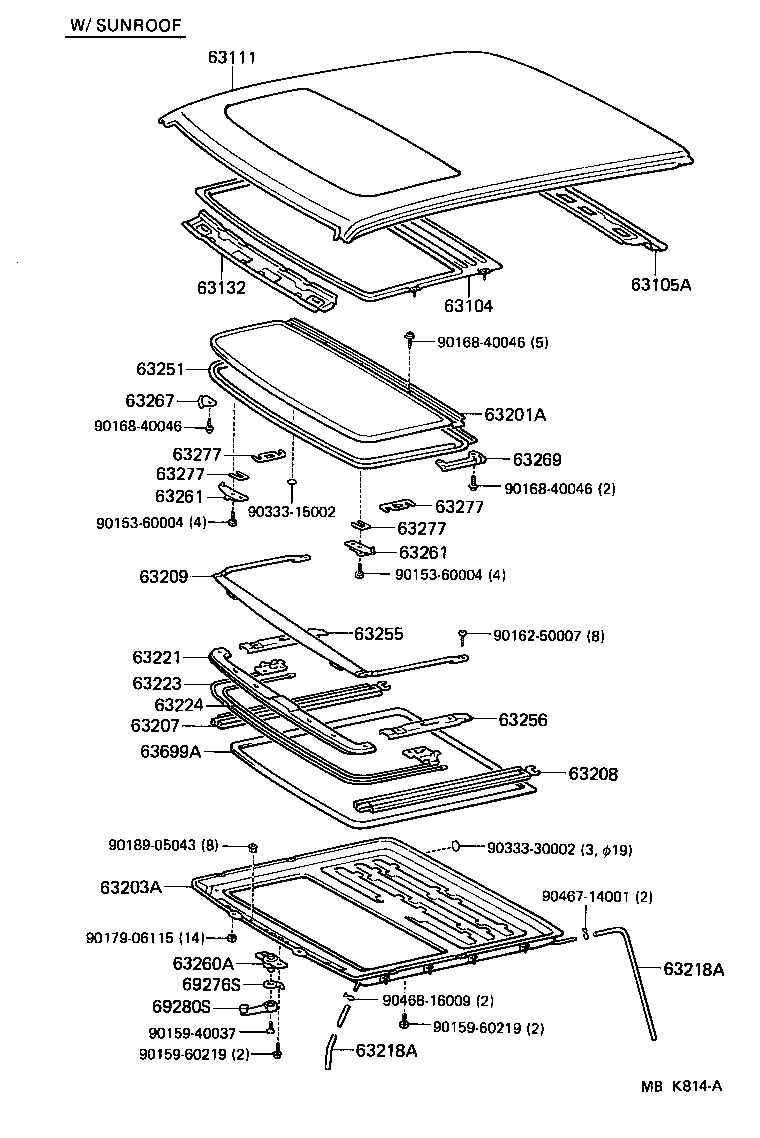

Roof Panel & Back Window Glass
29 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63104 | Reinforcement Sub-assy, Roof Panel, Center |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63132 | Panel, Windshield Header, Inner |
| 63132A | Damper, Windshield Header Panel |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63201A | Panel Sub-assy, Sliding Roof OR Removable Roof |
| 63203A | Housing Sub-assy, Sliding Roof OR Removable Roof |
| 63207 | Rail Sub-assy, Sliding Roof Guide, RH |
| 63208 | Rail Sub-assy, Sliding Roof Guide, LH |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63251 | Weatherstrip, Sliding Roof Panel OR Removable Roof |
| 63255 | Cover, Sliding Roof Guide Rail, RH |
| 63256 | Cover, Sliding Roof Guide Rail, LH |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63261 | Shoe, Sliding Roof, Front |
| 63267 | Protector, Sliding Roof Weatherstrip |
| 63269 | Retainer, Sliding Roof Weatherstrip |
| 63277 | Shim, Sliding Roof Rail |
| 63699A | Seal, Sliding Roof Guide Rail |
| 64101 | Panel Sub-assy, Upper Back |
| 64811 | Glass, Back Window |
| 64831 | Weatherstrip, Back Window Glass |
| 69276S | Bezel, Sliding Roof Regulator Handle |
| 69280S | Handle Assy, Sliding Roof Regulator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
