Toyota Tercel

1986-08 → 1988-08 · chassis EL31 · catalogue 141410 · Europe

Discontinued model Data version 1989-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board & Door Opening Trim Moulding

32 part groups · 3 illustrations

Illustrations

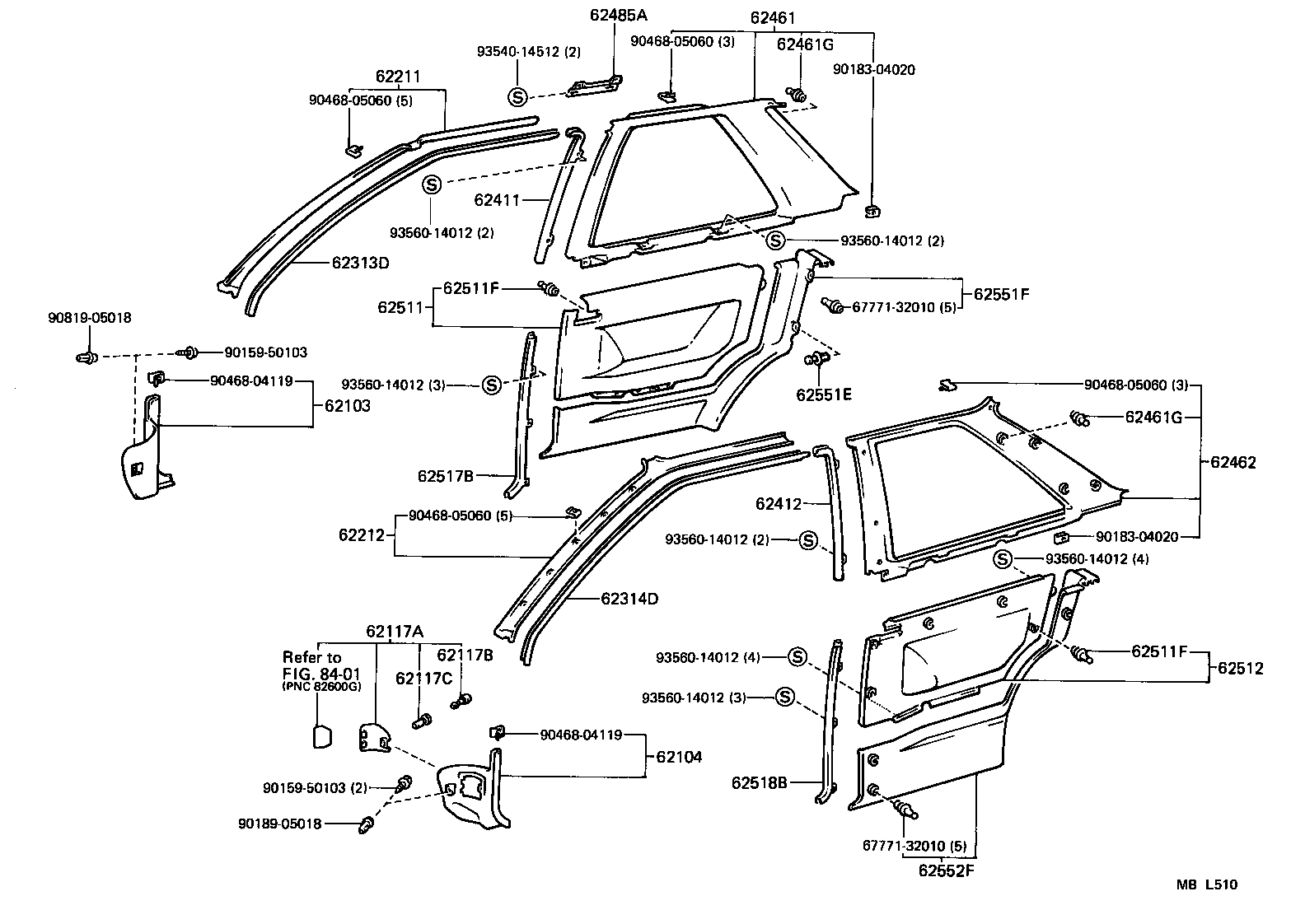

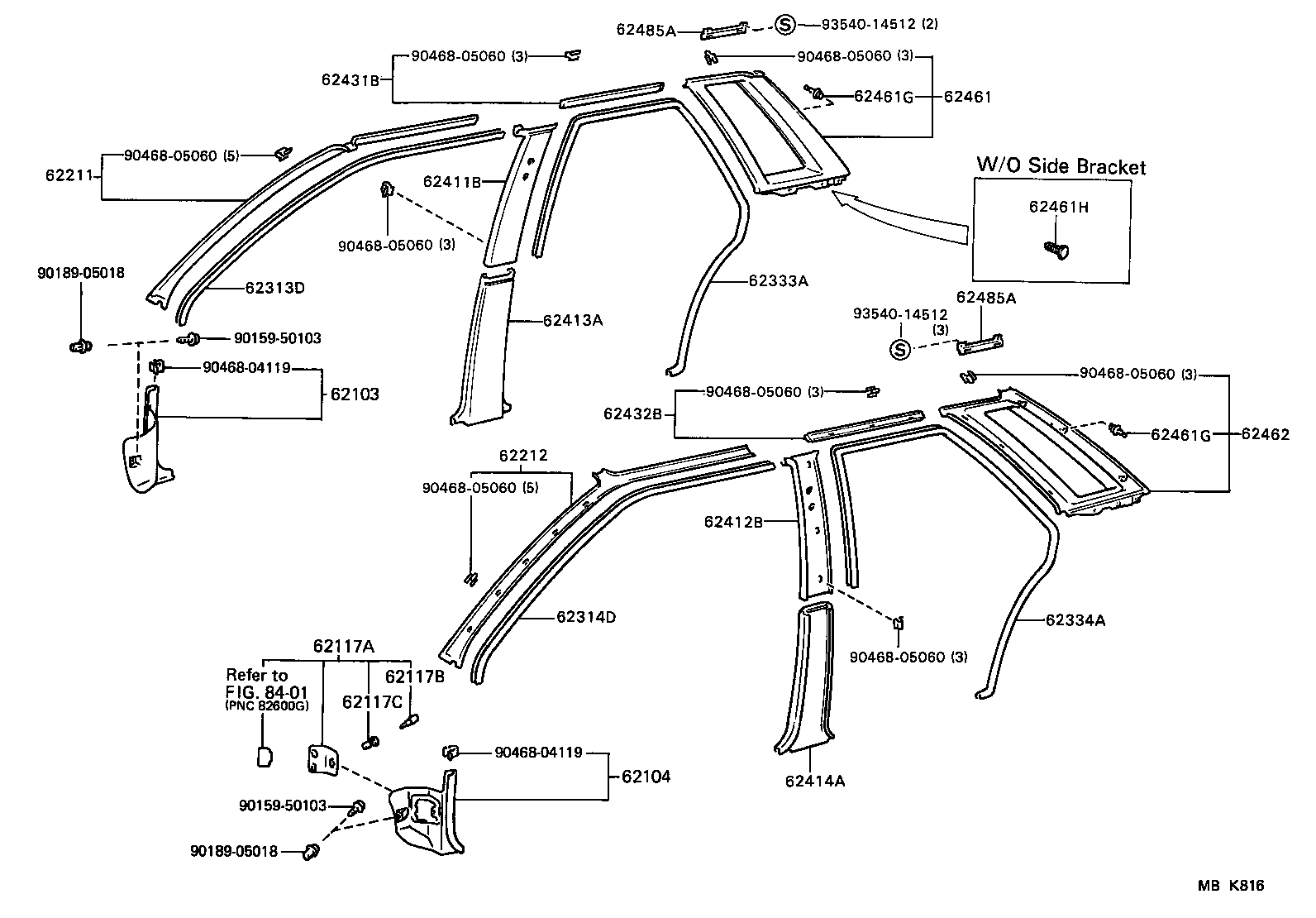

Figure MBK815A MBK815A 1986-08 → — Figure MBK816 MBK816 1986-08 → — Figure MBL510 MBL510 1987-01 → —

Part groups

PNCDescription
62103 Board Sub-assy, Cowl Side Trim, RH
62104 Board Sub-assy, Cowl Side Trim, LH
62117A Cover, Cowl Side Trim Service Hole
62117B Clip, NO.1(FOR COWL SIDE TRIM)
62117C Clip, NO.2(FOR COWL SIDE TRIM)
62211 Garnish, Front Pillar, RH
62212 Garnish, Front Pillar, LH
62313D Trim, Front Door Opening, RH
62314D Trim, Front Door Opening, LH
62333A Trim, Rear Door Opening, RH
62334A Trim, Rear Door Opening, LH
62411 Garnish, Center Pillar, RH
62411B Garnish, Center Pillar, Upper RH
62412 Garnish, Center Pillar, LH
62412B Garnish, Center Pillar, Upper LH
62413A Garnish, Center Pillar, Lower RH
62414A Garnish, Center Pillar, Lower LH
62431B Garnish, Roof Side Rail, NO.1 RH
62432B Garnish, Roof Side Rail, NO.1 LH
62461 Garnish, Roof Side Trim, RH
62461G Retainer, Door Trim
62461H Clip (FOR ROOF SIDE INNER GARNISH)
62462 Garnish, Roof Side Trim, LH
62485A Retainer, Roof Side Inner Garnish
62511 Board, Quarter Inside Trim, RH
62511F Retainer (FOR QUARTER INSIDE TRIM BOARD)
62512 Board, Quarter Inside Trim, LH
62517B Base, Quarter Trim, Front RH
62518B Base, Quarter Trim, Front LH
62551E Clip(FOR REAR SEAT SIDE GARNISH)
62551F Garnish, Rear Seat Side, RH
62552F Garnish, Rear Seat Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
