Toyota Tercel
1986-08 → 1988-08 · chassis EL31 · catalogue 141410 · Europe
Discontinued model
Data version 1989-01
Front Door Panel & Glass
33 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

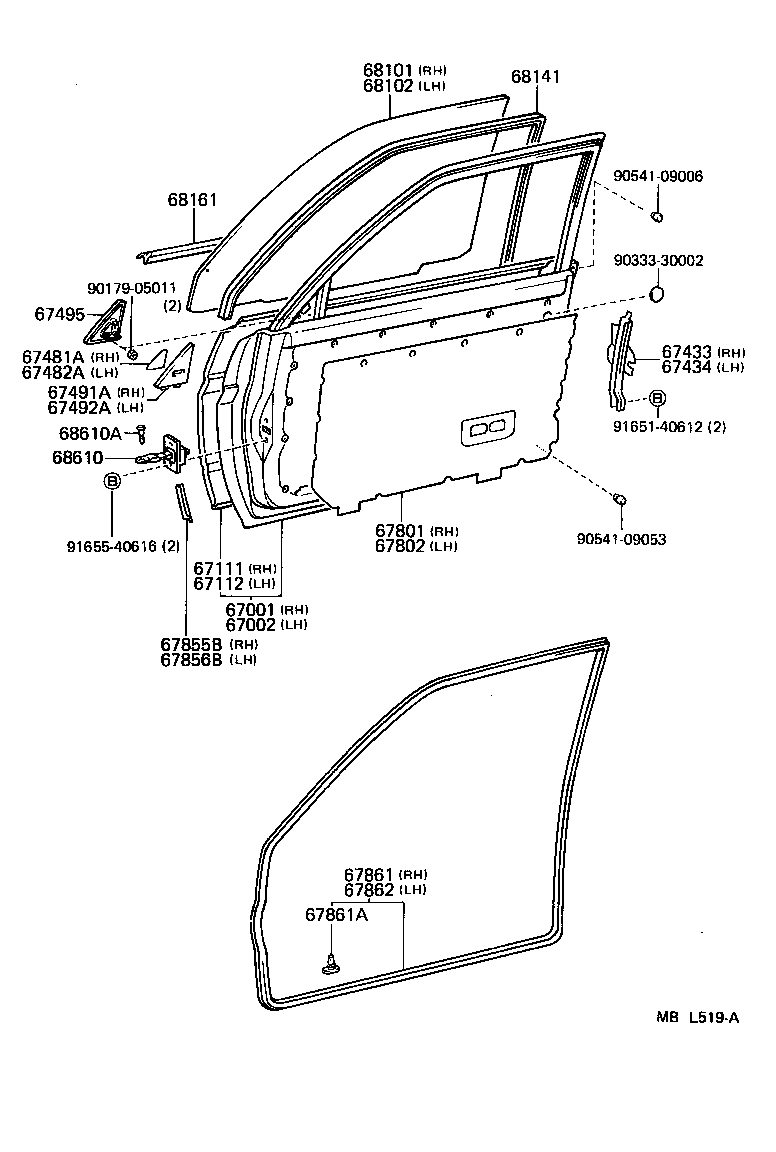

| 67001 | Panel Sub-assy, Front Door, RH |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67433 | Frame, Front Door Window, Rear Lower RH |
| 67434 | Frame, Front Door Window, Rear Lower LH |
| 67481A | Seal, Front Door Front Lower Frame, RH |
| 67482A | Seal, Front Door Front Lower Frame, LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67495 | Cover, Front Door Front Lower Frame, Upper |

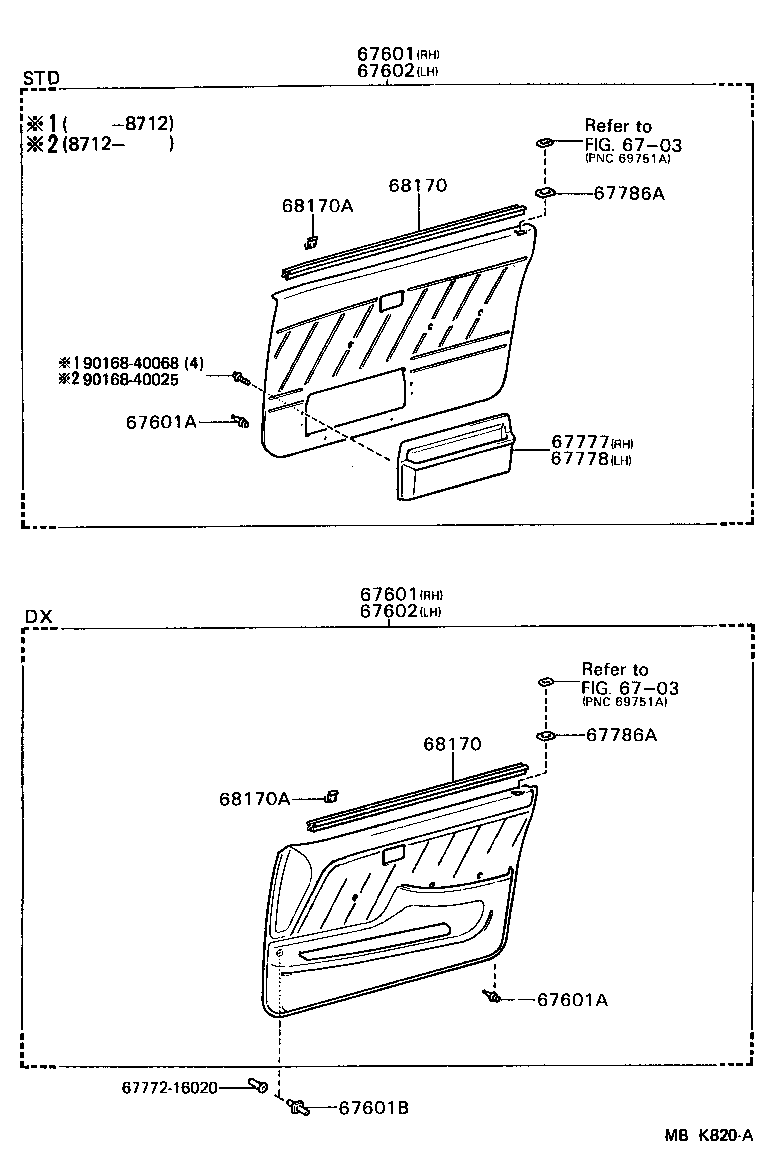

| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67777 | Pocket, Front Door Trim, RH |
| 67778 | Pocket, Front Door Trim, LH |
| 67786A | Retainer, Door Locking Button Collar(FOR FRONT DOOR) |
| 67801 | Cover Sub-assy, Front Door Hole, NO.1 RH |
| 67802 | Cover Sub-assy, Front Door Hole, NO.1 LH |
| 67855B | Protector, Front Door Panel, RH |
| 67856B | Protector, Front Door Panel, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67861A | Retainer(FOR FRONT DOOR WEATHERSTRIP) |
| 67862 | Weatherstrip, Front Door, LH |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141 | Run, Front Door Glass |
| 68161 | Weatherstrip, Front Door Glass, Outer |
| 68170 | Weatherstrip Assy, Front Door Glass, Inner |
| 68170A | Clip(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) |
| 68610 | Check Assy, Front Door |
| 68610A | Pin(FOR FRONT DOOR CHECK) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
