Toyota Tercel

1986-08 → 1988-08 · chassis EL31 · catalogue 141410 · Europe

Discontinued model Data version 1989-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Moulding

9 part groups · 2 illustrations

Illustrations

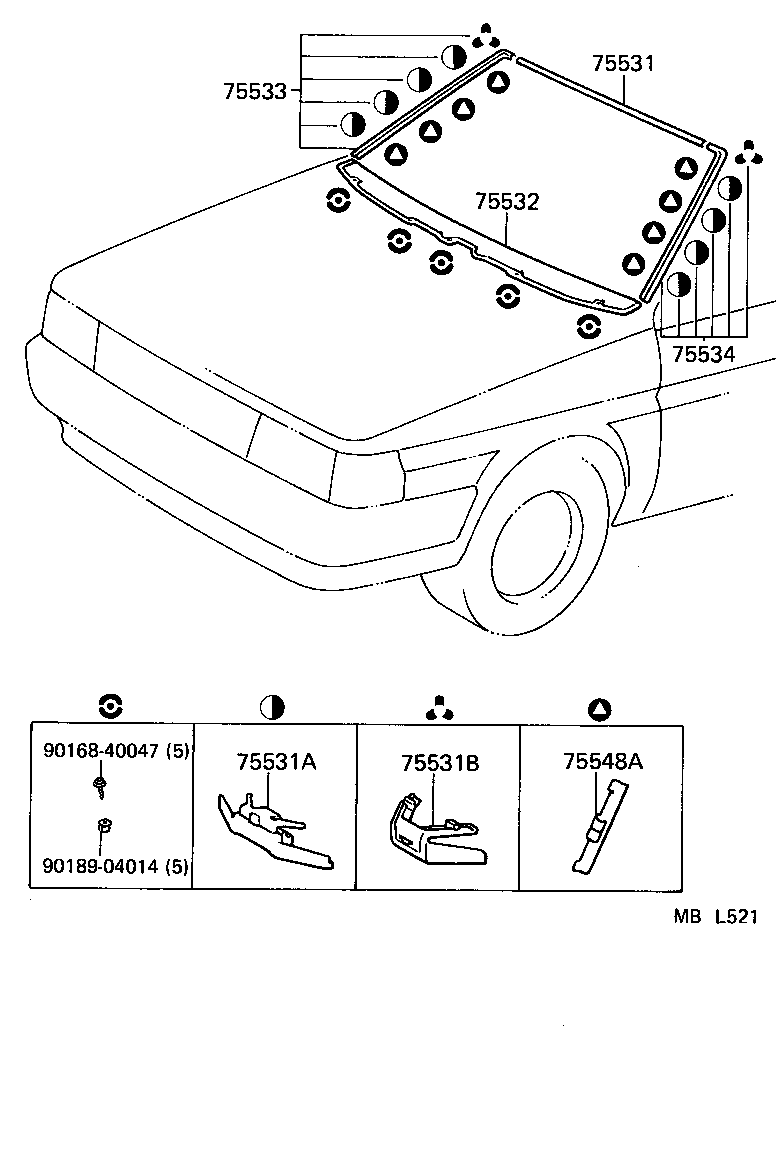

Figure MBK840A MBK840A 1986-08 → — Figure MBL521 MBL521 1987-01 → —

Part groups

PNCDescription
75531 Moulding, Windshield, Outer Upper
75531A Clip, Windshield Moulding Set, NO.1
75531B Clip, Windshield Moulding Set, NO.2
75532 Moulding, Windshield, Lower
75533 Moulding, Windshield, Outside RH
75534 Moulding, Windshield, Outside LH
75535 Moulding, Windshield Corner, Upper RH
75536 Moulding, Windshield Corner, Upper LH
75548A Fastener, Windshield Outside Moulding, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
