Toyota Tercel

1986-08 → 1988-08 · chassis EL31 · catalogue 141410 · Europe

Discontinued model Data version 1989-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

18 part groups · 5 illustrations

Illustrations

Figure MEH360B

MEH360B 1986-08 → —

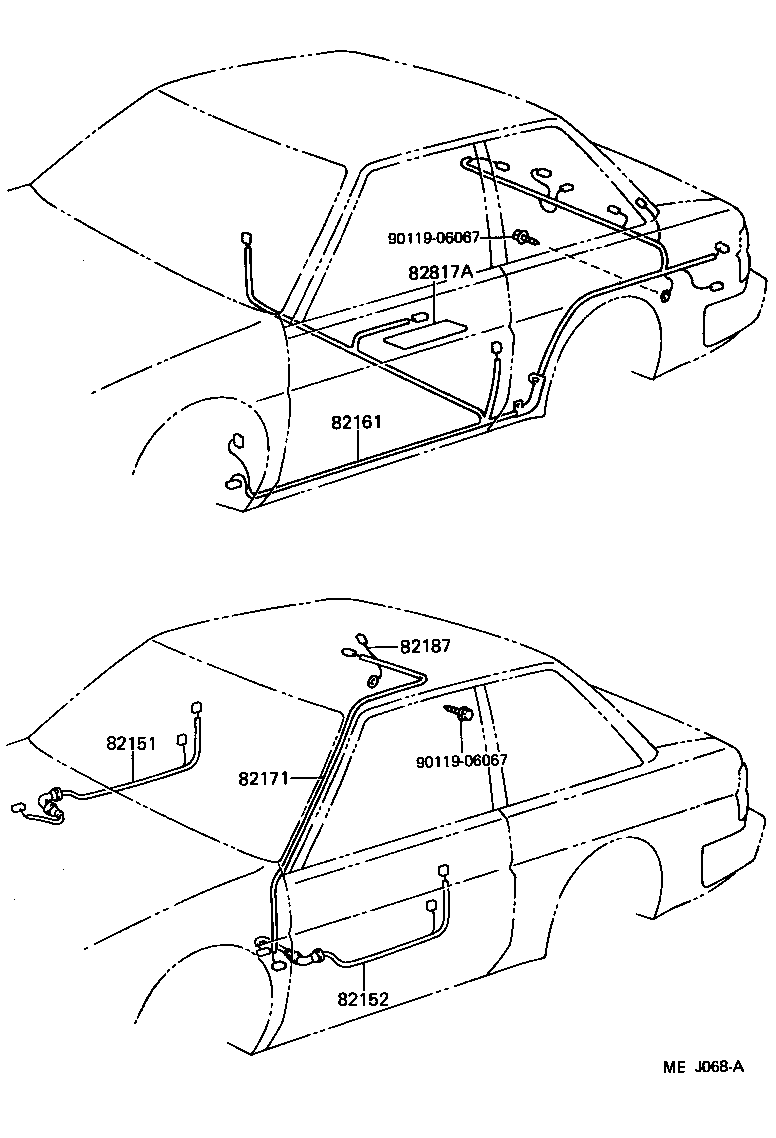

Figure MEJ068A

MEJ068A 1987-01 → —

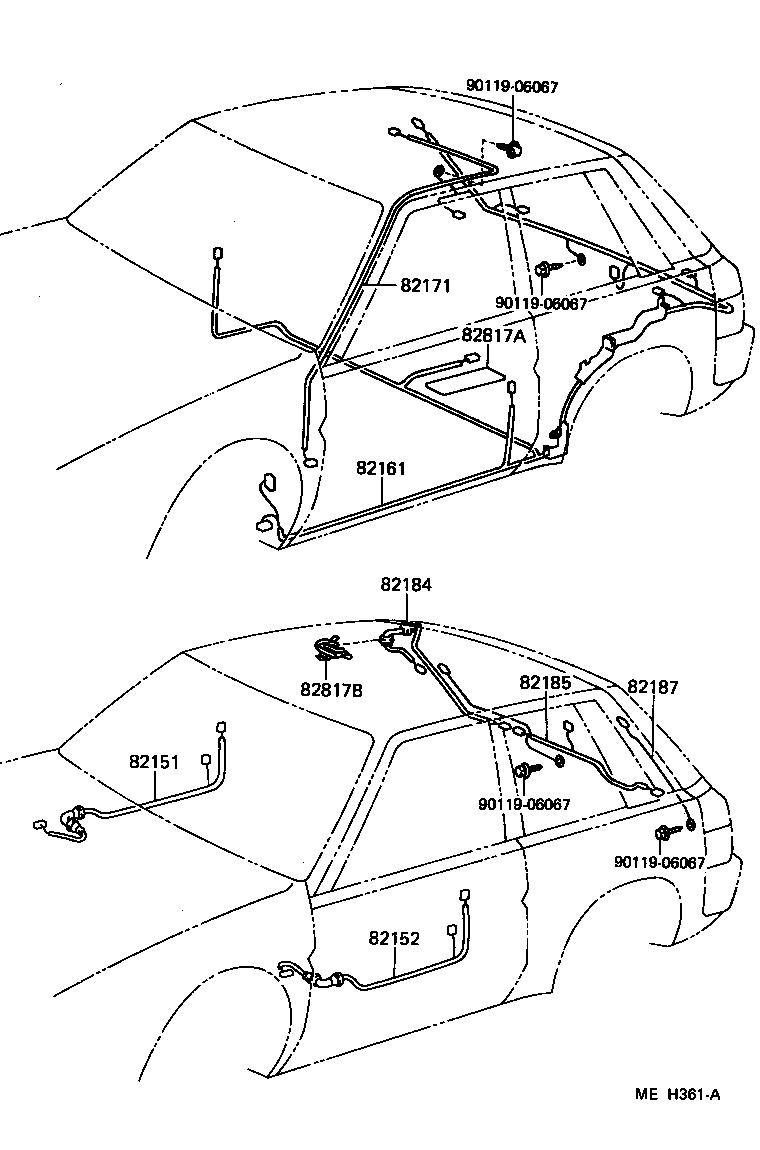

Figure MEH361A

MEH361A 1986-08 → —

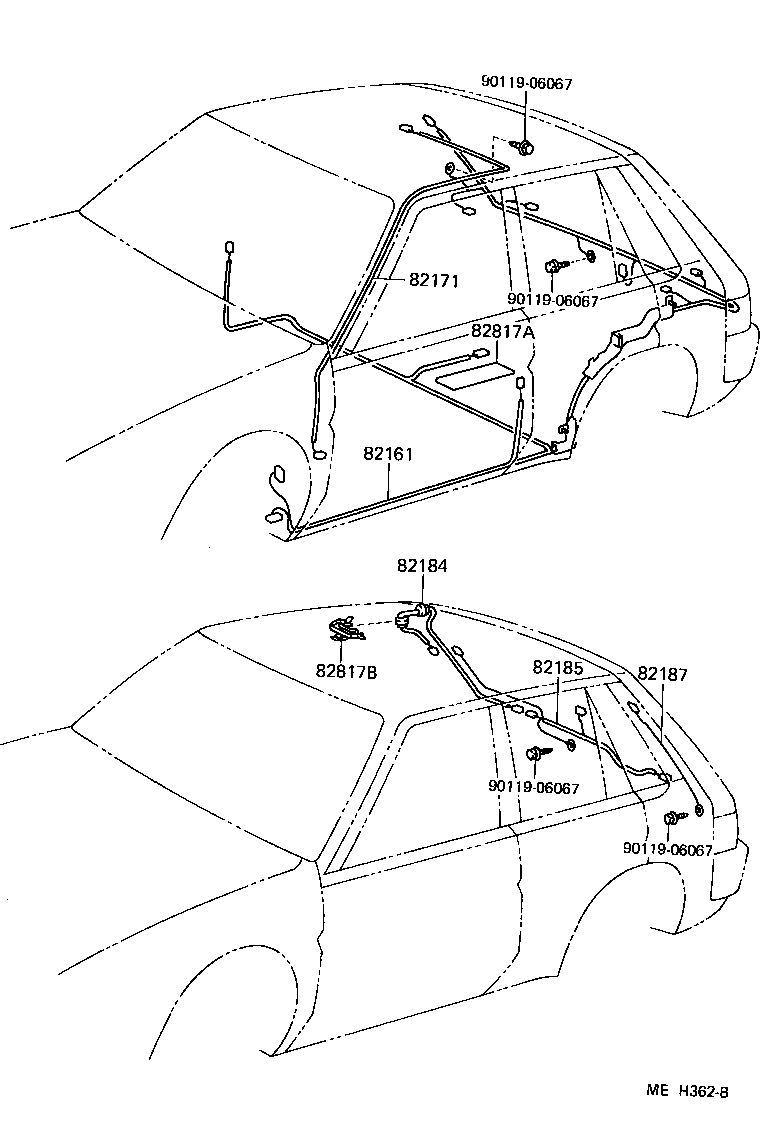

Figure MEH362B

MEH362B 1986-08 → —

Figure MEH363A

MEH363A 1986-08 → —

Part groups

PNC	Description
82001	Cable, Bond, NO.1
82111	Wire, Engine Room Main
82121	Wire, Engine
82131	Wire, Cowl
82151	Wire, Front Door, RH
82152	Wire, Front Door, LH
82161	Wire, Floor
82171	Wire, Roof, NO.1
82184	Wire, Back Door, NO.1
82185	Wire, Back Door, NO.2
82187	Wire, Rear Window, NO.2
82210C	Fusible Link
82345	Diode
82671	Block, Junction
82817	Protector, Wiring Harness, NO.1
82817A	Protector, Wiring Harness, NO.2
82817B	Protector, Wiring Harness, NO.3
82823	Cap, Terminal, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
