Toyota Tercel

1986-08 → 1988-08 · chassis EL31 · catalogue 141410 · Europe

Discontinued model Data version 1989-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

5 part groups · 2 illustrations

Illustrations

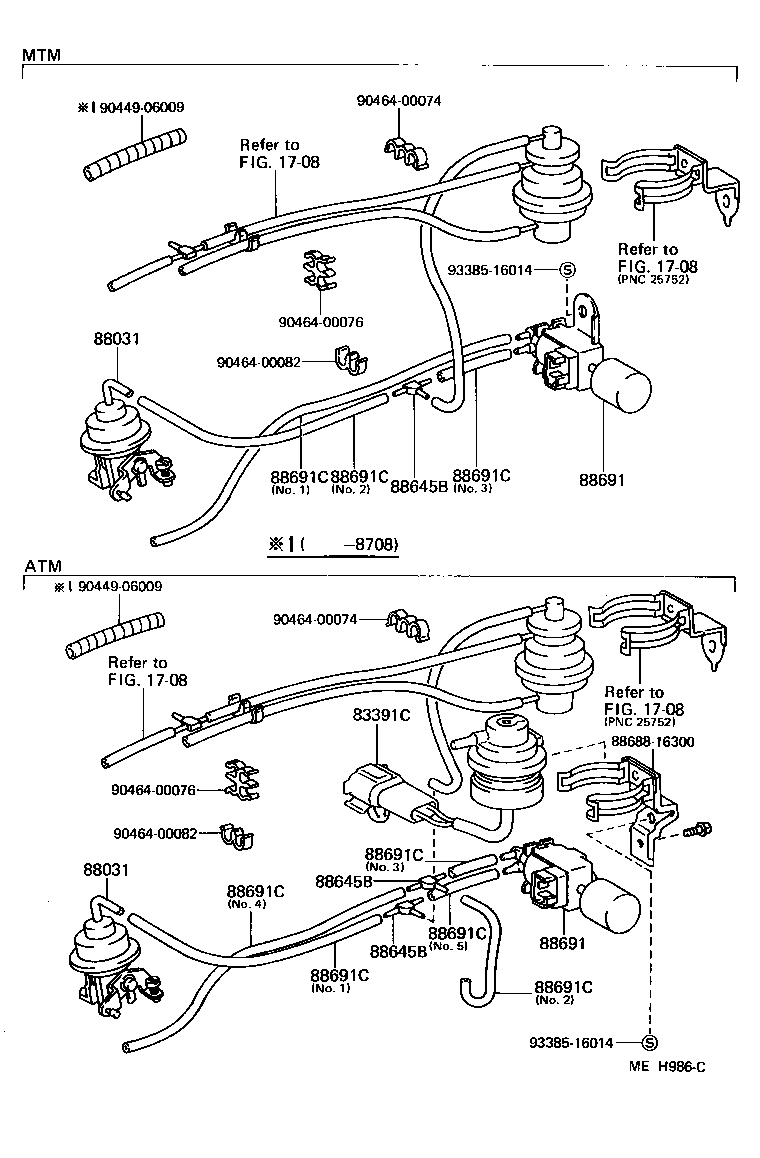

Figure MEH385A MEH385A 1986-08 → — Figure MEH986C MEH986C 1986-08 → —

Part groups

PNCDescription
83391C Switch, Cooler Vacuum
88031 Actuator Set, Idle-up
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
