Toyota Tercel
1986-08 → 1988-08 · chassis EL31 · catalogue 141410 · Europe
Discontinued model
Data version 1989-01
Heating & Air Conditioning - Cooler Piping
35 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 88367 | Shroud, Cooler Blower Fan |
| 88375A | Cap, Service Valve (FOR COOLER PIPE) |
| 88453 | Fan, Cooling (FOR CONDENSER) |
| 88454A | Shroud, Fan |

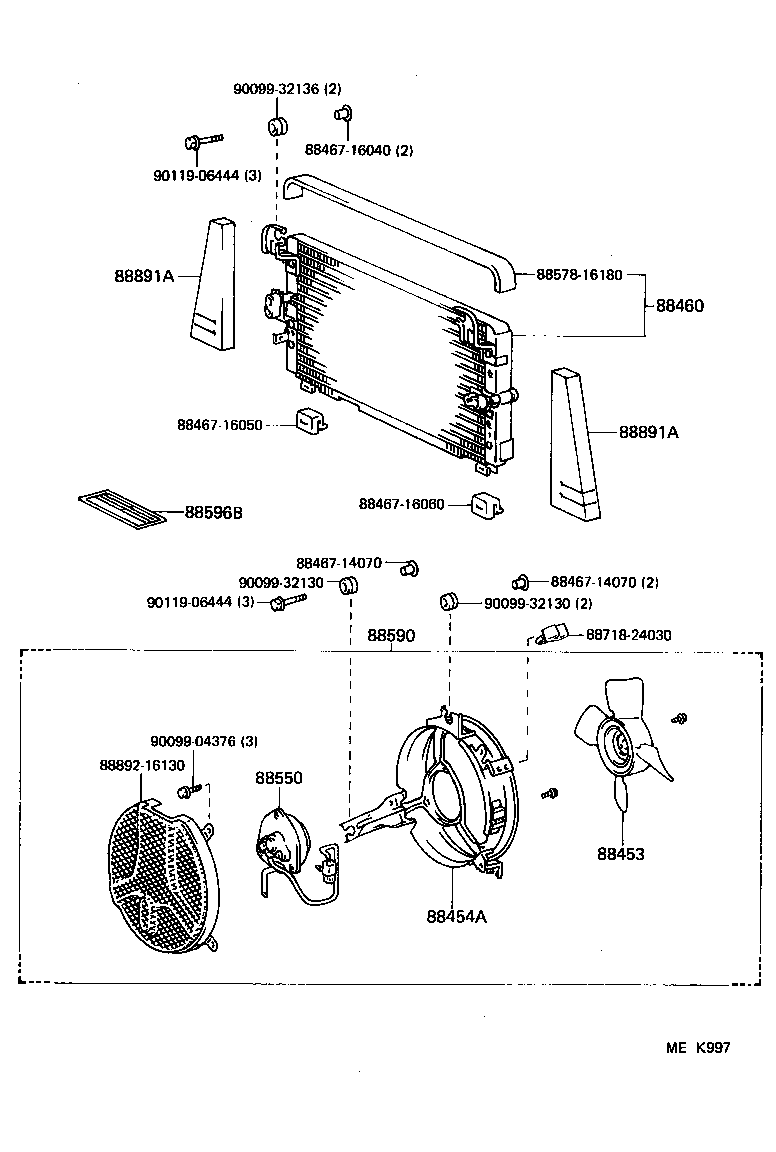

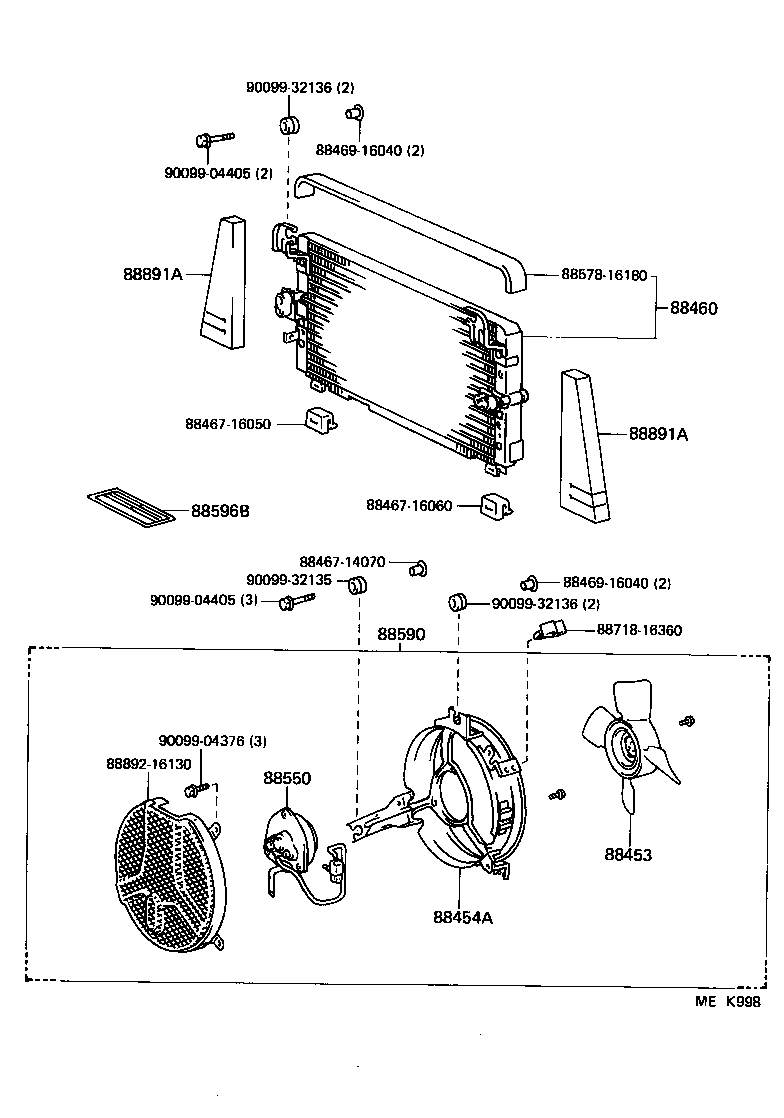

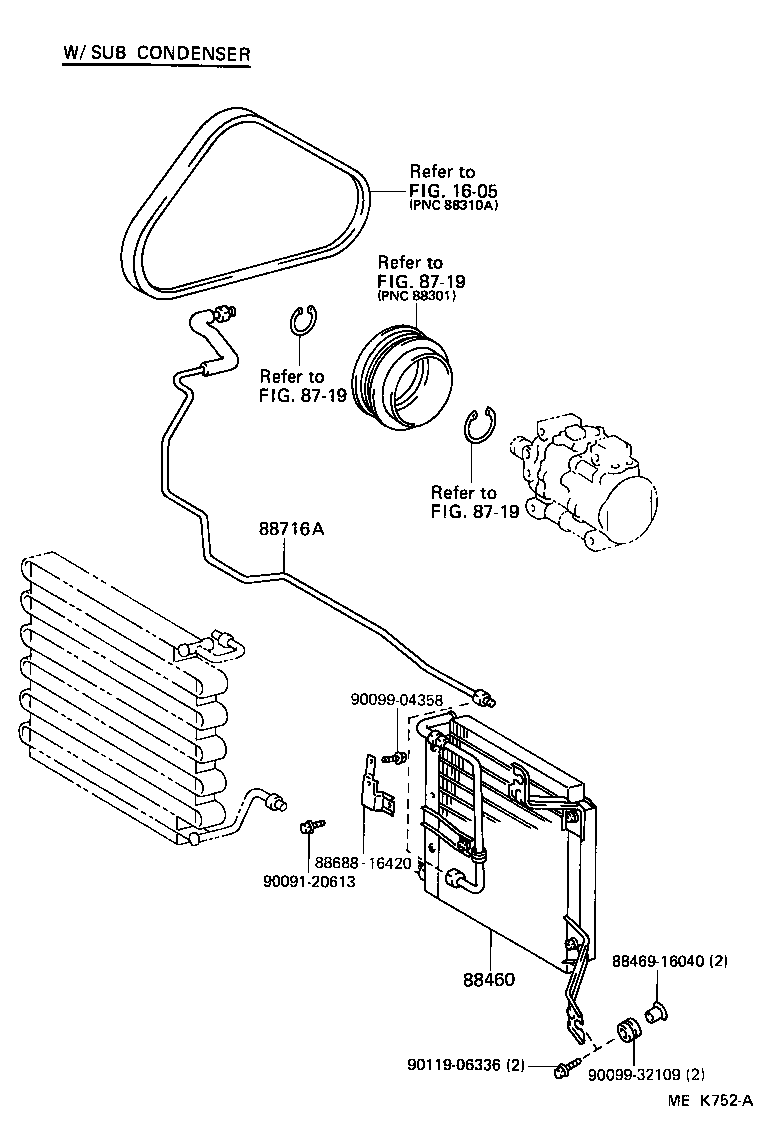

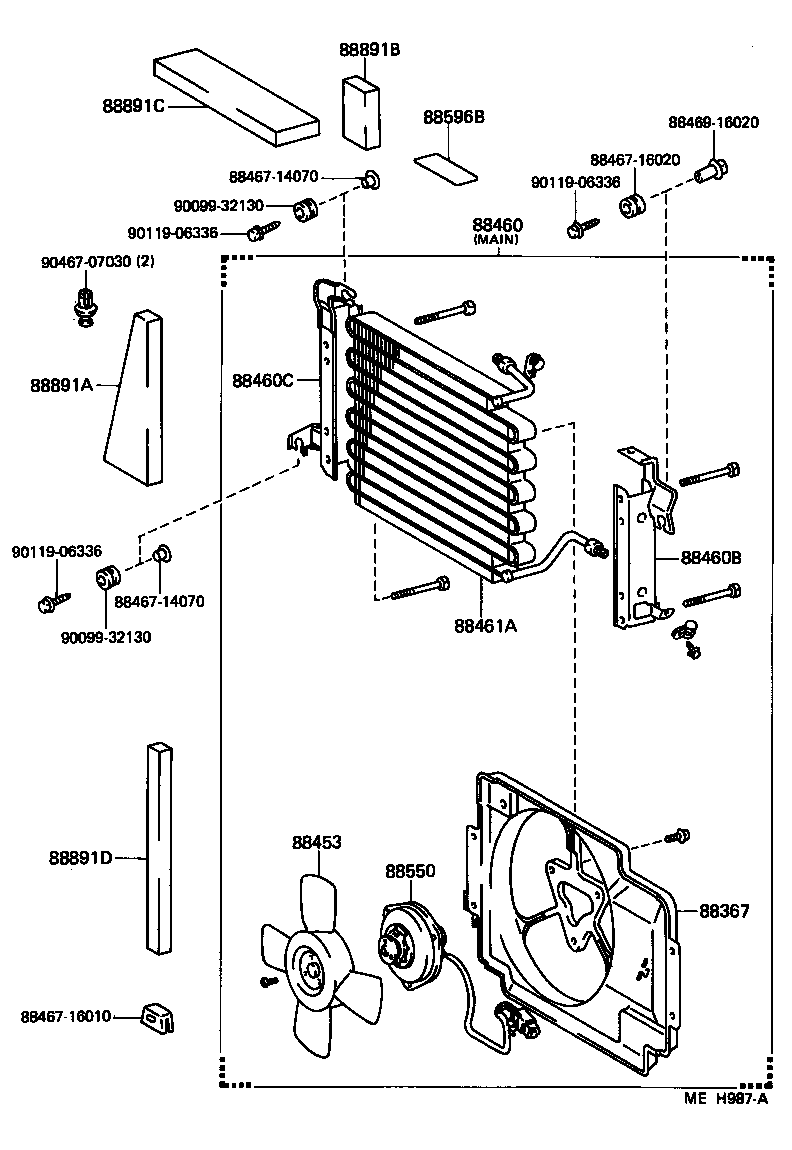

| 88460 | Condenser Assy, Cooler |
| 88460B | Bracket, Cooler Condenser, NO.1 |
| 88460C | Bracket, Cooler Condenser, NO.2 |
| 88461A | Core, Cooler Condenser |
| 88470B | Bolt, Fuse |
| 88471 | Tank, Receiver Air Conditioner |
| 88472 | Bracket, Receiver Tank, NO.1 |
| 88479 | Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT) |
| 88550 | Motor Assy, Blower (FOR CONDENSER) |
| 88590 | Blower Assy, W/Shroud |
| 88596B | Plate, Caution, NO.1 |
| 88596C | Plate, Caution, NO.2 |
| 88645H | Switch, Pressure NO.1 |
| 88688G | Bracket, Cooler Refrigerant Pipe |
| 88703 | Hose Sub-assy, Discharge |

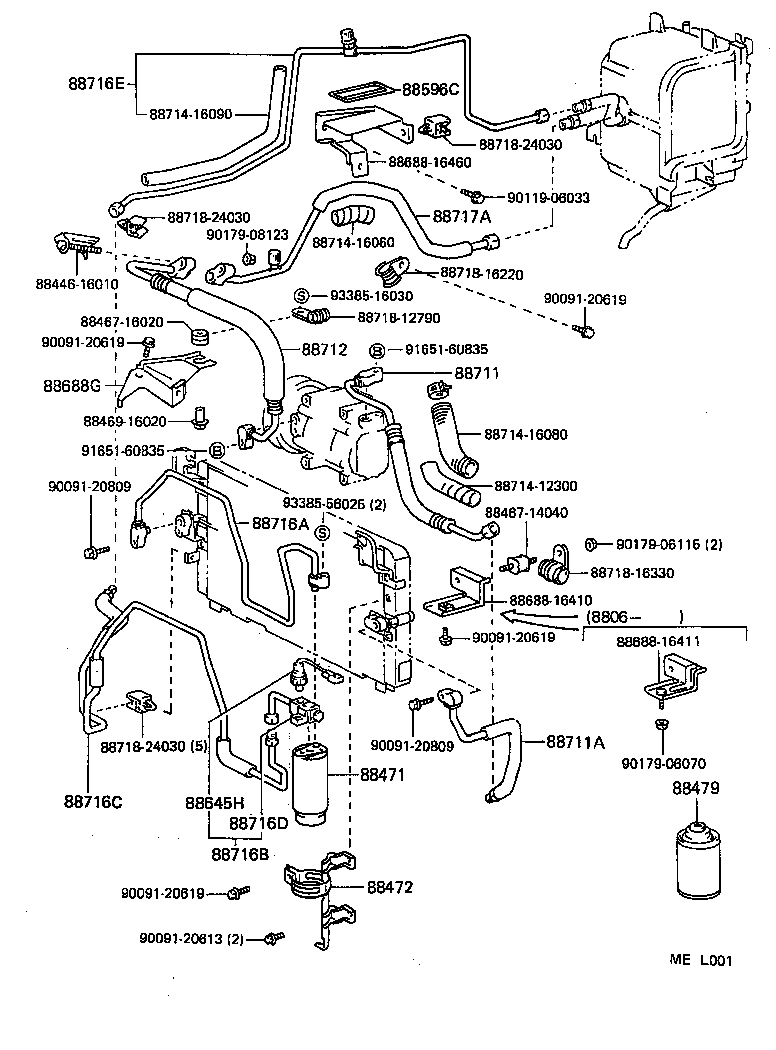

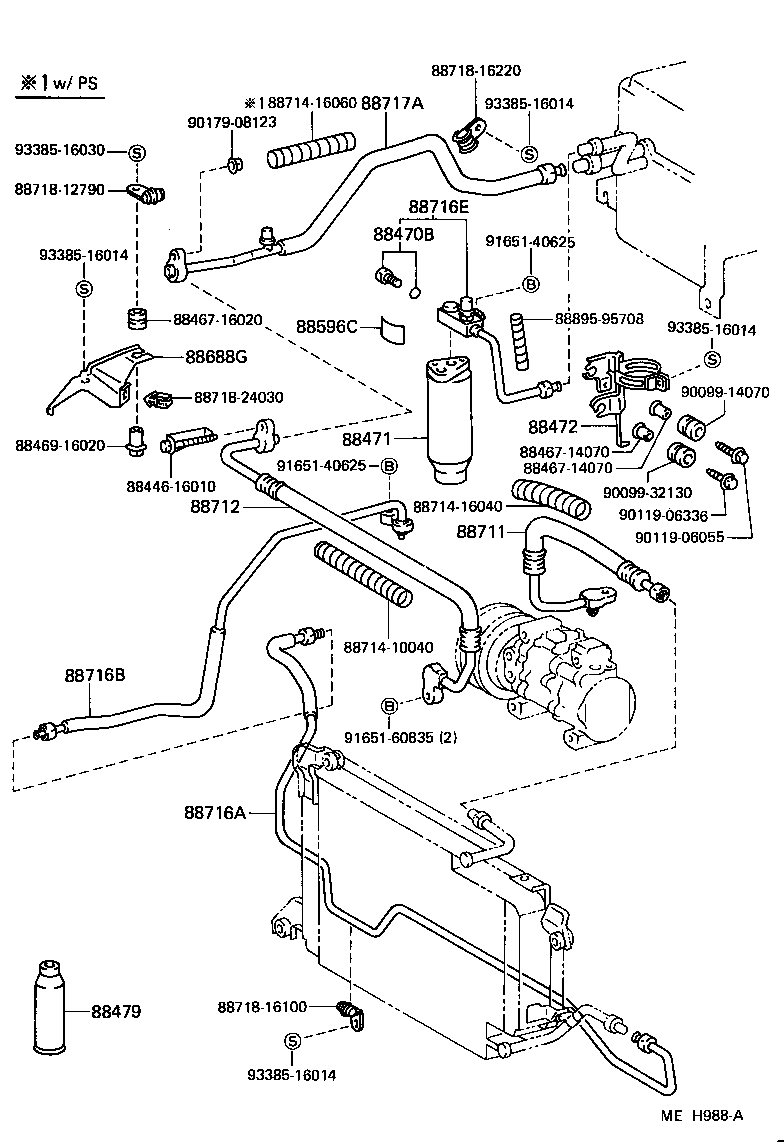

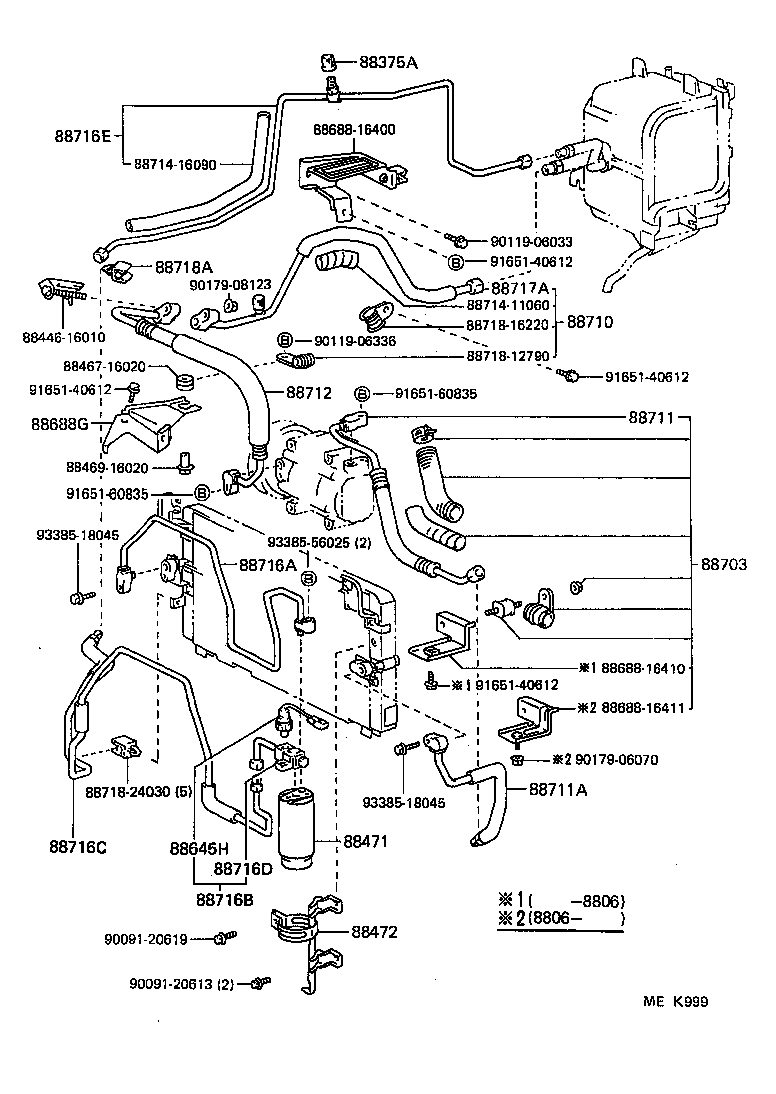

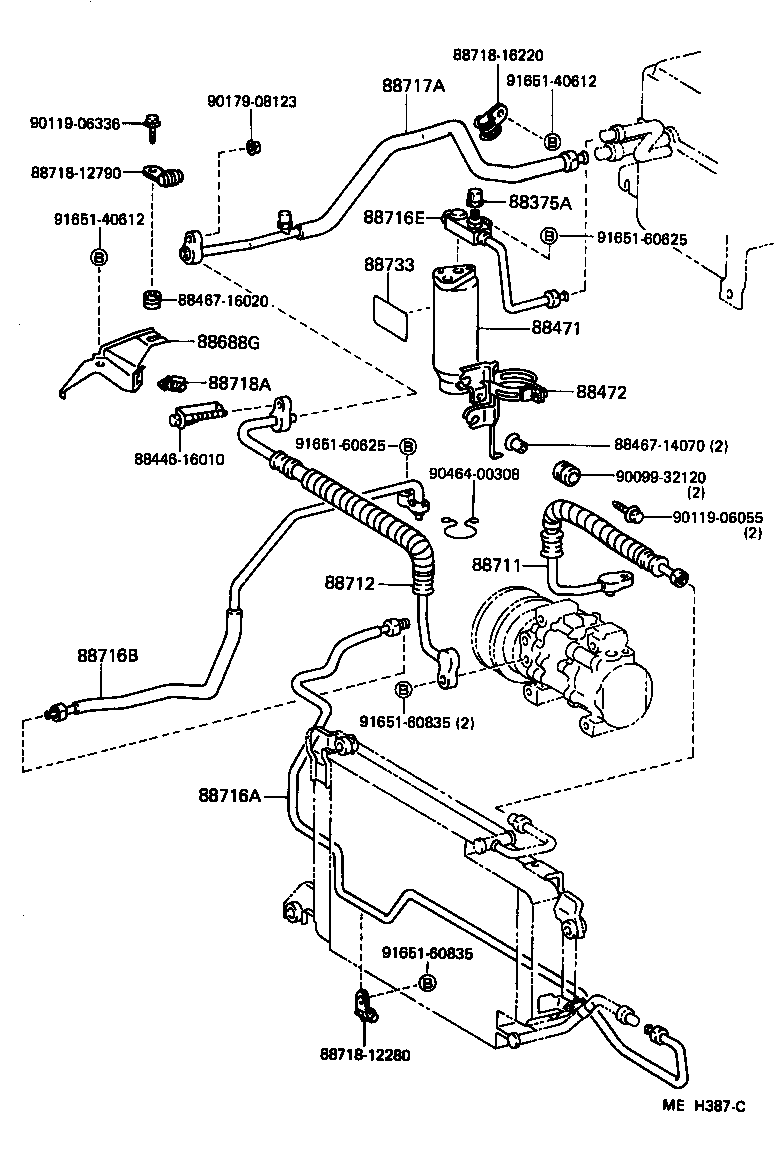

| 88710 | Tube Assy, Air Conditioner |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88711A | Hose, Cooler Refrigerant Discharge, NO.2 |
| 88712 | Hose, Cooler Refrigerant Suction, NO.1 |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88716C | Pipe, Cooler Refrigerant Liquid, C |
| 88716D | Pipe, Cooler Refrigerant Liquid, D |
| 88716E | Pipe, Cooler Refrigerant Liquid, E |
| 88717A | Pipe, Cooler Refrigerant Suction, A |
| 88718A | Clamp, NO.1(FOR COOLER REFRIGERANT PIPE) |
| 88733 | Label, Cooler Service Information |
| 88891A | Packing A (FOR COOLER) |
| 88891B | Packing B (FOR COOLER) |
| 88891C | Packing C (FOR COOLER) |
| 88891D | Packing D (FOR COOLER) |
PNC is the six-character part-group number the factory catalogue files
