Toyota Tercel
1986-08 → 1988-08 · chassis EL31 · catalogue 141410 · Europe
Discontinued model
Data version 1989-01

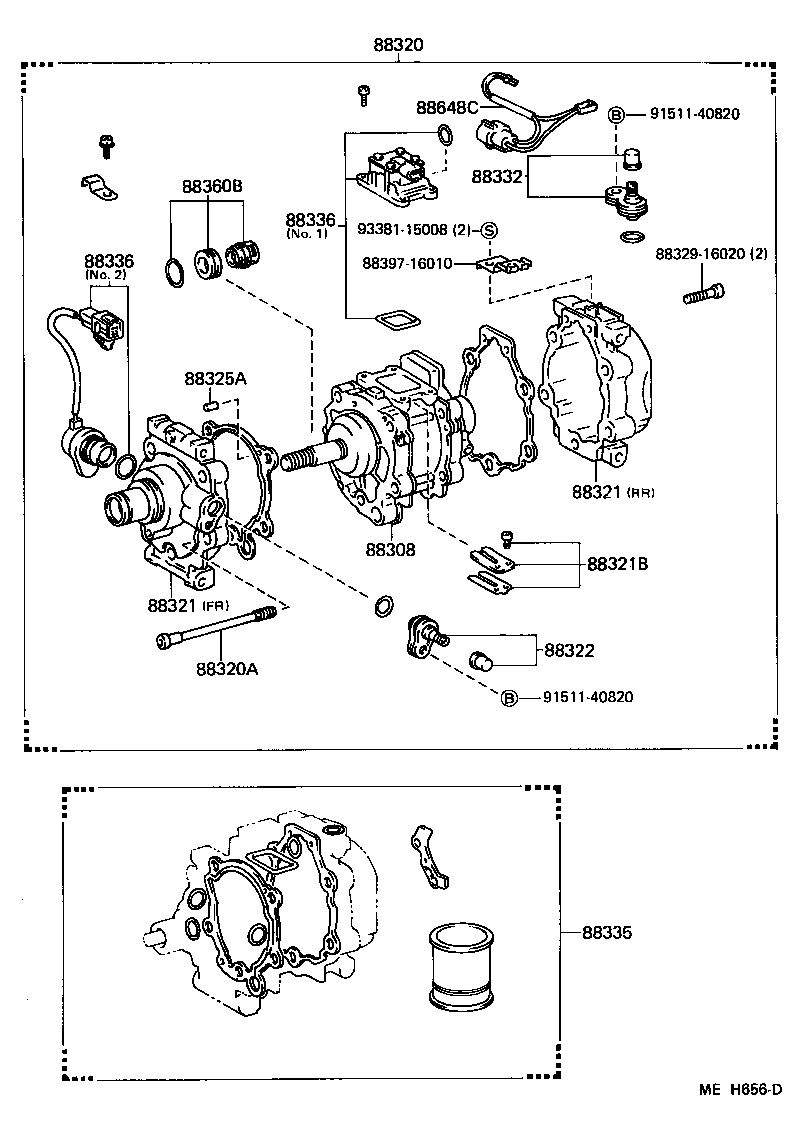

Heating & Air Conditioning - Compressor
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88308 | Pump Assy, Cooler Compressor |
| 88320 | Compressor Assy, Cooler |
| 88320A | Bolt, Through |
| 88321 | Head, Cooler Compressor Cylinder |
| 88321B | Reed Sub-assy, Valve |
| 88322 | Valve, Cooler Compressor Suction Service |
| 88325A | Pin, Cylinder Block |
| 88330 | Clutch Assy, Magnet |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88332 | Valve, Cooler Compressor Discharge Service |
| 88335 | Gasket Kit, Overhaul |
| 88336 | Sensor, Compressor |
| 88360B | Seal, Shaft |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88444 | Bracket, Idle Pulley |
| 88595 | Pulley, Cooler Compressor Idle |
| 88596A | Plate, Caution |
| 88648C | Wire Sub-assy, Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
