Toyota Tercel

1988-08 → 1990-09 · chassis EL31 · catalogue 141430 · Europe

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

16 part groups · 4 illustrations

Illustrations

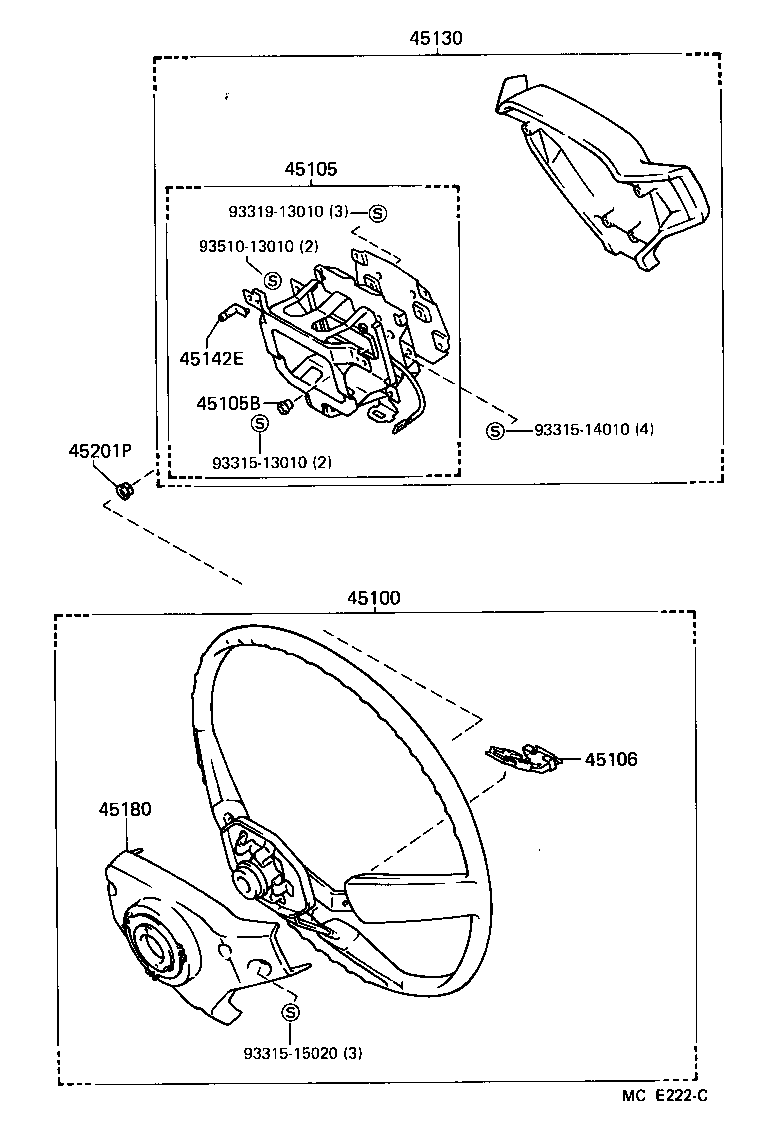

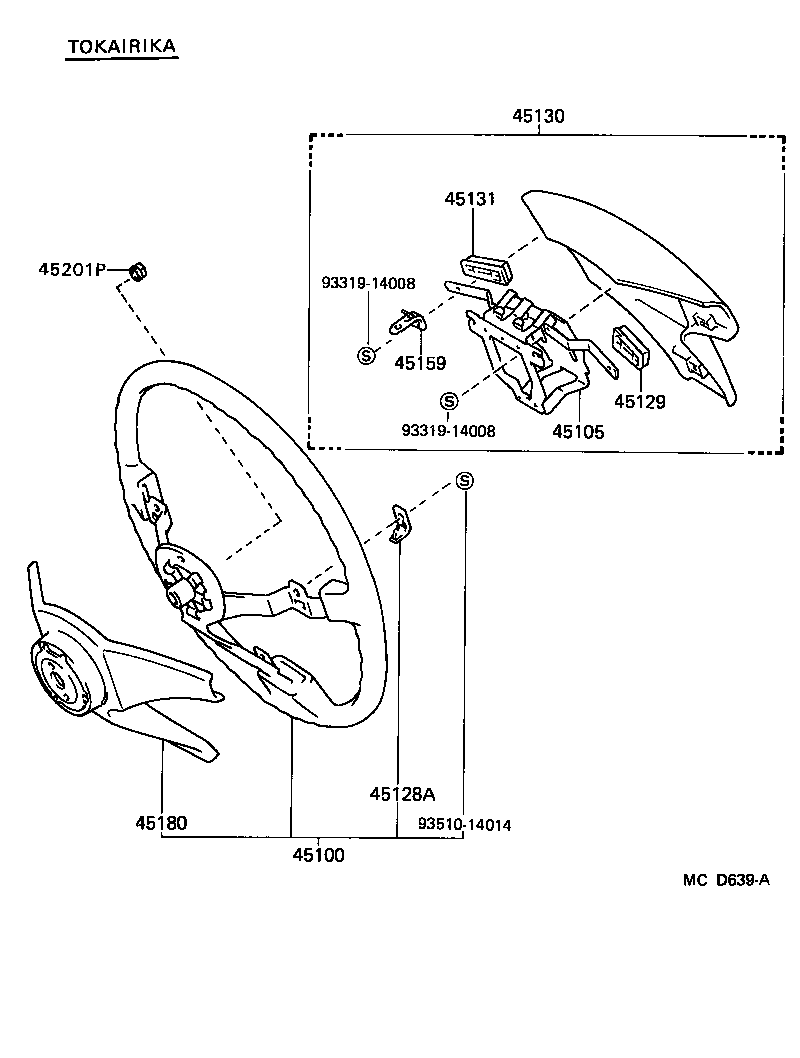

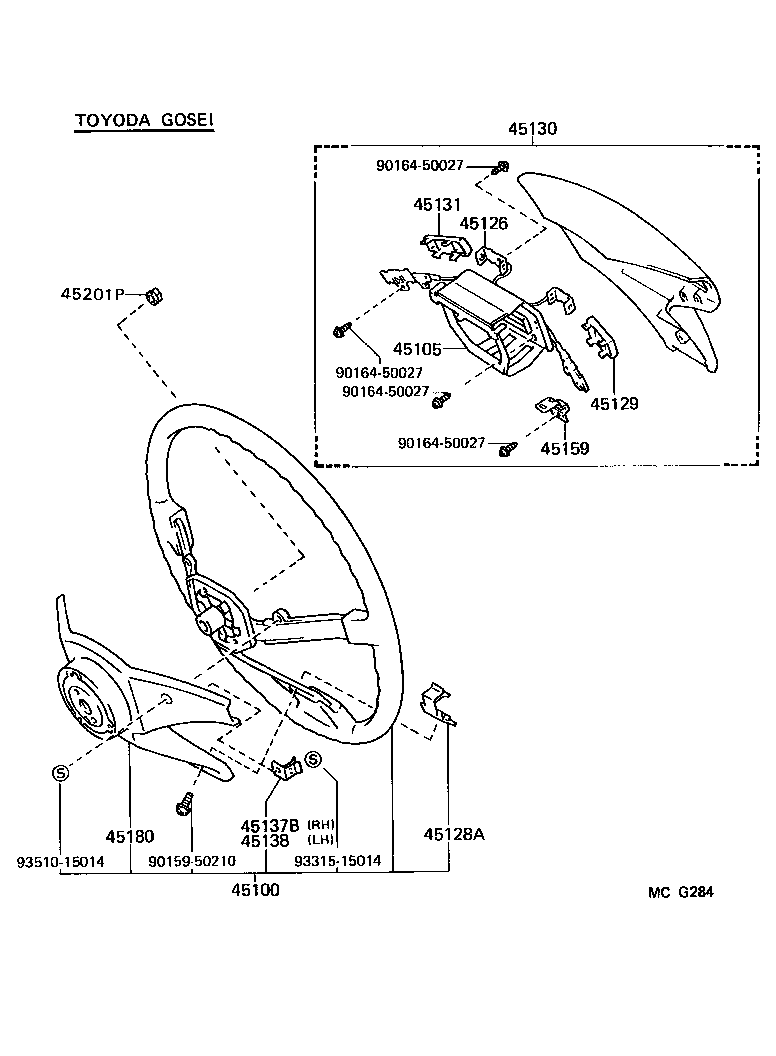

Figure MCD400 MCD400 1988-08 → — Figure MCD639A MCD639A 1988-08 → — Figure MCG284 MCG284 1988-08 → — Figure MCE222C MCE222C 1988-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45106 Plate Sub-assy, Horn Button Stopper
45125 Mark, Steering Wheel Pad
45126 Plate, Steering Wheel Pad Set
45128A Spring, Steering Wheel Pad Set
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45137B Plate, Horn Button Stop, NO.1
45138 Plate, Horn Button Stop, NO.2
45142E Piece, Horn Contact
45159 Retainer, Steering Wheel Pad Set
45180 Cover Sub-assy, Steering Wheel
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
