Toyota Tercel
1988-08 → 1990-09 · chassis EL31 · catalogue 141430 · Europe
Discontinued model
Data version 1991-03

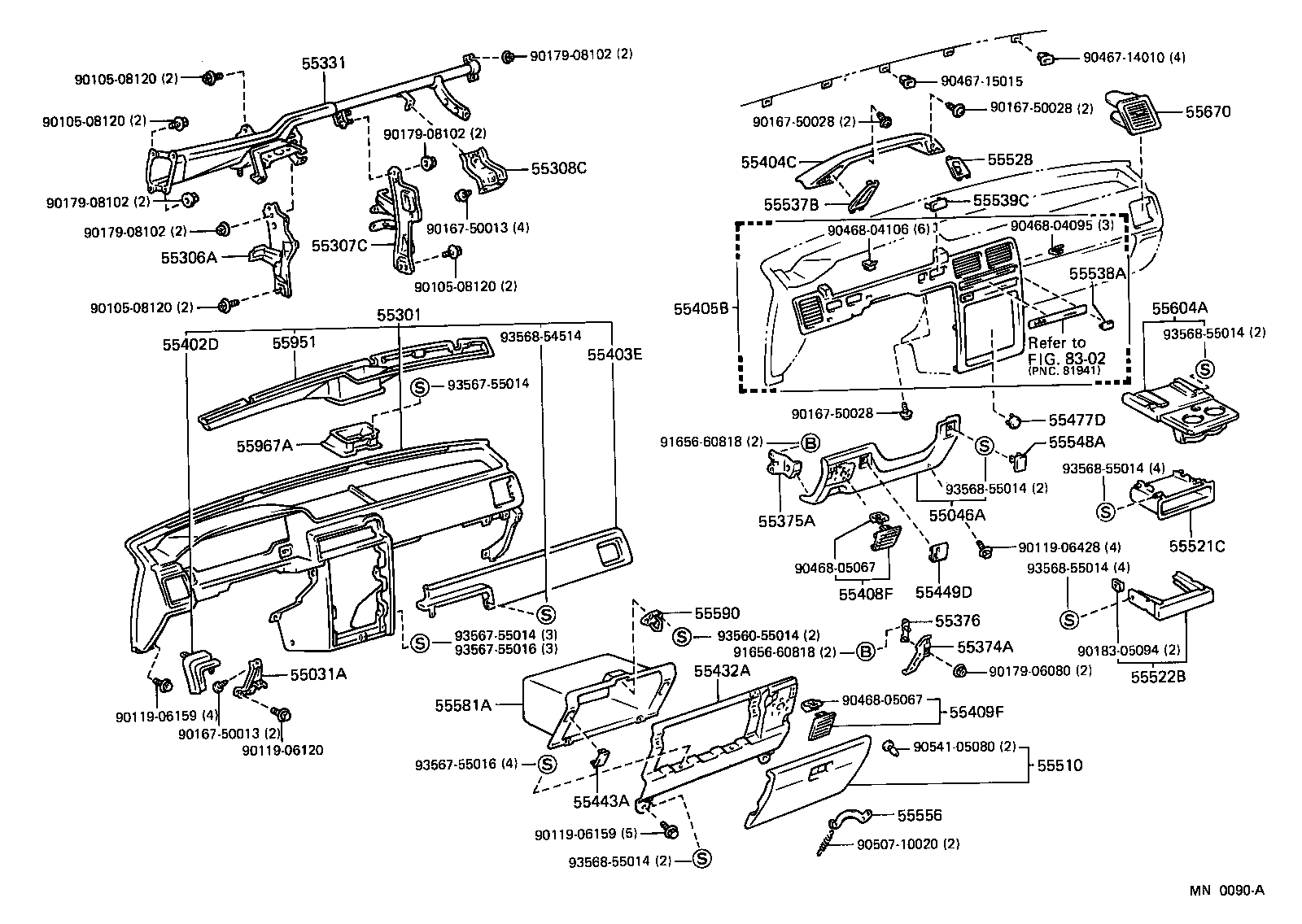

Instrument Panel & Glove Compartment
40 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55031A | Stay Sub-assy, Instrument Panel, NO.1 |
| 55046A | Panel Sub-assy, Instrument Panel Finish, Lower LH |
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55331 | Reinforcement, Instrument Panel |
| 55374A | Bracket, Instrument Panel Lower Mounting, RH |
| 55375A | Bracket, Instrument Panel Lower Mounting, LH |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55402D | Pad Sub-assy, Instrument Panel Safety, NO.1 |
| 55403E | Pad Sub-assy, Instrument Panel Safety, NO.2 |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55409F | Panel Sub-assy, Instrument Panel Speaker, NO.2 |
| 55432A | Panel, Instrument Panel Finish, Lower RH |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55443A | Cover, Instrument Panel Box Door |
| 55449D | Base, Switch |
| 55477D | Cover, Cigarette Lighter Hole |
| 55510 | Door Assy, Glove Compartment |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55528 | Cover, Auto Drive Opening |
| 55537B | Cover, Rear Defogger Switch Hole |
| 55538A | Cover, Cooler Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55556 | Arm, Glove Compartment Door Check |
| 55558 | Reinforcement, Glove Compartment Door |
| 55560A | Lock Assy, Glove Compartment Door |
| 55561A | Striker, Glove Compartment Door Lock |
| 55581A | Compartment, Glove |
| 55590 | Plate Assy, Grove Compartment Door Lock Striker |
| 55604A | Holder Sub-assy, Instrument Panel Cup |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55951 | Nozzle, Defroster, Front |
| 55967A | Nozzle, Defroster, Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
