Toyota Tercel

1988-08 → 1990-09 · chassis EL31 · catalogue 141430 · Europe

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Pan & Lower Back Panel

32 part groups · 2 illustrations

Illustrations

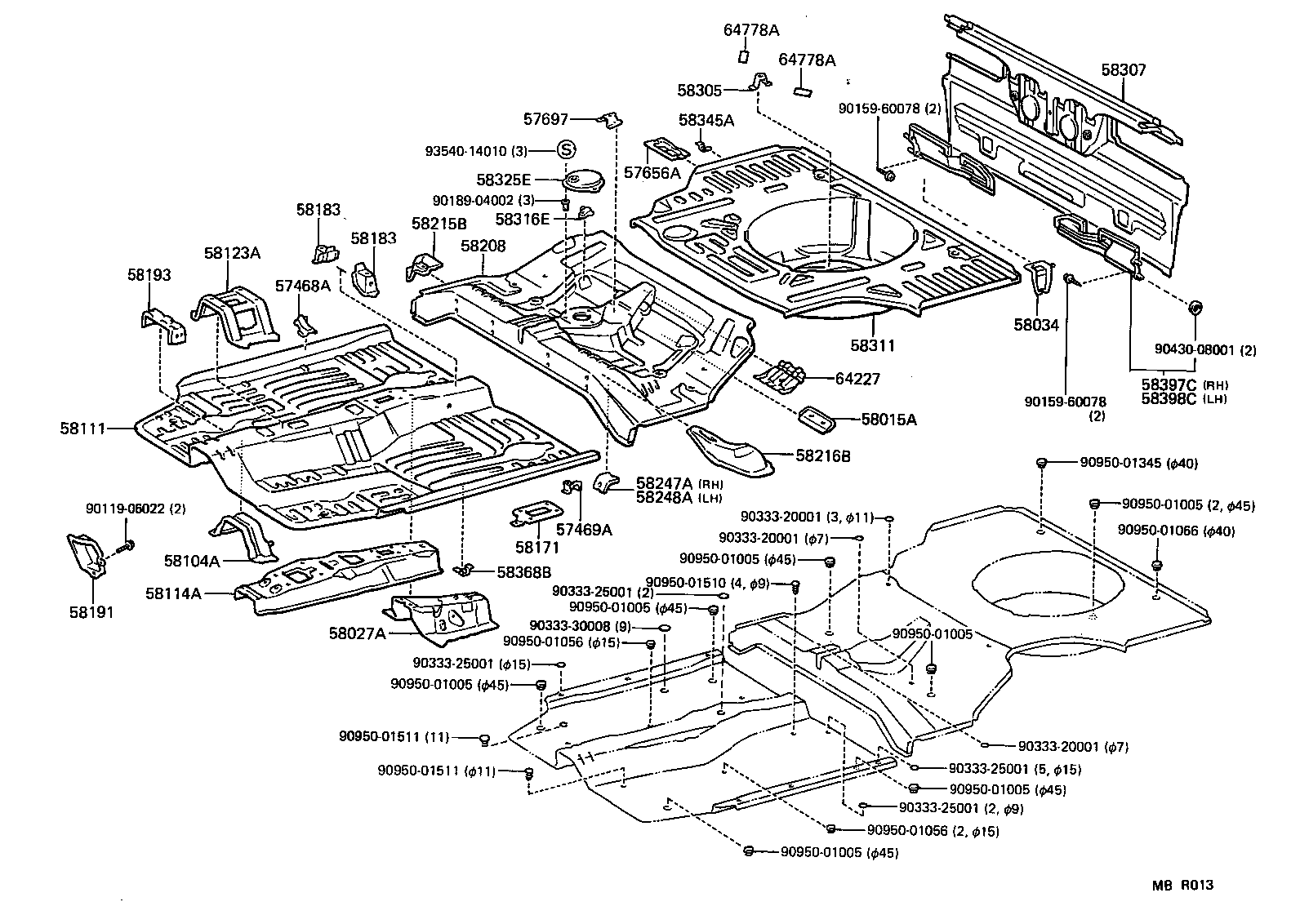

Figure MBR012A MBR012A 1988-08 → — Figure MBR013 MBR013 1988-08 → —

Part groups

PNCDescription
57468A Bracket, Front Seat, Outside, Rear RH
57469A Bracket, Front Seat, Outside, Rear LH
57656A Bracket, Exhaust Pipe Mounting, NO.1
57673 Bracket, Rear Seatback Hinge Mounting
57697 Retainer, Rear Seat Cushion
58015A Reinforce Sub-assy, Belt Anchor, NO.3 RH
58027A Reinforce Sub-assy, Seat Belt Anchor
58104A Bracket Sub-assy, Catalytic Converter Support
58111 Pan, Front Floor
58114A Reinforcement, Front Floor Panel
58123A Support, Shift & Select Lever
58171 Reinforcement, Parking Brake Base
58183 Bracket, Front Seat Mounting, Inner
58191 Footrest, Front Floor
58193 Bracket, Instrument Panel Brace Mounting
58208 Pan, Center Floor
58215B Bracket, Rear Seat Mounting, RH
58216B Bracket, Rear Seat Mounting, LH
58247A Reinforcement, Rear Seat Cushion Hinge, RH
58248A Reinforcement, Rear Seat Cushion Hinge, LH
58305 Bracket Sub-assy, Spare Wheel Clamp
58307 Panel Sub-assy, Body Lower Back
58311 Pan, Rear Floor
58314 Panel, Rear Floor Side, LH
58316E Retainer, Rear Seat Set
58325E Cover, Rear Floor Service Hole
58345A Bracket, Rear Floor Heat Insulator, NO.1
58368B Bracket, Fuel Tube, NO.2
58397C Cover, Body Lower Back, RH
58398C Cover, Body Lower Back, LH
64227 Extension, Center Floor TO Brace
64778A Protector, Spare Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
