Toyota Tercel

1988-08 → 1990-09 · chassis EL31 · catalogue 141430 · Europe

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board & Door Opening Trim Moulding

36 part groups · 3 illustrations

Illustrations

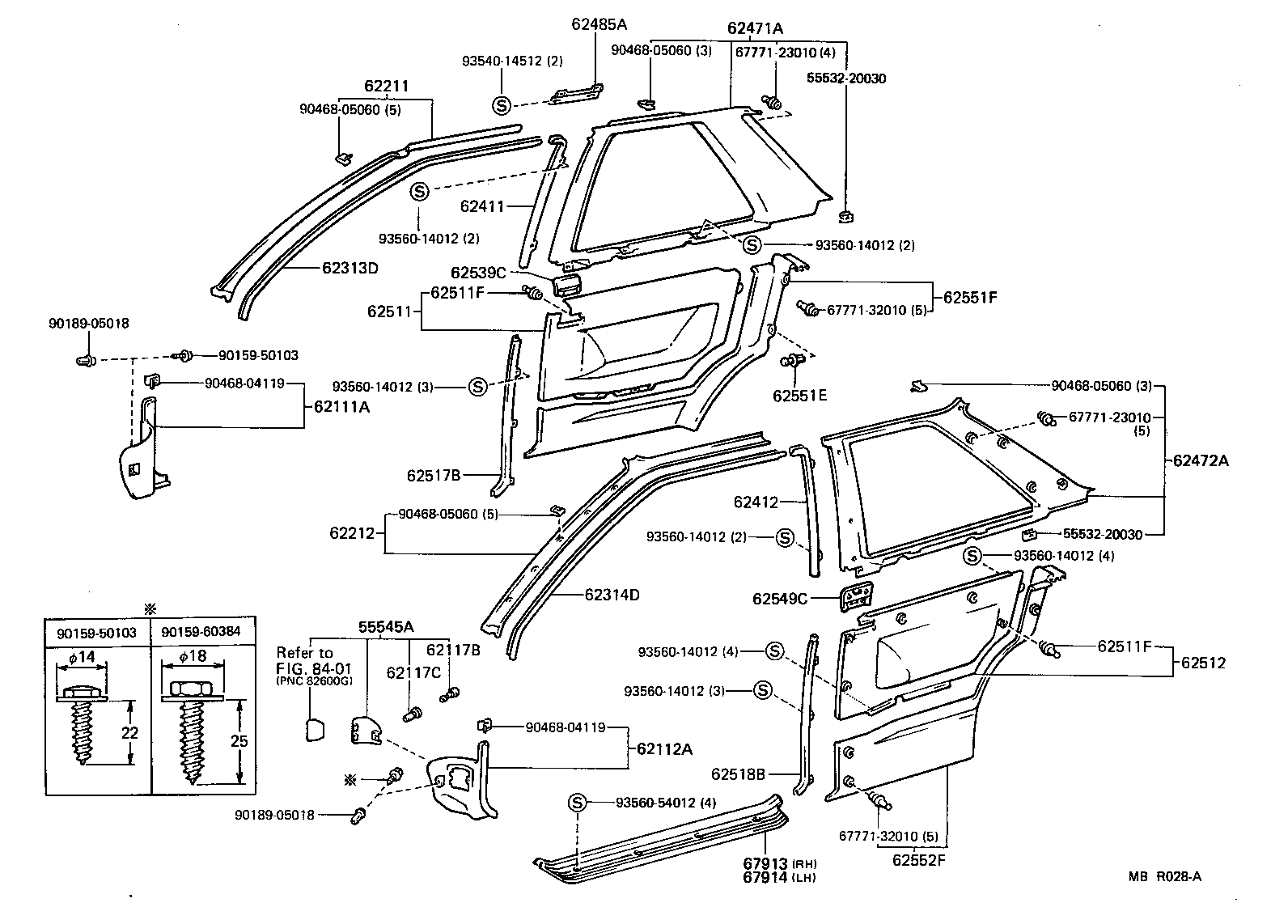

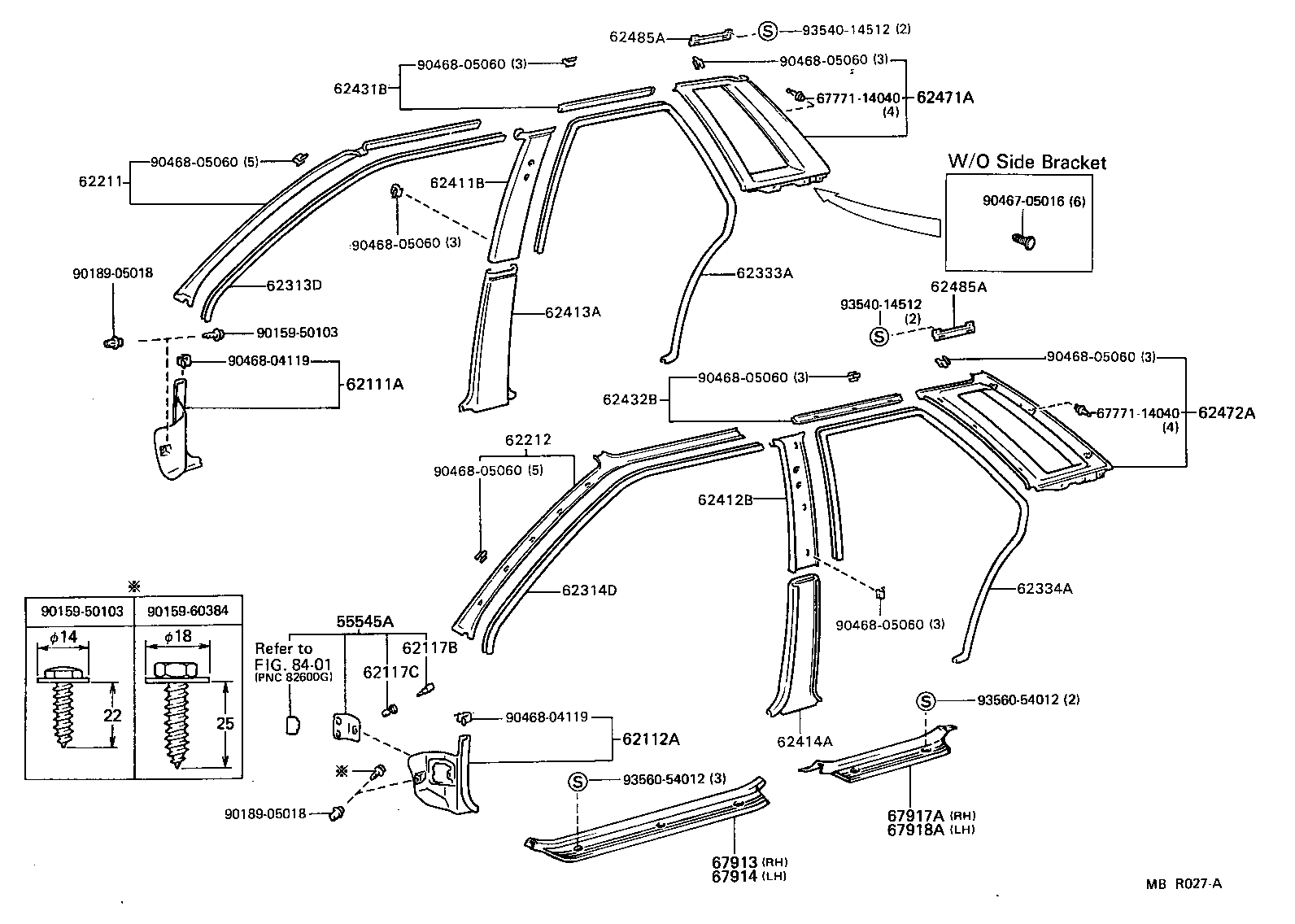

Figure MBR026A MBR026A 1988-08 → — Figure MBR027A MBR027A 1988-08 → — Figure MBR028A MBR028A 1988-08 → —

Part groups

PNCDescription
55545A Cover, Fuse Box Opening
62111A Trim Sub-assy, Cowl Side, RH
62112A Trim Sub-assy, Cowl Side, LH
62117B Clip, NO.1(FOR COWL SIDE TRIM)
62117C Clip, NO.2(FOR COWL SIDE TRIM)
62211 Garnish, Front Pillar, RH
62212 Garnish, Front Pillar, LH
62313D Trim, Front Door Opening, RH
62314D Trim, Front Door Opening, LH
62333A Trim, Rear Door Opening, RH
62334A Trim, Rear Door Opening, LH
62411 Garnish, Center Pillar, RH
62411B Garnish, Center Pillar, Upper RH
62412 Garnish, Center Pillar, LH
62412B Garnish, Center Pillar, Upper LH
62413A Garnish, Center Pillar, Lower RH
62414A Garnish, Center Pillar, Lower LH
62431B Garnish, Roof Side Rail, NO.1 RH
62432B Garnish, Roof Side Rail, NO.1 LH
62471A Garnish, Roof Side, Inner RH
62472A Garnish, Roof Side, Inner LH
62485A Retainer, Roof Side Inner Garnish
62511 Board, Quarter Inside Trim, RH
62511F Retainer (FOR QUARTER INSIDE TRIM BOARD)
62512 Board, Quarter Inside Trim, LH
62517B Base, Quarter Trim, Front RH
62518B Base, Quarter Trim, Front LH
62539C Cover, Quarter Trim Upper Belt Hole, RH
62549C Cover, Quarter Trim Upper Belt Hole, LH
62551E Clip(FOR REAR SEAT SIDE GARNISH)
62551F Garnish, Rear Seat Side, RH
62552F Garnish, Rear Seat Side, LH
67913 Plate, Front Door Scuff, RH
67914 Plate, Front Door Scuff, LH
67917A Plate, Rear Door Scuff, RH
67918A Plate, Rear Door Scuff, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
