Toyota Tercel
1988-08 → 1990-09 · chassis EL31 · catalogue 141430 · Europe
Discontinued model
Data version 1991-03
Front Door Panel & Glass
38 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

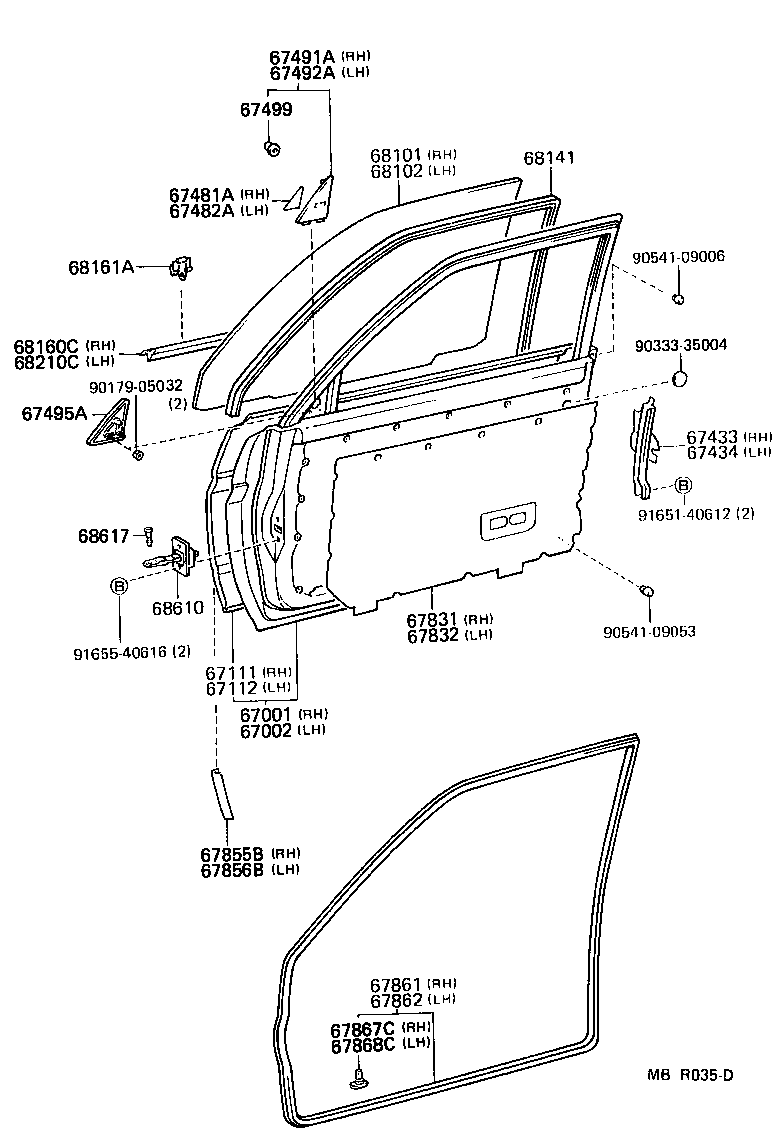

| 67001 | Panel Sub-assy, Front Door, RH |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67433 | Frame, Front Door Window, Rear Lower RH |
| 67434 | Frame, Front Door Window, Rear Lower LH |
| 67481A | Seal, Front Door Front Lower Frame, RH |
| 67482A | Seal, Front Door Front Lower Frame, LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67495A | Cover, Front Door Front Lower Frame, Upper RH |
| 67499 | Retainer, Front Door Lower Frame Bracket Garnish |

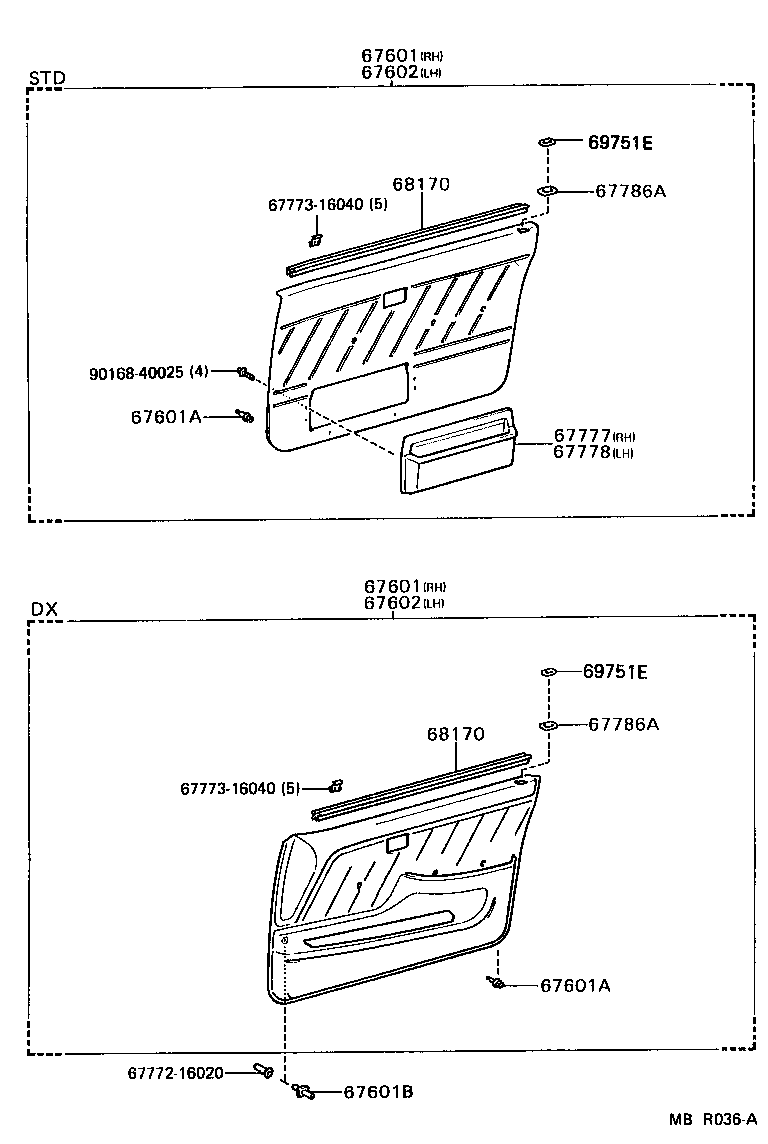

| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67777 | Pocket, Front Door Trim, RH |
| 67778 | Pocket, Front Door Trim, LH |
| 67786A | Retainer, Door Locking Button Collar(FOR FRONT DOOR) |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67855B | Protector, Front Door Panel, RH |
| 67856B | Protector, Front Door Panel, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 67867C | Retainer, Front Door Weatherstrip, RH |
| 67868C | Retainer, Front Door Weatherstrip, LH |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141 | Run, Front Door Glass |
| 68160C | Weatherstrip Assy, Front Door Glass, Outer RH |
| 68161A | Clip(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) |
| 68170 | Weatherstrip Assy, Front Door Glass, Inner |
| 68170A | Clip(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) |
| 68210C | Weatherstrip Assy, Front Door Glass, Outer LH |
| 68610 | Check Assy, Front Door |
| 68617 | Pin, Front Door Check |
| 69751E | Holder, Front Door Lock Control Knob |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
