Toyota Tercel

1988-08 → 1990-09 · chassis EL31 · catalogue 141430 · Europe

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

13 part groups · 2 illustrations

Illustrations

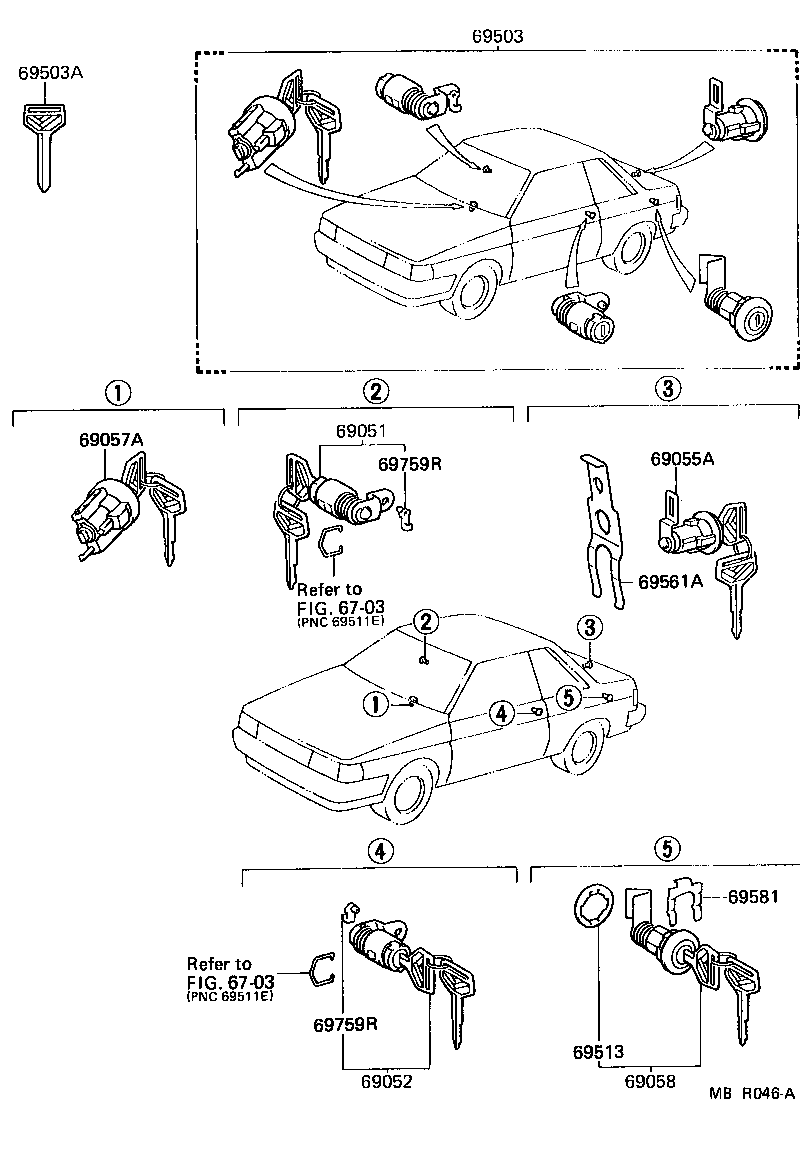

Figure MBR045A MBR045A 1988-08 → — Figure MBR046A MBR046A 1988-08 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055A Cylinder & Key Set, Luggage Compartment Lock
69055B Cylinder & Key Set, Back Door Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69058 Cylinder & Key Set, Fuel Filler Lid
69503 Cylinder Set, Lock
69503A Key, Blank
69513 Pad, Fuel Filler Lid Lock Cylinder
69561A Retainer, Luggage Compartment Lock Cylinder
69561B Retainer, Back Door Lock Cylinder
69581 Retainer, Fuel Filler Lid Cylinder
69759R Snap, Front Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
