Toyota Tercel

1988-08 → 1990-09 · chassis EL31 · catalogue 141430 · Europe

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

32 part groups · 4 illustrations

Illustrations

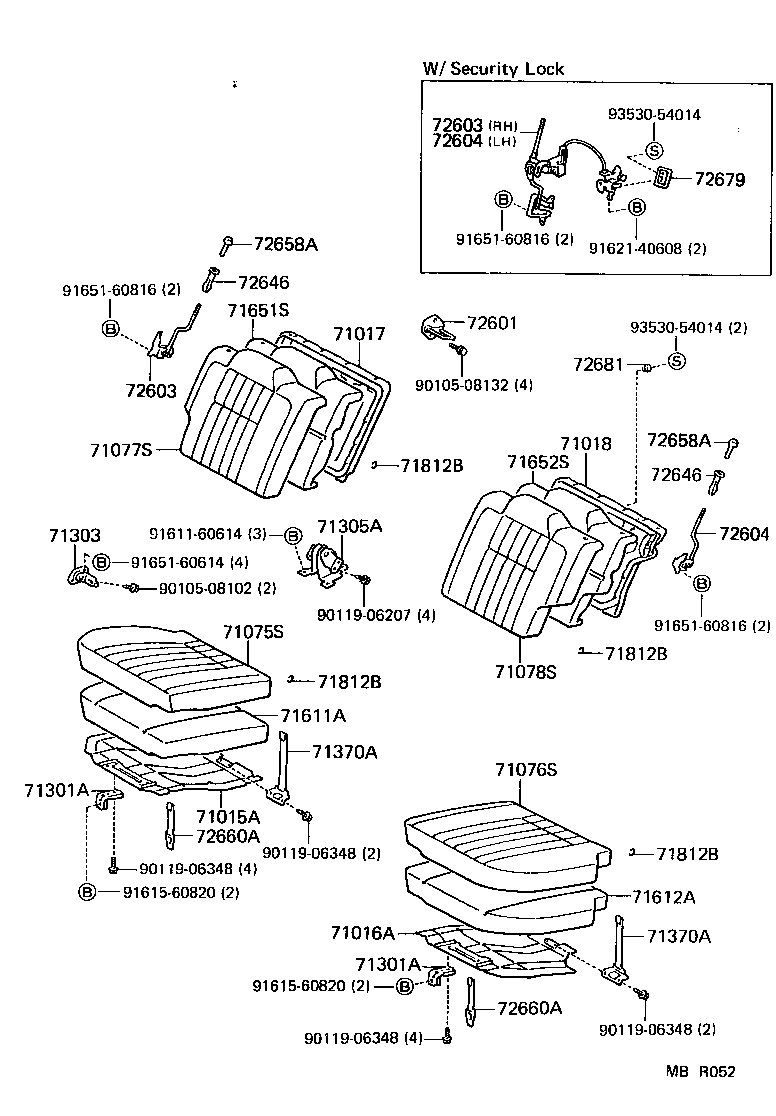

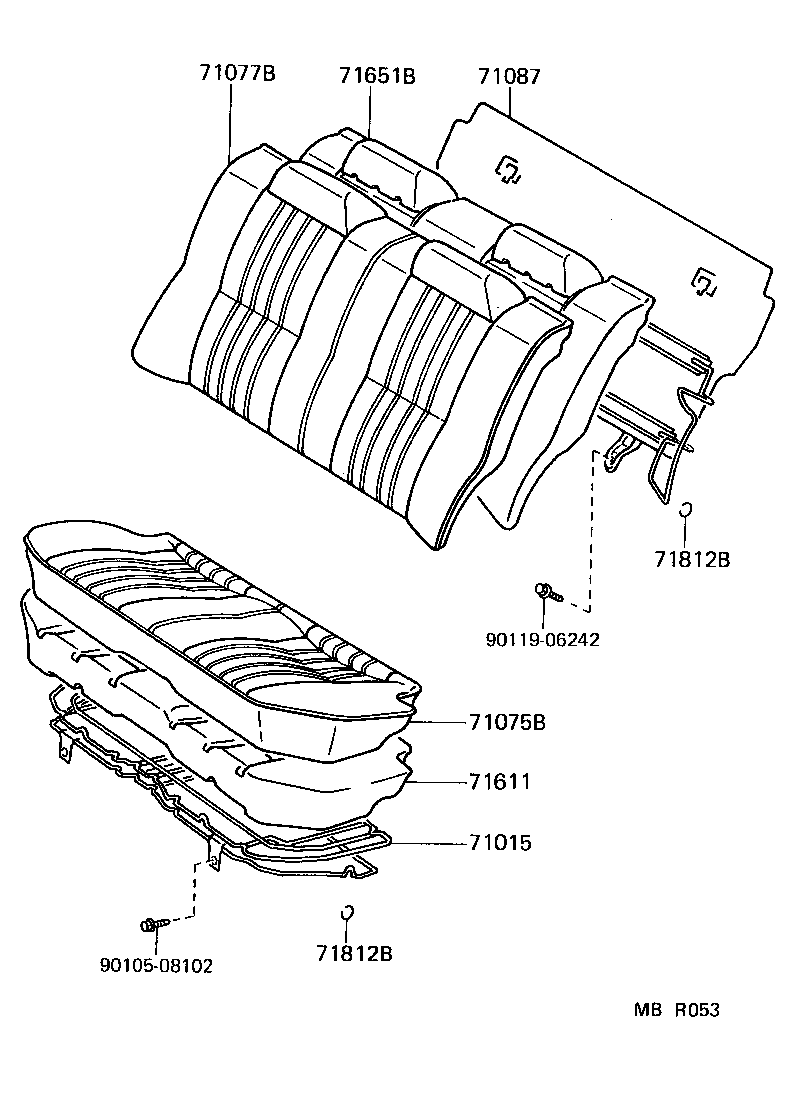

Figure MBR051 MBR051 1988-08 → — Figure MBR052 MBR052 1988-08 → 1989-08 Figure MBR052 MBR052 1989-08 → — Figure MBR053 MBR053 1988-08 → —

Part groups

PNCDescription
71015 Frame Sub-assy, Rear Seat Cushion
71015A Frame Sub-assy, Rear Seat Cushion, RH
71016A Frame Sub-assy, Rear Seat Cushion, LH
71017 Frame Sub-assy, Rear Seatback, RH
71017A Frame Sub-assy, Rear Seatback
71018 Frame Sub-assy, Rear Seatback, LH
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71087 Board Sub-assy, Rear Seatback
71301A Hinge Sub-assy, Rear Seat Cushion
71303 Hinge Sub-assy, Rear Seatback
71305A Hinge Sub-assy, Rear Seatback, Center
71370A Holder Assy, Rear Seat Cushion
71611 Pad, Rear Seat Cushion
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71812B Clip(FOR REAR SEAT CUSHION COVER)
72601 Striker Sub-assy, Rear Seat Lock
72603 Lock Sub-assy, Rear Seatback, RH
72604 Lock Sub-assy, Rear Seatback, LH
72646 Grommet, Rear Seatback Stop Button
72658A Knob, Rear Seatback Locking
72660A Support Assy, Rear Seat Cushion
72679 Bezel, Rear Seatback Lock Control
72681 Hook, Rear Seatback Lock, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
