Toyota Tercel
1988-08 → 1990-09 · chassis EL31 · catalogue 141430 · Europe
Discontinued model
Data version 1991-03

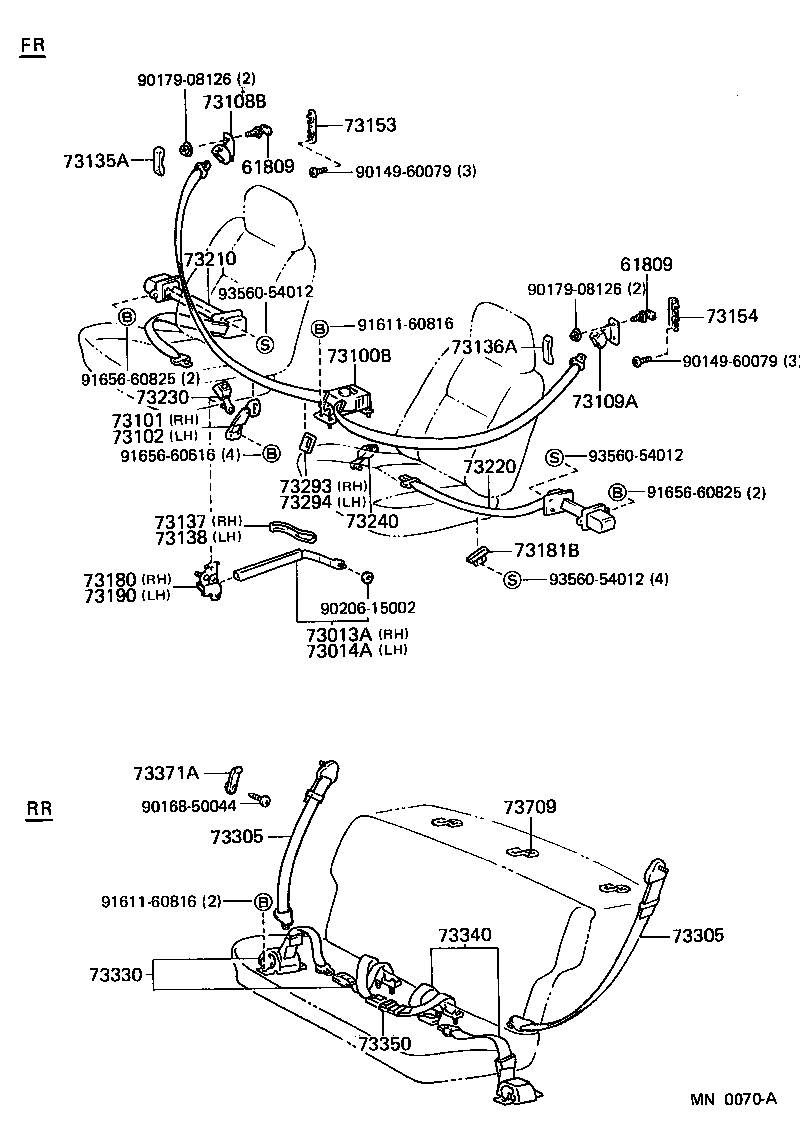

Seat Belt & Child Restraint Seat
30 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 61809 | Pin Sub-assy, Shoulder Belt Anchor |
| 73013A | Plate Sub-assy, Front Seat Belt Inner Anchor, RH |
| 73014A | Plate Sub-assy, Front Seat Belt Inner Anchor, LH |
| 73100B | Belt Assy, Front Seat Shoulder |
| 73101 | Guide Sub-assy, Front Seat Belt, Inner RH |
| 73102 | Guide Sub-assy, Front Seat Belt, Inner LH |
| 73108B | Buckle Sub-assy, Front Shoulder Belt Anchor, RH |
| 73109A | Buckle Sub-assy, Front Shoulder Belt Anchor, LH |
| 73135A | Cover, Shoulder Belt Anchor, RH |
| 73136A | Cover, Shoulder Belt Anchor, LH |
| 73137 | Cap, Front Seat Belt Inner Anchor, RH |
| 73138 | Cap, Front Seat Belt Inner Anchor, LH |
| 73153 | Clevis, Front Shoulder Belt Anchor, RH |
| 73154 | Clevis, Front Shoulder Belt Anchor, LH |
| 73178A | Cap, Seat Belt Anchor Cover |
| 73180 | Bracket Assy, Seat Belt Inner Anchor, RH |
| 73181B | Guide, Front Seat Lap Belt, Outer |
| 73190 | Bracket Assy, Seat Belt Inner Anchor, LH |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73293 | Cover, Rear Console Belt Hole, RH |
| 73294 | Cover, Rear Console Belt Hole, LH |
| 73305 | Belt Sub-assy, Rear Seat Shoulder |
| 73330 | Belt Assy, Rear Seat Lap Type, RH |
| 73340 | Belt Assy, Rear Seat Lap Type, LH |
| 73350 | Belt Assy, Rear Seat Lap Type, Center |
| 73371A | Hanger Rear Seat Shoulder Belt |
| 73709 | Bracket Sub-assy, Tether Anchor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
