Toyota Tercel

1988-08 → 1990-09 · chassis EL31 · catalogue 141430 · Europe

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Moulding

9 part groups · 2 illustrations

Illustrations

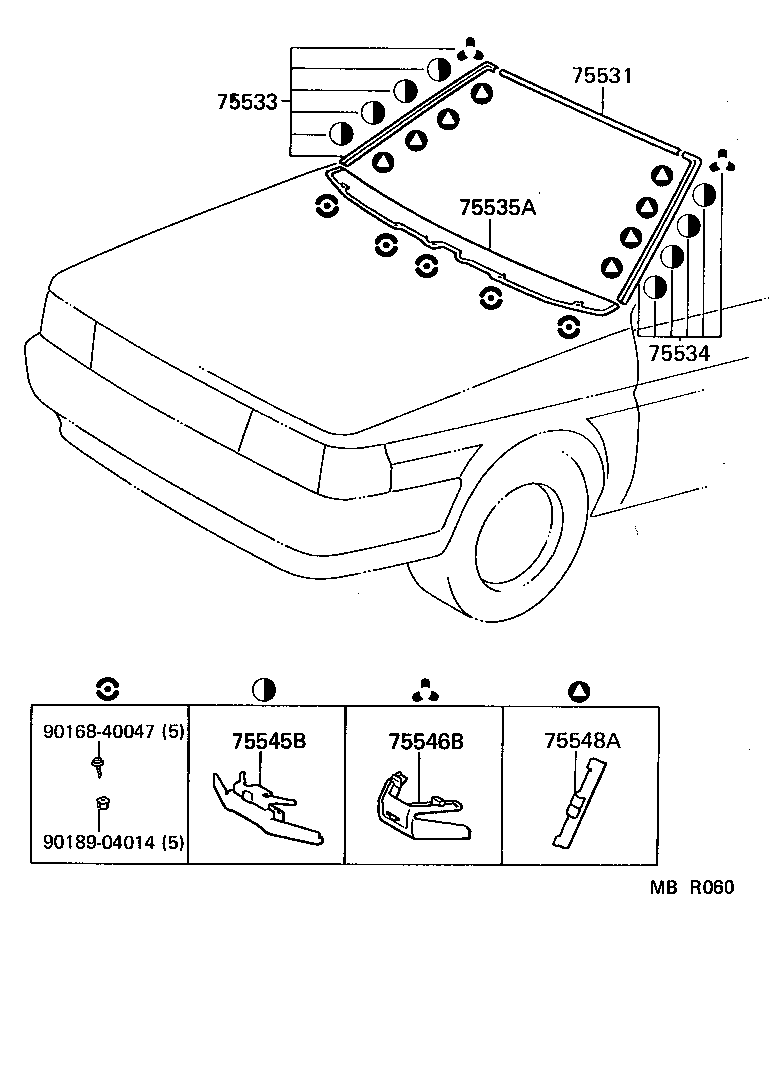

Figure MBR059 MBR059 1988-08 → — Figure MBR060 MBR060 1988-08 → —

Part groups

PNCDescription
75531 Moulding, Windshield, Outer Upper
75533 Moulding, Windshield, Outside RH
75534 Moulding, Windshield, Outside LH
75535A Moulding, Windshield, Outside Lower
75541C Cover, Windshield Moulding Joint, Upper RH
75542C Cover, Windshield Moulding Joint, Upper LH
75545B Clip, Windshield Outside Moulding, NO.1
75546B Clip, Windshield Outside Moulding, NO.2
75548A Fastener, Windshield Outside Moulding, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
