Toyota Tercel

1988-08 → 1990-09 · chassis EL31 · catalogue 141430 · Europe

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

22 part groups · 2 illustrations

Illustrations

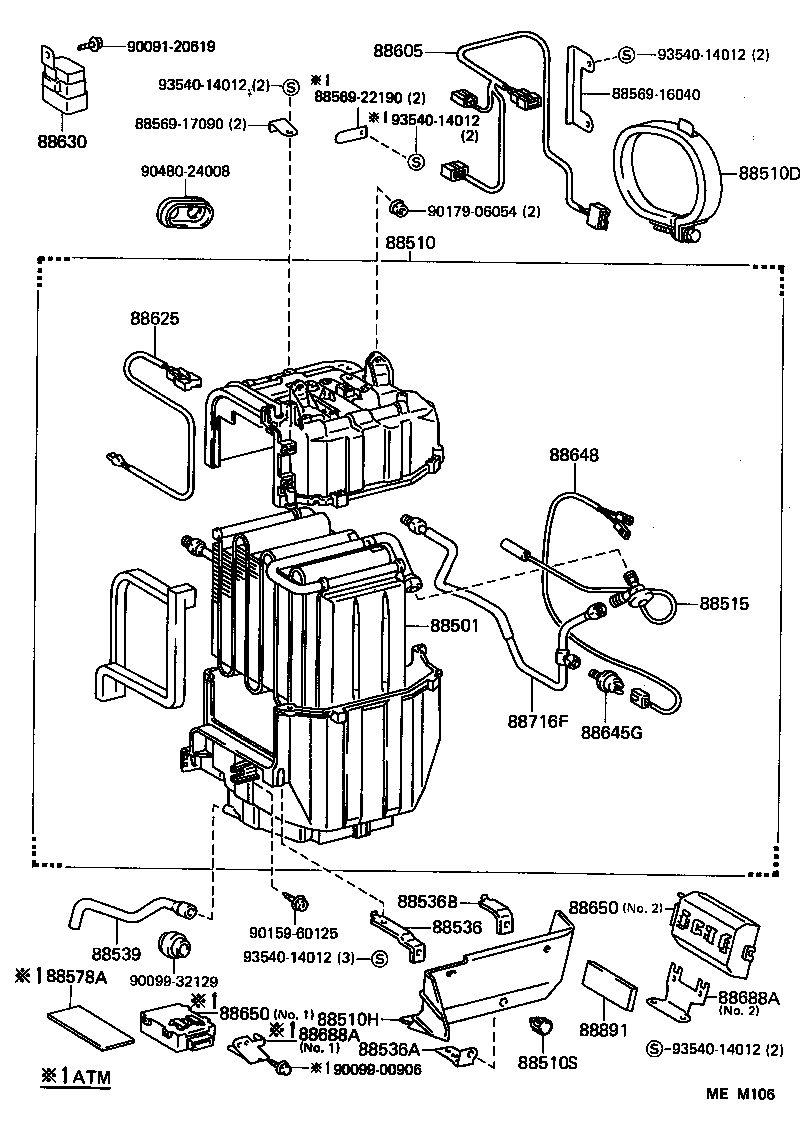

Figure MEL123D MEL123D 1988-08 → — Figure MEM106 MEM106 1988-08 → —

Part groups

PNCDescription
87116A Spring, Holding (FOR COOLER UNIT CASE)
88501 Evaporator Sub-assy, Cooler, NO.1
88502 Case Sub-assy, Cooling Unit
88510 Unit Assy, Cooler
88510D Clamp, Cooler Unit
88510H Plate, Cooler Unit, NO.1
88510S Clip (FOR COOLER UNIT COVER)
88515 Valve, Cooler Expansion
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88536B Bracket, Cooling Unit, NO.3
88539 Hose, Cooler Unit Drain, NO.1
88578A Packing, Cooler Stabilizer Amplifier
88605 Harness Sub-assy, Cooler Wiring, NO.1
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88645G Switch, Pressure
88648 Wiring, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88688A Bracket, Cooler Stabilizer Amplifier
88716F Pipe, Cooler Refrigerant Liquid, F
88891 Packing (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
