Toyota Tercel

1988-08 → 1990-09 · chassis EL31 · catalogue 141430 · Europe

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

7 part groups · 3 illustrations

Illustrations

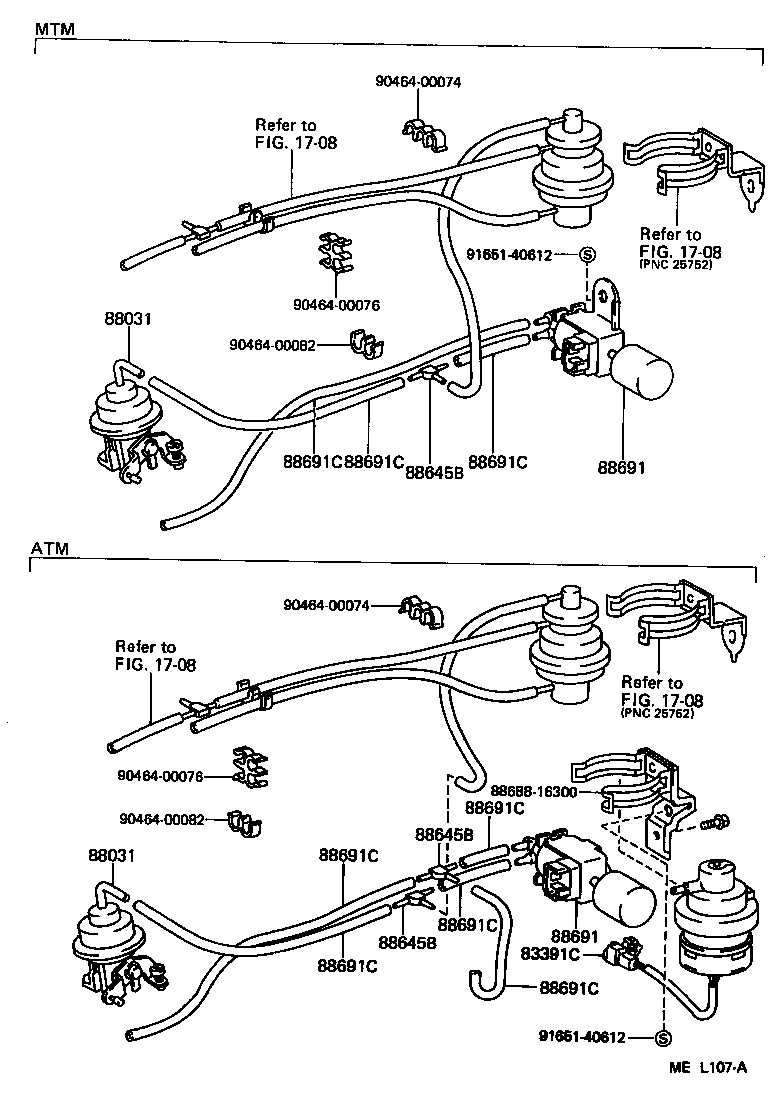

Figure MEL127A MEL127A 1988-08 → — Figure MEQ382 MEQ382 1989-08 → — Figure MEL107A MEL107A 1988-08 → —

Part groups

PNCDescription
83391C Switch, Cooler Vacuum
88031 Actuator Set, Idle-up
88606B Diaphragm Sub-assy, Cooler
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88689A Hose, Cooler Vacuum NO.1
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
