Toyota Tercel

1988-08 → 1990-09 · chassis EL31 · catalogue 141430 · Europe

Discontinued model Data version 1991-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

27 part groups · 5 illustrations

Illustrations

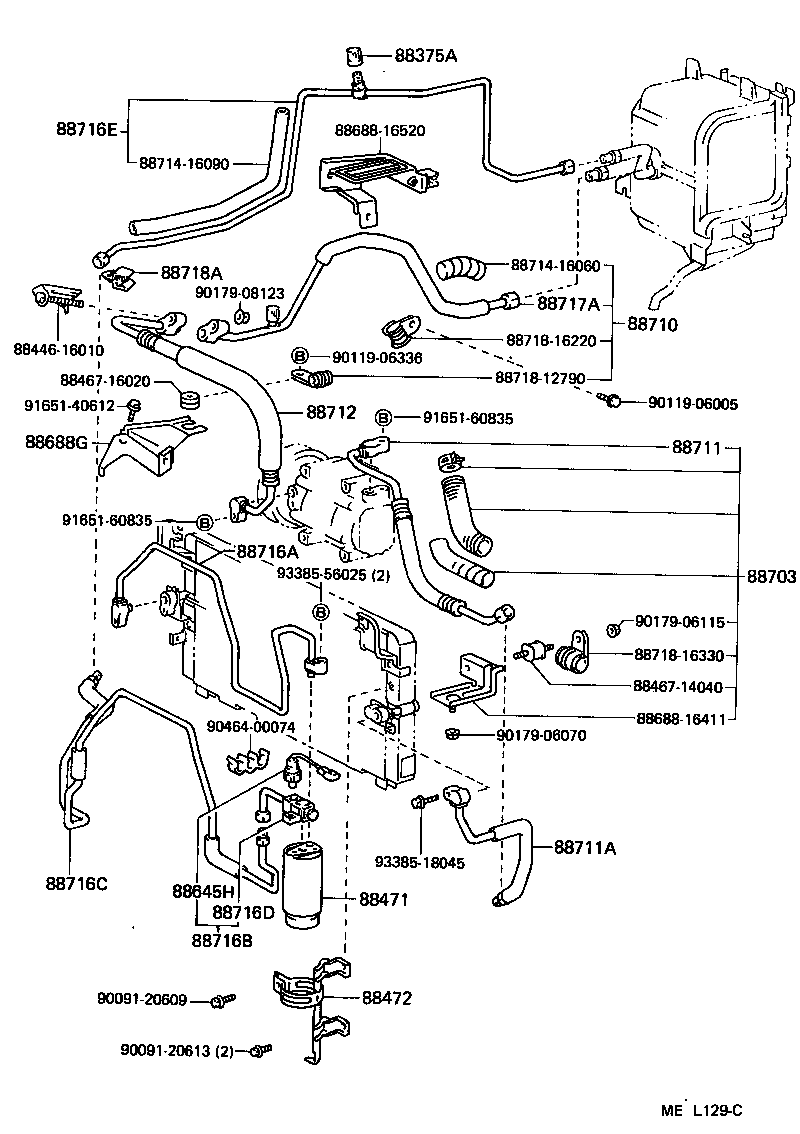

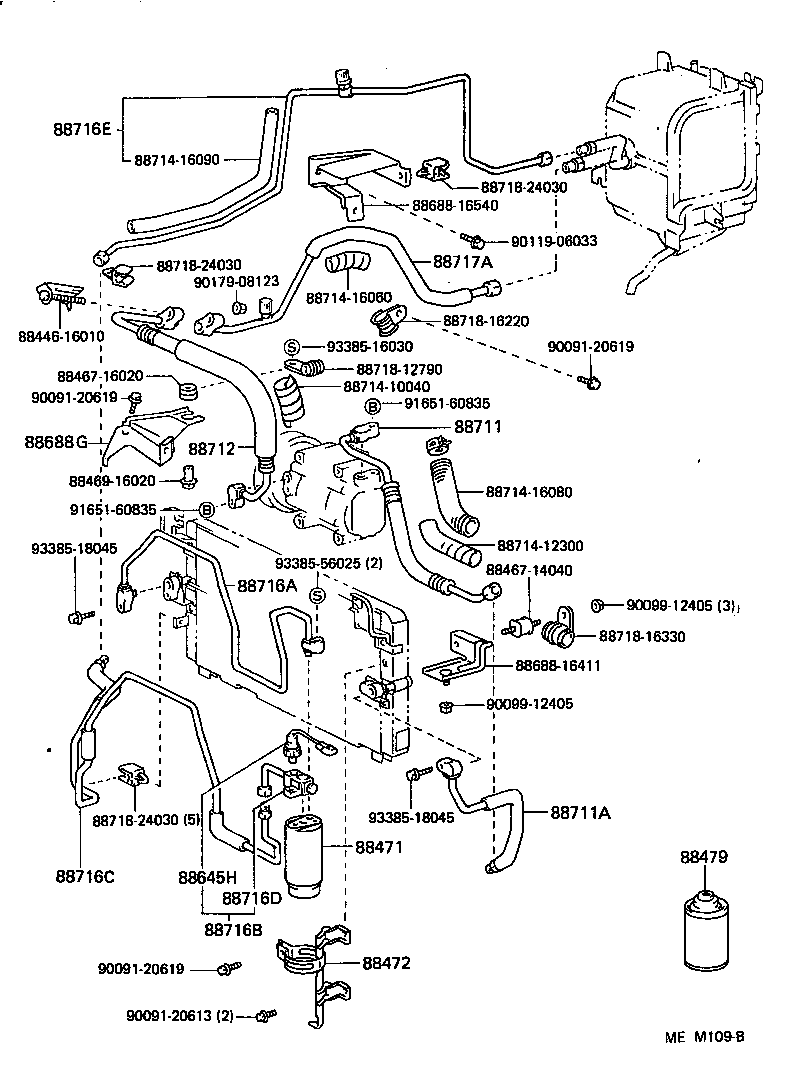

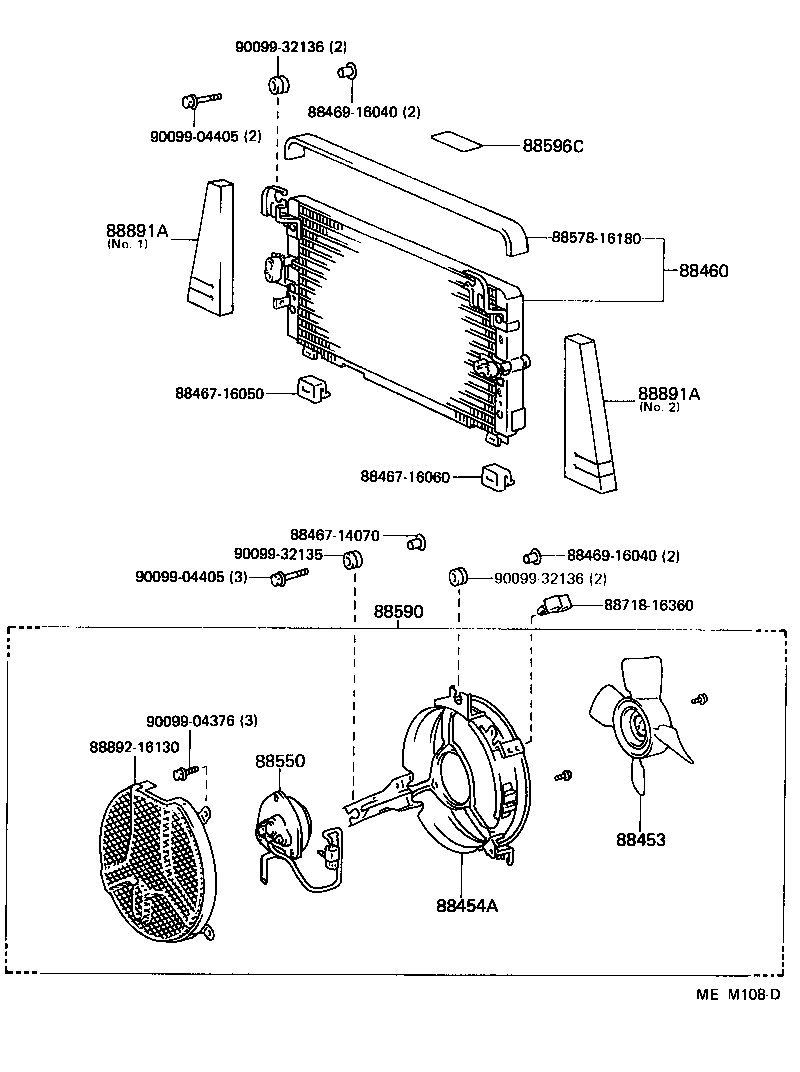

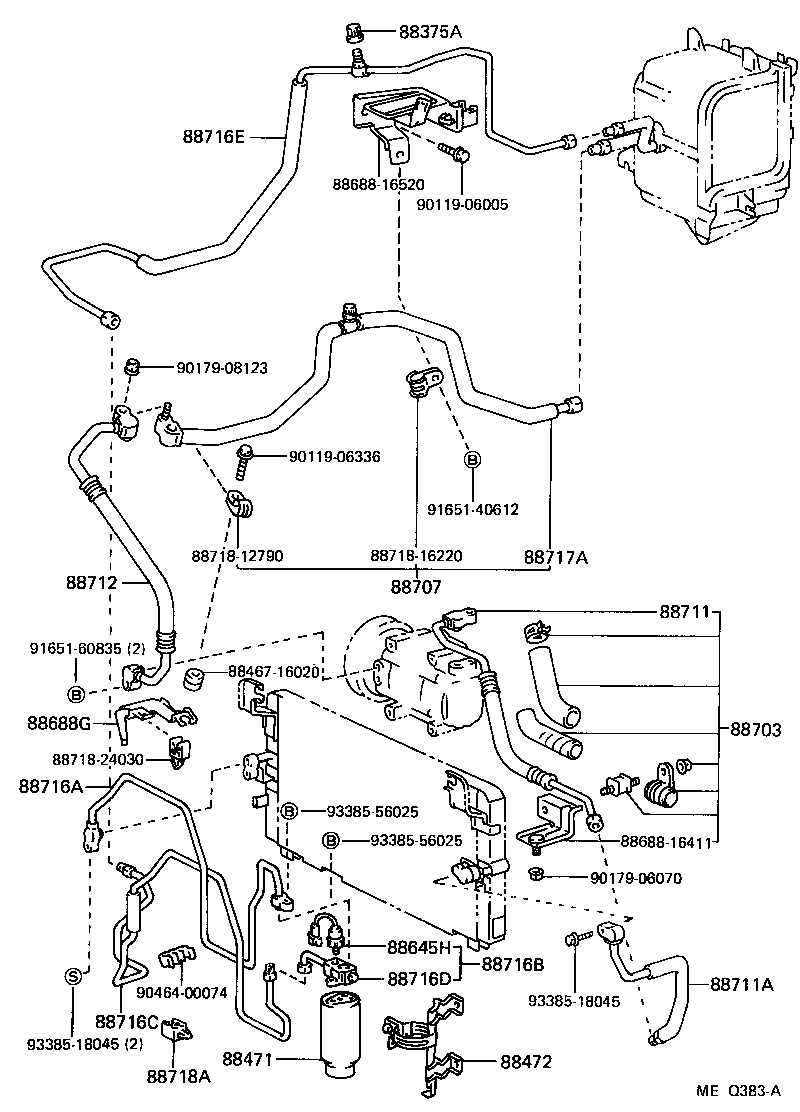

Figure MEL128B MEL128B 1988-08 → — Figure MEM108D MEM108D 1988-08 → — Figure MEL129C MEL129C 1988-08 → — Figure MEQ383A MEQ383A 1989-08 → — Figure MEM109B MEM109B 1988-08 → —

Part groups

PNCDescription
88375A Cap, Service Valve (FOR COOLER PIPE)
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88596B Plate, Caution, NO.1
88596C Plate, Caution, NO.2
88645H Switch, Pressure NO.1
88688G Bracket, Cooler Refrigerant Pipe
88703 Hose Sub-assy, Discharge
88707 Pipe Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711A Hose, Cooler Refrigerant Discharge, NO.2
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88891A Packing A (FOR COOLER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
