Toyota Tercel

1990-09 → 1994-09 · chassis EL42 · catalogue 141440 · Europe

Discontinued model Data version 1995-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

29 part groups · 3 illustrations

Illustrations

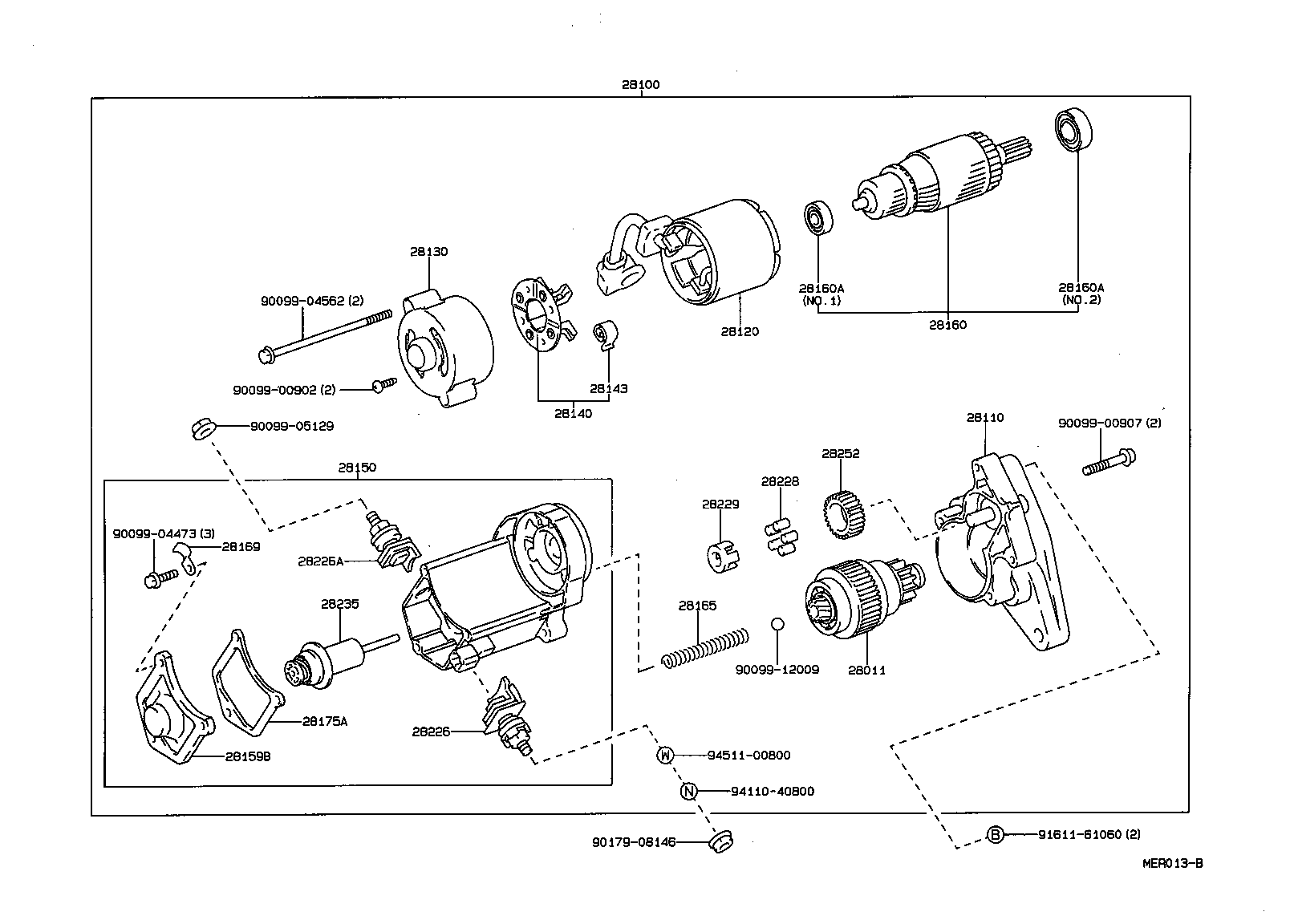

Figure MER012 MER012 1990-09 → — Figure MER012 MER012 1992-08 → — Figure MER013B MER013B 1990-09 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28100 Starter Assy
28110 Housing Assy, Starter Drive
28111 Bush(FOR STARTER HOUSING)
28113 Lever, Starter Pinion Drive
28120 Yoke Assy, Starter
28130 Frame Assy, Starter Commutator End
28131 Bush, Commutator End Frame
28133 Cover, Bearing(FOR END FRAME)
28136 Plate, Starter Lock
28138 Rubber(FOR STARTER BEARING COVER)
28140 Holder Assy, Starter Brush
28143 Spring, Starter Brush
28150 Switch Assy, Magnet Starter
28159B Cover, Magnet Switch
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28162 Spring, Starter Brake
28163 Nut OR Collar, Pinion Stop, Starter
28165 Spring, Starter Magnet Switch Return
28169 Clamp, Starter Motor Lead Wire
28175A Gasket, Magnet Switch Cover
28199 Cover, Starter
28226 Starter Kit, Battery Terminal
28226A Starter Kit, Motor Terminal
28228 Roller, Starter Idle Gear Clutch
28229 Retainer, Starter Idle Gear
28235 Plunger, Magnet Switch
28252 Gear, Starter Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
