Toyota Tercel
1990-09 → 1994-09 · chassis EL42 · catalogue 141440 · Europe
Discontinued model
Data version 1995-02

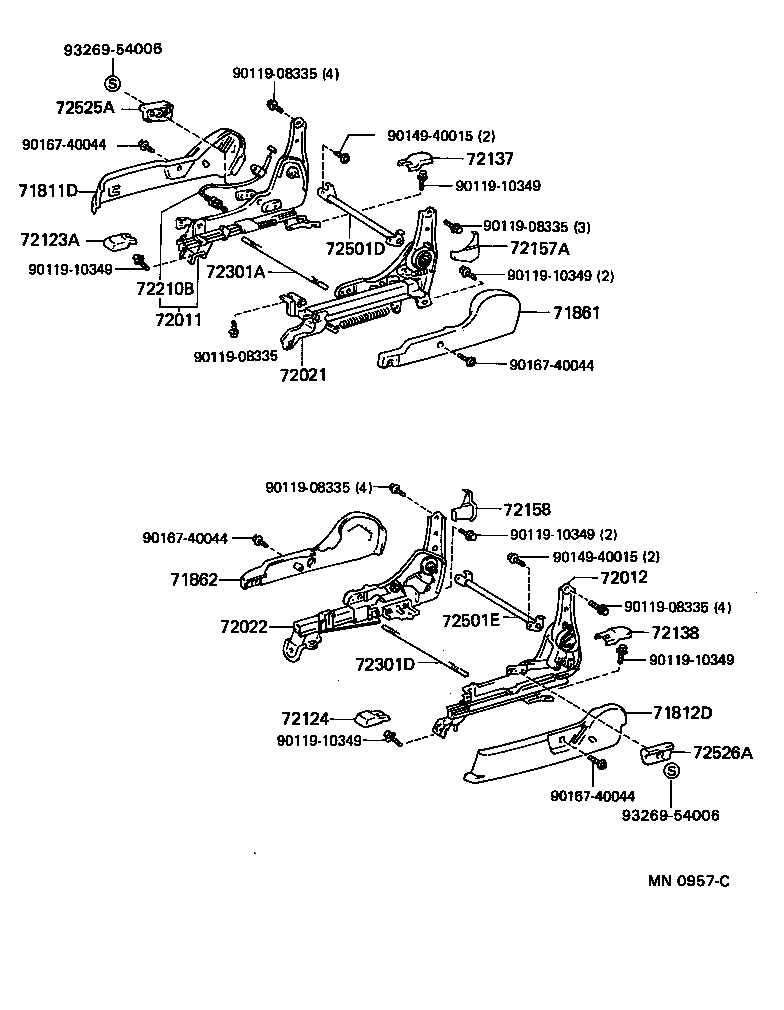

Front Seat & Seat Track
33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 71011S | Frame Sub-assy, Front Seat Cushion, RH |
| 71012S | Frame Sub-assy, Front Seat Cushion, LH |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71505 | Pad Sub-assy, Front Seatback W/Frame, RH |
| 71506 | Pad Sub-assy, Front Seatback W/Frame, LH |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71553B | Pad, Front Seatback, B |
| 71554 | Pad, Front Seatback, C |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 72011 | Adjuster Sub-assy, Front Seat, Outer RH |
| 72012 | Adjuster Sub-assy, Front Seat, Outer LH |
| 72021 | Adjuster Sub-assy, Front Seat, Inner RH |
| 72022 | Adjuster Sub-assy, Front Seat, Inner LH |
| 72123A | Cover, Seat Track Bracket, Outer Front RH |
| 72124 | Cover, Seat Track Bracket, Outer Front LH |
| 72137 | Cover, Seat Track, Outer RH |
| 72138 | Cover, Seat Track, Outer LH |
| 72157A | Cover, Seat Track Bracket, Inner RH |
| 72158 | Cover, Seat Track Bracket, Inner LH |
| 72210B | Cable Assy, Seat Track Control, RH |
| 72301A | Wire Sub-assy, Seat Track Equalizing, RH |
| 72301D | Wire Sub-assy, Seat Track Equalizing, LH |
| 72501D | Pipe Sub-assy, Reclining Connecting, RH |
| 72501E | Pipe Sub-assy, Reclining Connecting, LH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526A | Handle, Reclining Adjuster Release, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
