Toyota Tercel

1990-09 → 1994-09 · chassis EL42 · catalogue 141440 · Europe

Discontinued model Data version 1995-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

15 part groups · 2 illustrations

Illustrations

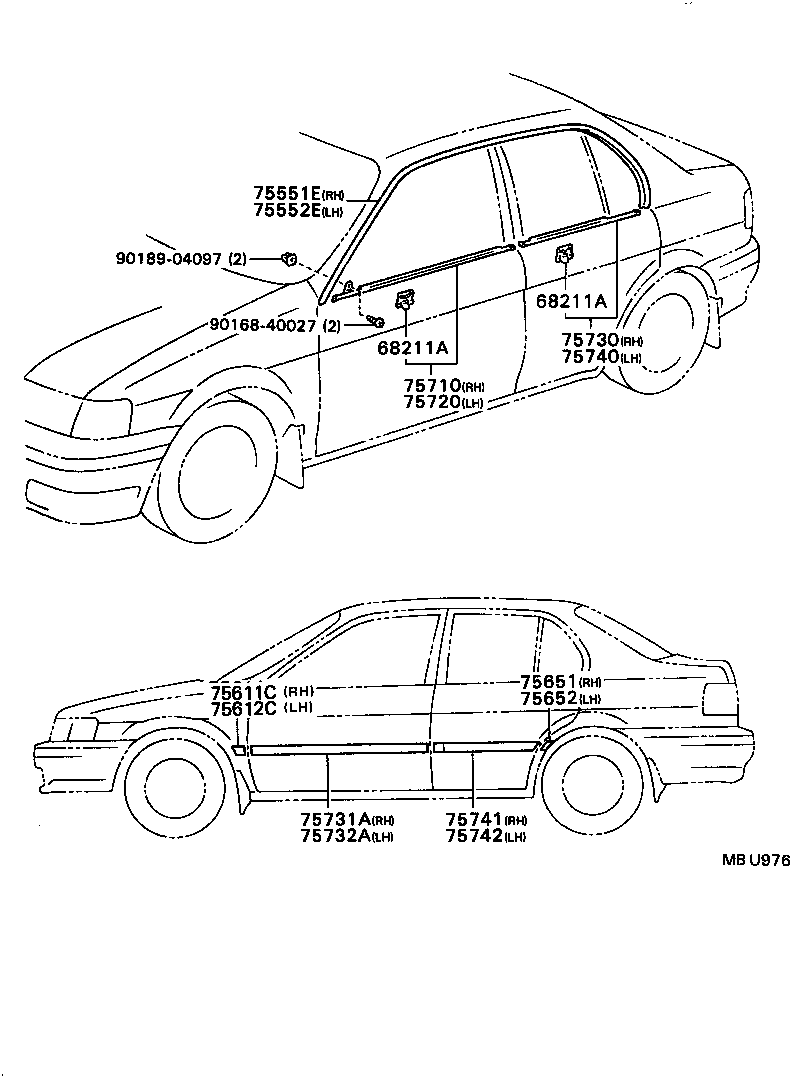

Figure MBU977 MBU977 1990-09 → — Figure MBU976 MBU976 1990-09 → —

Part groups

PNCDescription
68211A Clip, Door Belt Moulding
75551E Moulding, Roof Drip Side Finish, RH
75552E Moulding, Roof Drip Side Finish, LH
75611C Moulding, Front Fender, Outside RH
75612C Moulding, Front Fender, Outside LH
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75730 Moulding Assy, Rear Door Belt, RH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75740 Moulding Assy, Rear Door Belt, LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
