Toyota Tercel

1990-09 → 1994-09 · chassis EL42 · catalogue 141440 · Europe

Discontinued model Data version 1995-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

13 part groups · 2 illustrations

Illustrations

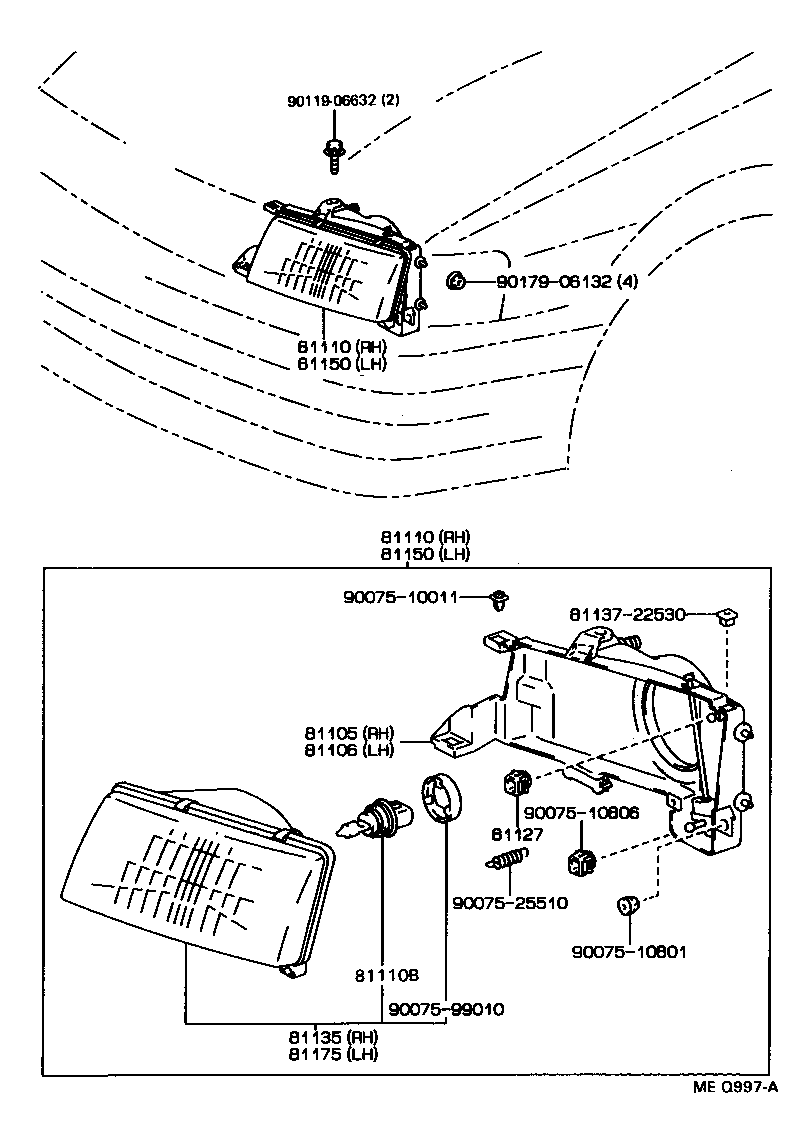

Figure MEQ998A MEQ998A 1990-09 → — Figure MEQ997A MEQ997A 1990-09 → —

Part groups

PNCDescription
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110S Sealed Beam Unit, NO.1
81111 Ring, Sealed Beam Retaining
81114 Ring, Sealed Beam Mounting, NO.2 RH
81127 Bearing, Headlamp, NO.1
81135 Unit Assy, Headlamp, RH
81150 Headlamp Assy, LH
81154 Ring, Sealed Beam Mounting, NO.2 LH
81160 Headlamp Sub-assy, LH
81175 Unit Assy, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
