Toyota Tercel

1990-09 → 1994-09 · chassis EL42 · catalogue 141440 · Europe

Discontinued model Data version 1995-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

24 part groups · 7 illustrations

Illustrations

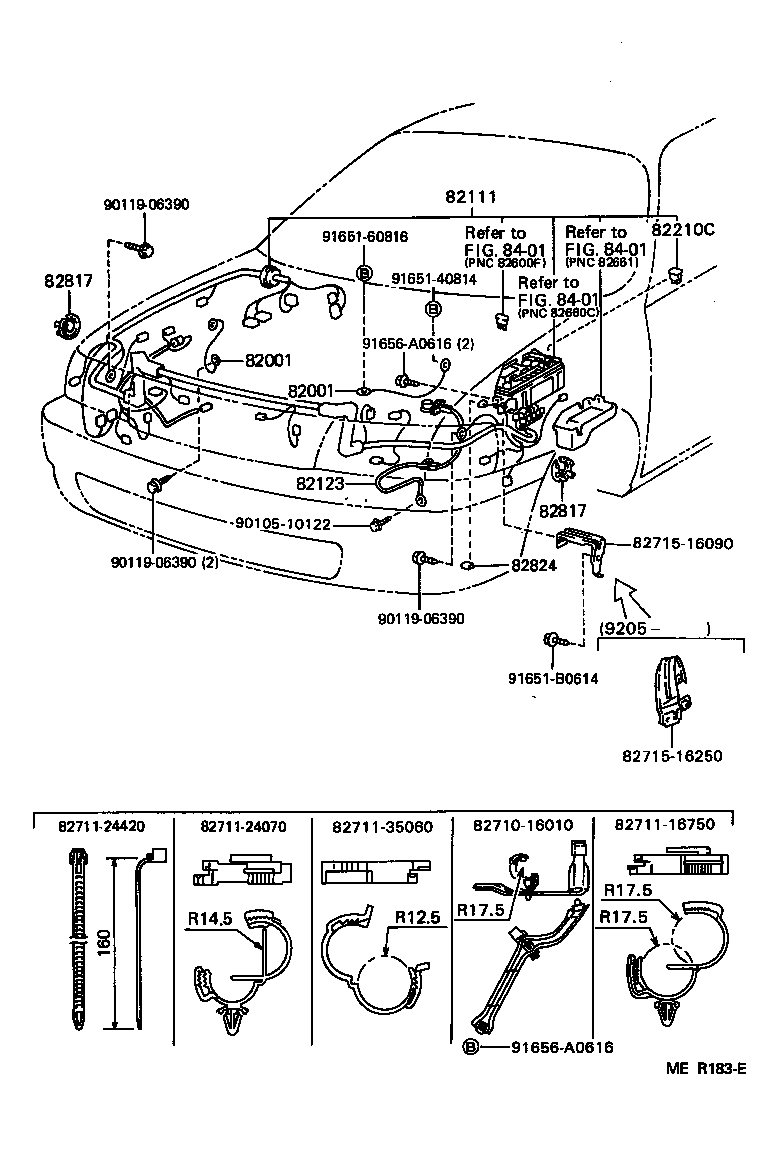

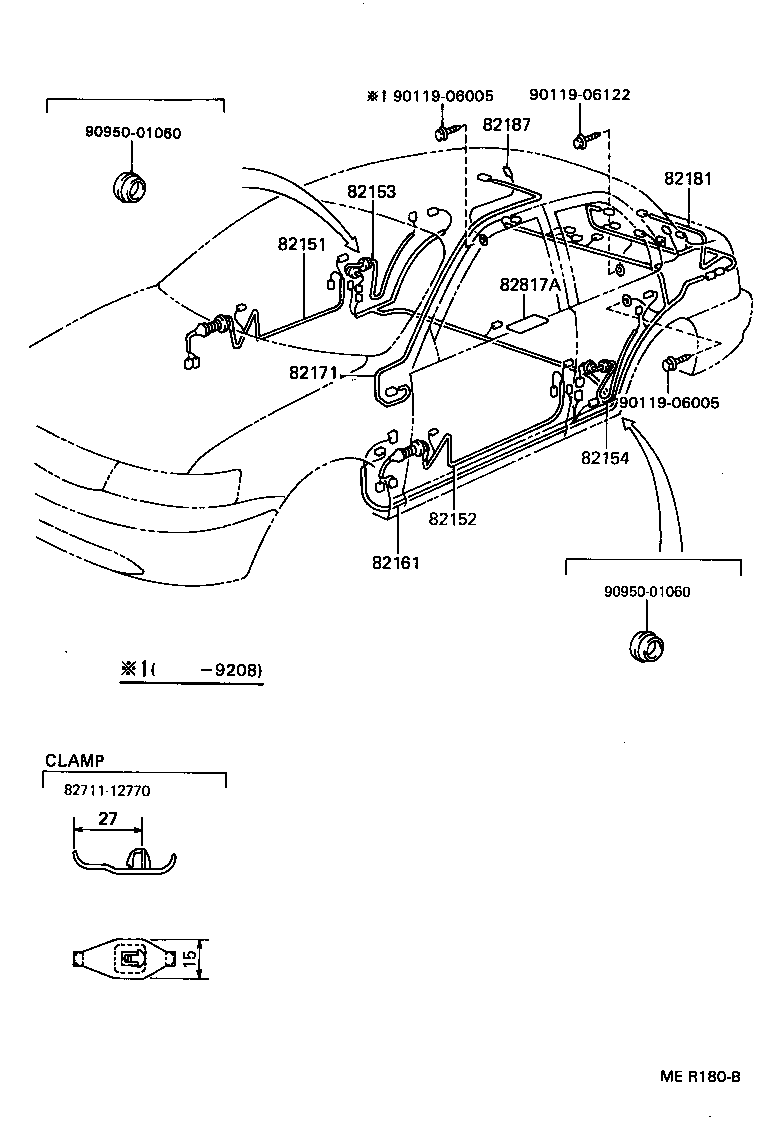

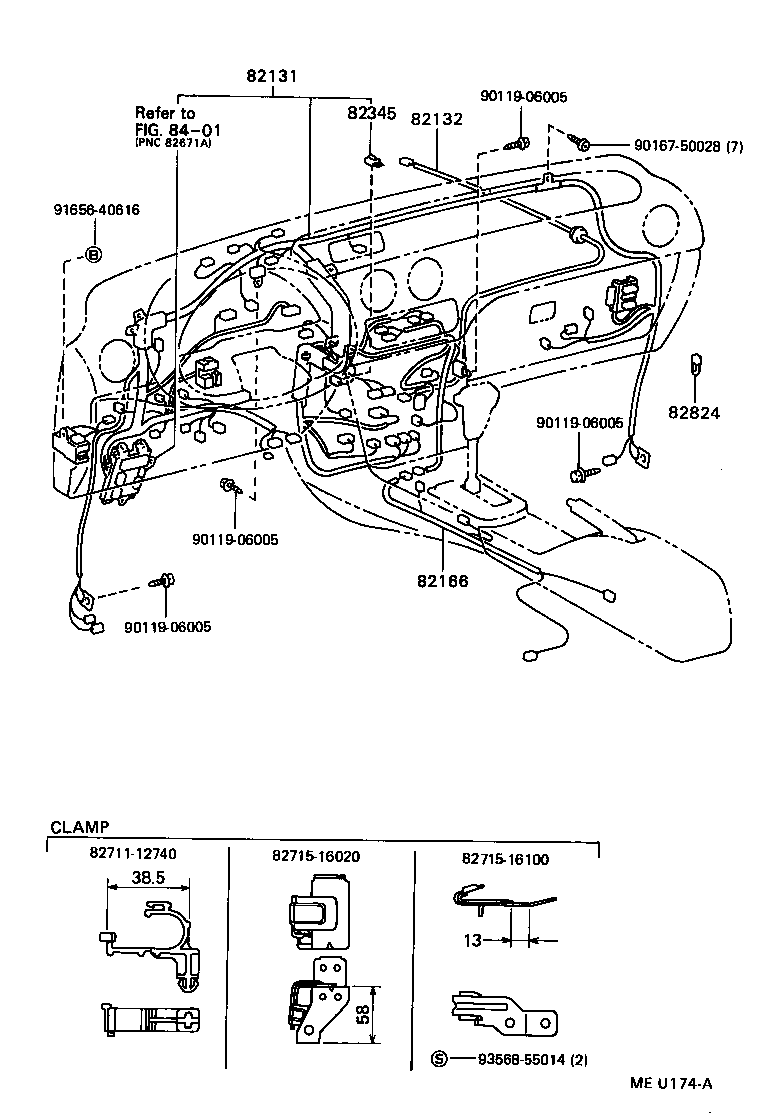

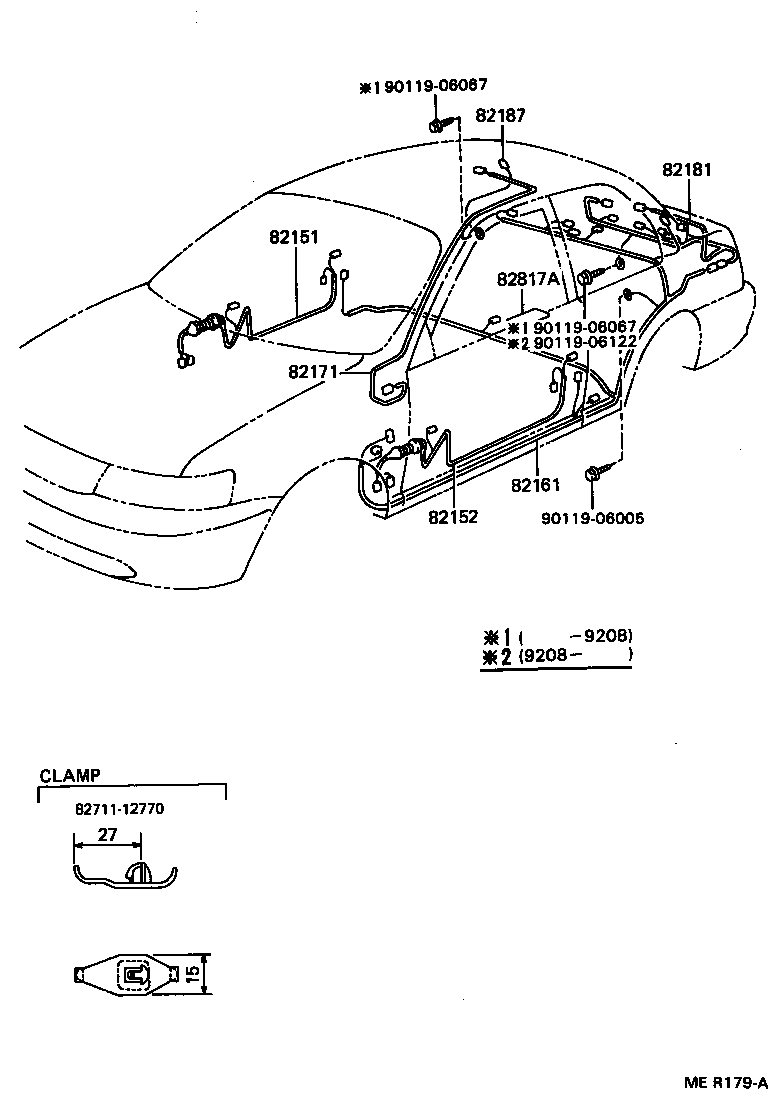

Figure MEQ919C MEQ919C 1990-09 → — Figure MER183E MER183E 1990-09 → — Figure MEU174A MEU174A 1990-09 → — Figure MER179A MER179A 1990-09 → — Figure MER180B MER180B 1990-09 → — Figure MER184 MER184 1990-09 → — Figure MEW040 MEW040 1992-08 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82166 Wire, Console Box
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82345 Diode
82620 Block Assy, Fusible Link
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82823 Cap, Terminal, NO.1
82824 Connector, Wiring Harness
82988 Wire, Airbag Repair
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
