Toyota Tercel

1990-09 → 1994-09 · chassis EL42 · catalogue 141440 · Europe

Discontinued model Data version 1995-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

77 part groups · 9 illustrations

Illustrations

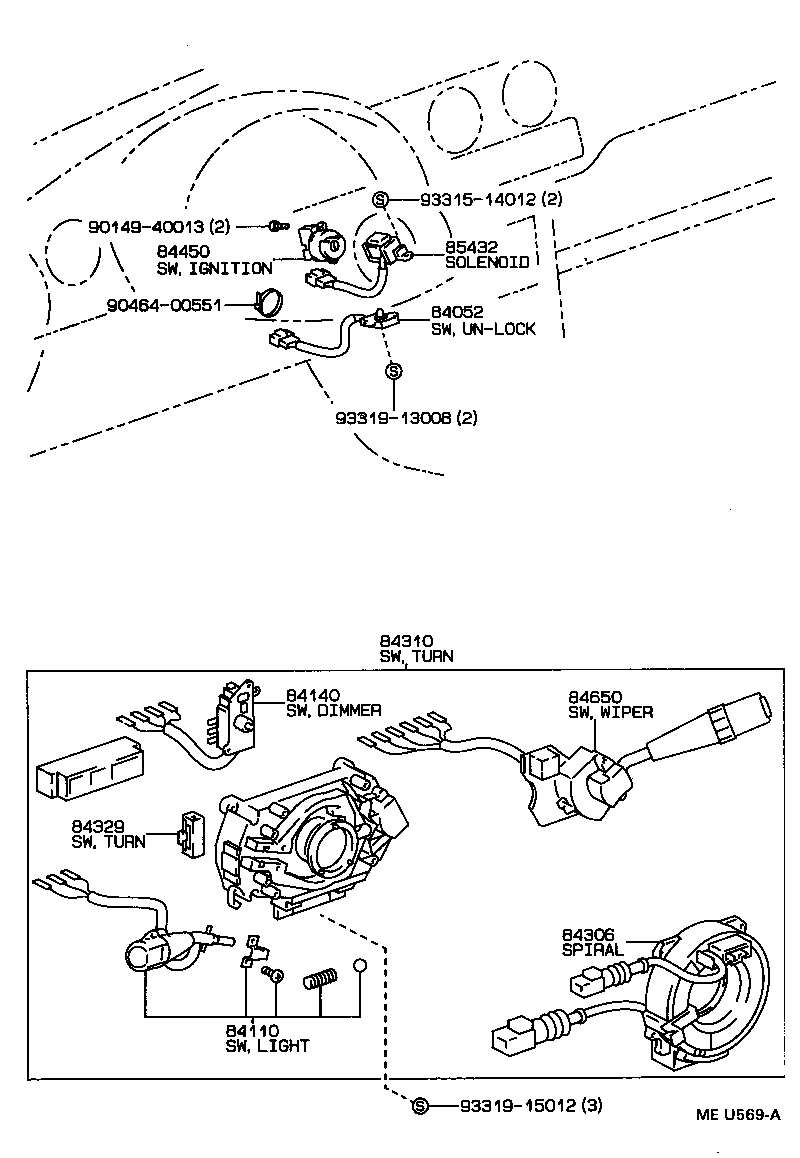

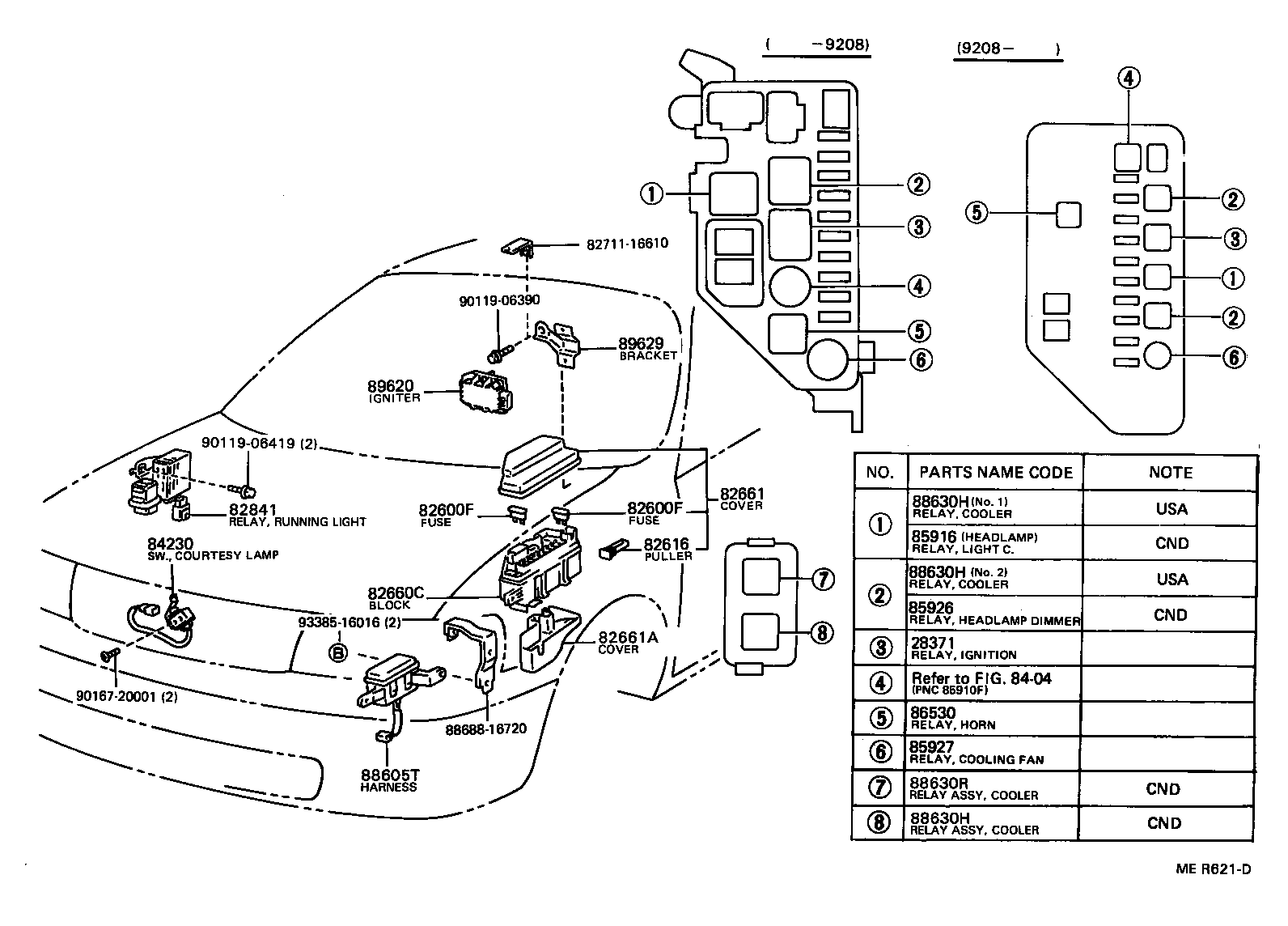

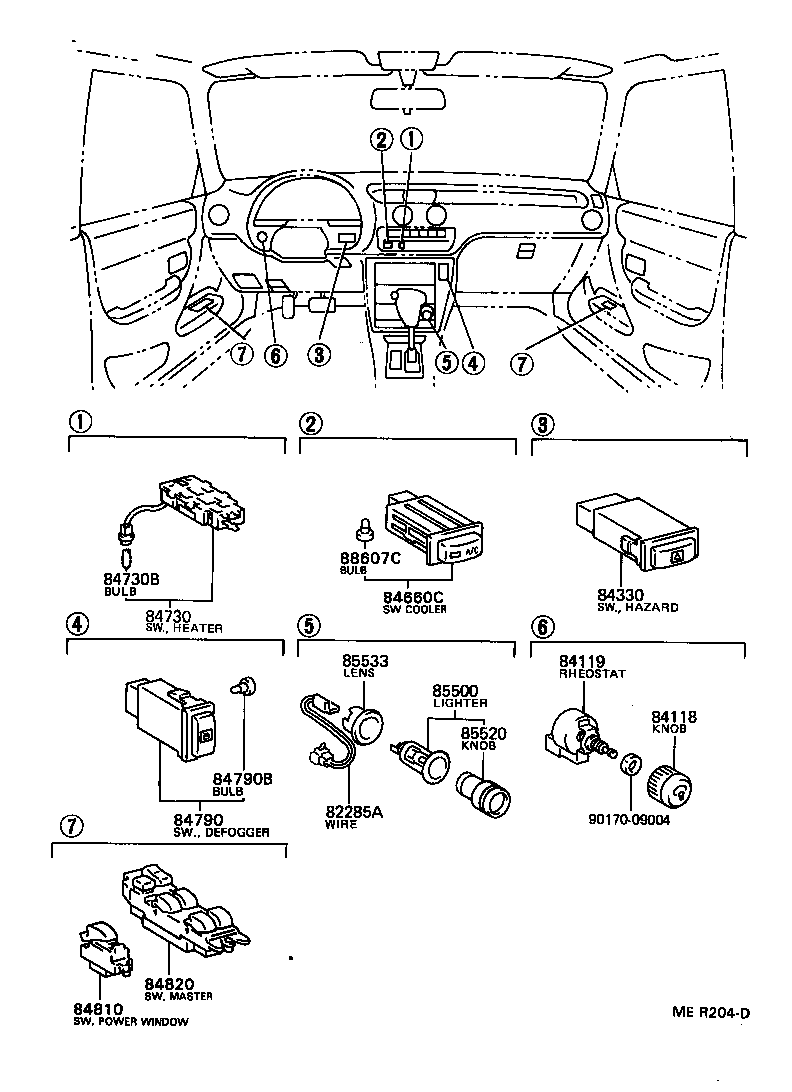

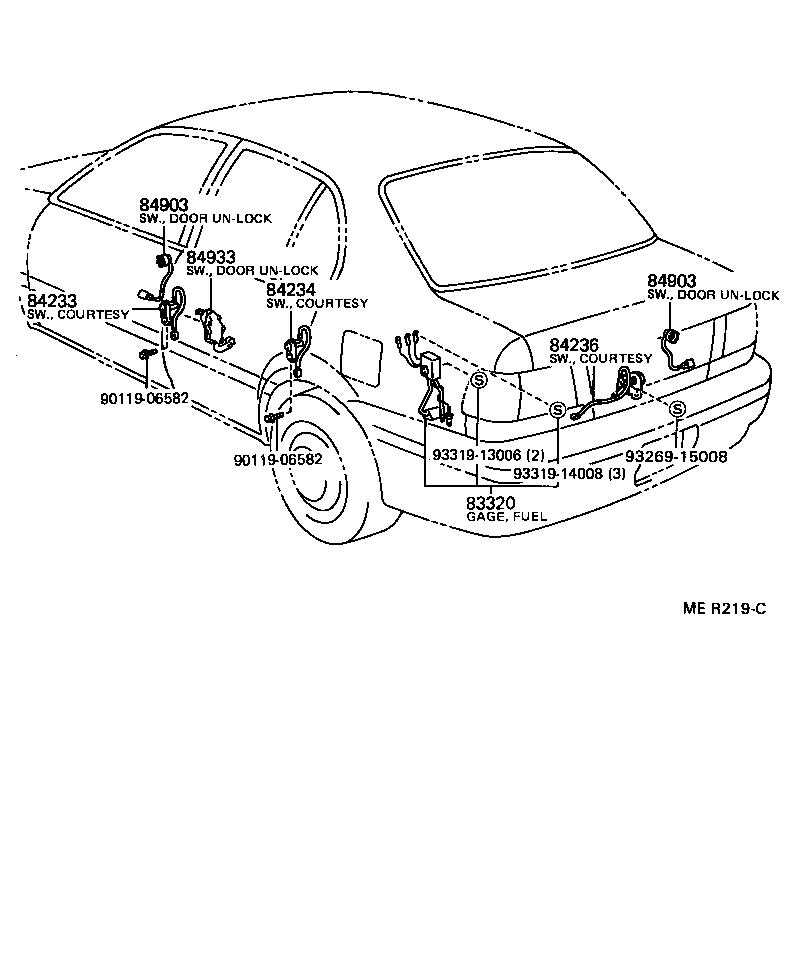

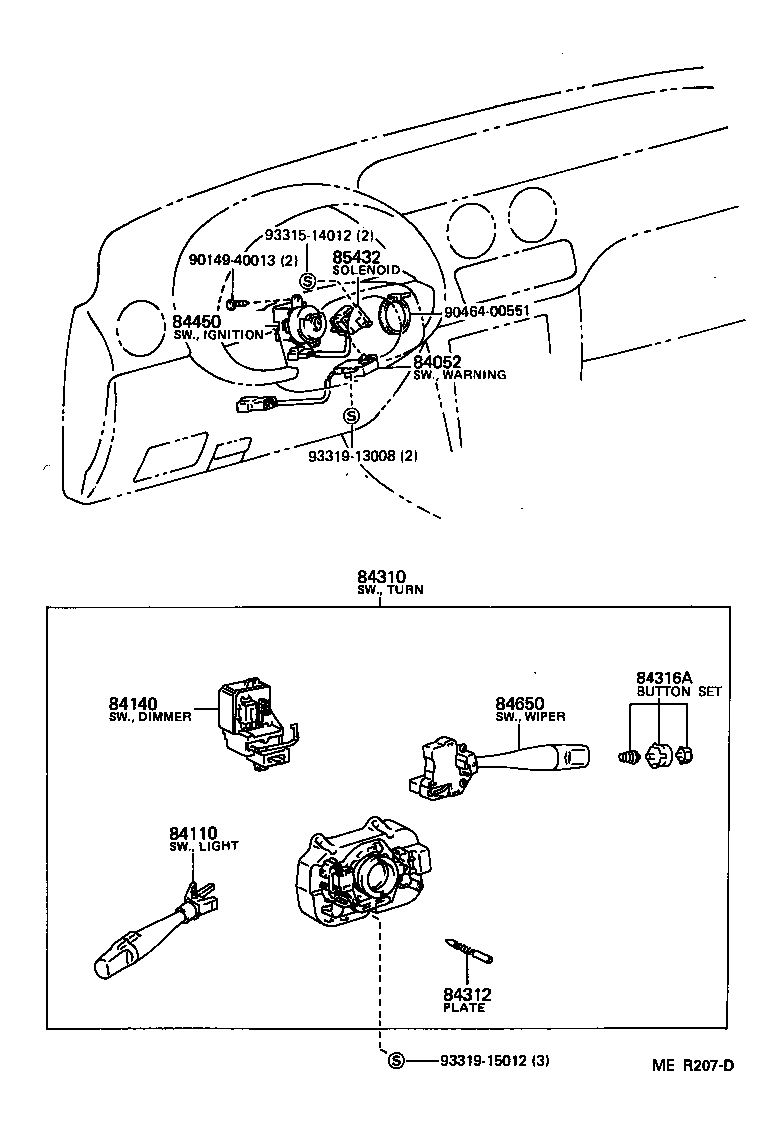

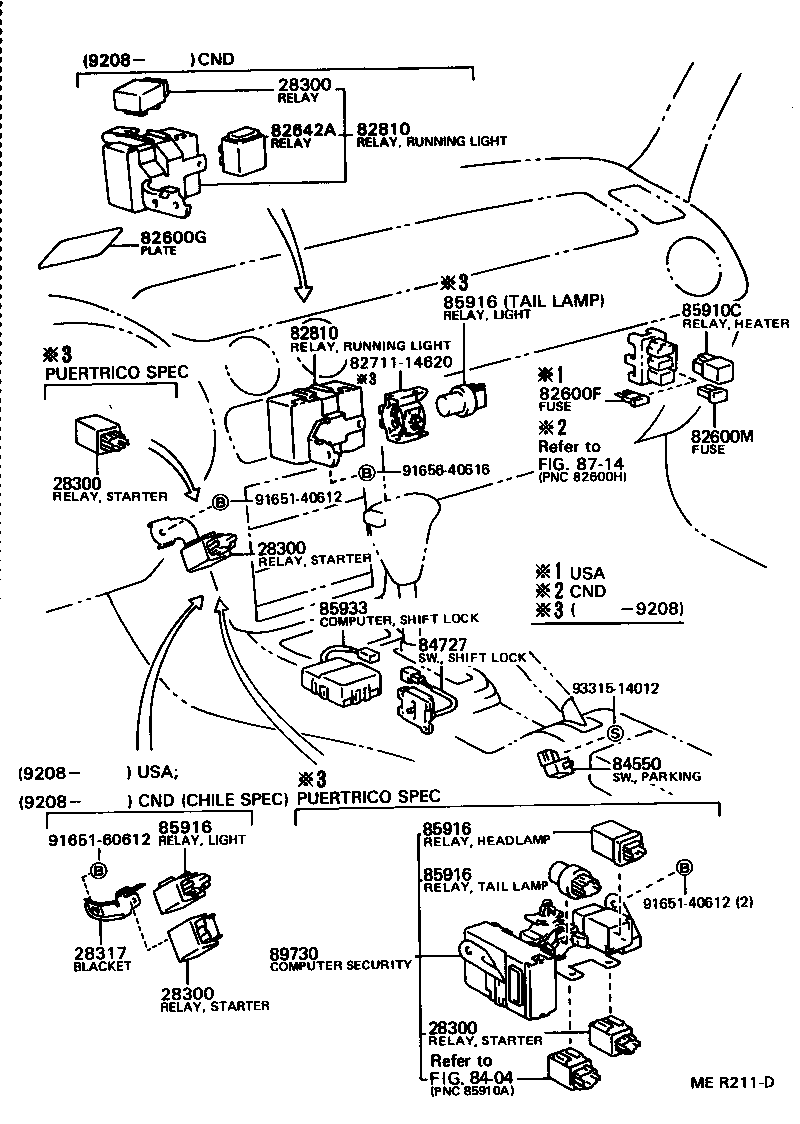

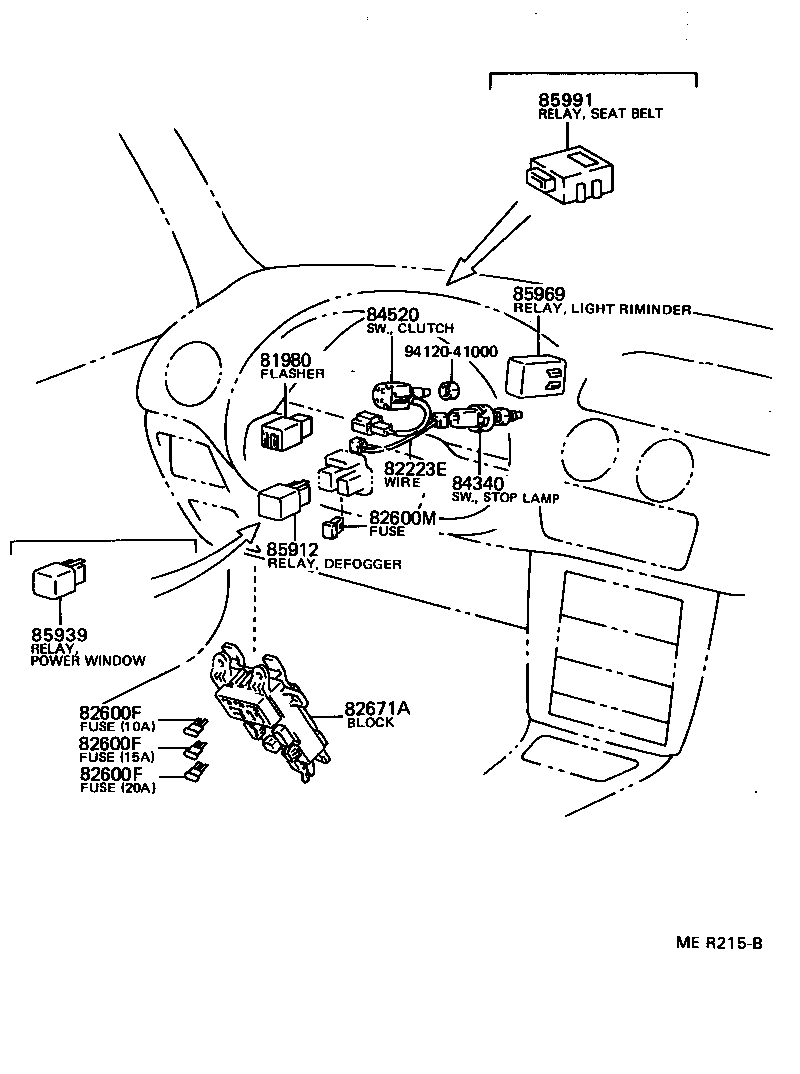

Figure MER197C MER197C 1990-09 → — Figure MER204D MER204D 1990-09 → — Figure MER621D MER621D 1990-09 → — Figure MER207D MER207D 1990-09 → 1992-08 Figure MER207D MER207D 1992-08 → — Figure MEU569A MEU569A 1992-08 → — Figure MER211D MER211D 1990-09 → — Figure MER215B MER215B 1990-09 → — Figure MER219C MER219C 1990-09 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28317 Bracket, Starter Relay
28371 Relay, Ignition, NO.1
81980 Flasher Assy, Turn Signal
82223E Wire, Clutch Start Switch
82285A Wire, Illumination
82600F Fuse, Fuse Block
82600G Plate, Caution(FOR FUSE)
82600M Fuse, Medium Current
82616 Puller, Fuse
82642A Relay, Running Light
82660C Block Assy, Relay
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
82671A Block, Junction
82810 Relay Assy, Running Light
82841 Relay, Running Light Voltage Control
83320 Gage Assy, Fuel Sender
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84110 Switch Assy, Light Control, NO.1
84118 Knob, Light Control Rheostat
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84210 Switch Assy, Back-up Lamp
84230 Switch Assy, Courtesy Lamp (FOR ENGINE ROOM)
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84236 Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM)
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84316A Button Set, Washer
84329 Switch, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84660C Switch, Cooler
84727 Switch, Shift Lock Control
84730 Switch Assy, Heater Blower
84730B Bulb, Heater Blower Switch
84790 Switch Assy, Rear Window Defogger
84790B Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84903 Switch Sub-assy, Door Un-lock
84933 Switch, Door Lock Unlock
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85520 Knob And Element Assy, Cigarette Lighter
85533 Lens, Cigarette Lighter Indicator
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85912 Relay, Defogger
85916 Relay, Light Control
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85933 Computer, Shift Lock Control
85939 Relay, Power Window
85969 Relay, Light Reminder
85991 Relay, Seat Belt Warning
86530 Relay Assy, Horn
88605T Harness Sub-assy, Air Conditioner Wiring
88607C Lamp Sub-assy, Indicator
88630H Relay Assy, Cooler
88630R Relay Assy, Cooler, NO.3
89412 Sensor, E.G.R Gas Temperature
89428 Switch, Temperature Detect, NO.2
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89620 Igniter Assy
89629 Bracket, Igniter Assy
89730 Computer Assy, Security Warning
